RRE04 Series

Automotive Standard Rectifier Diode (AEC-Q101 Qualified)

Catalog

Automotive Standard Rectifier Diode (AEC-Q101 Qualified)

Part	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Average Rectified (Io) (per Diode)	Grade	Qualification	Speed [Min]	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction

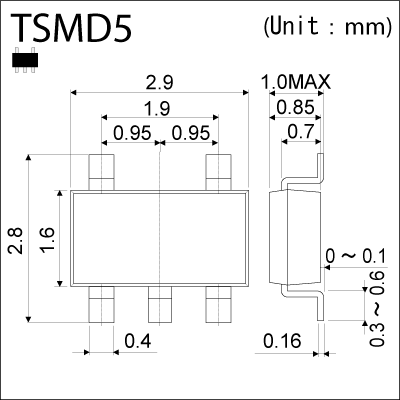

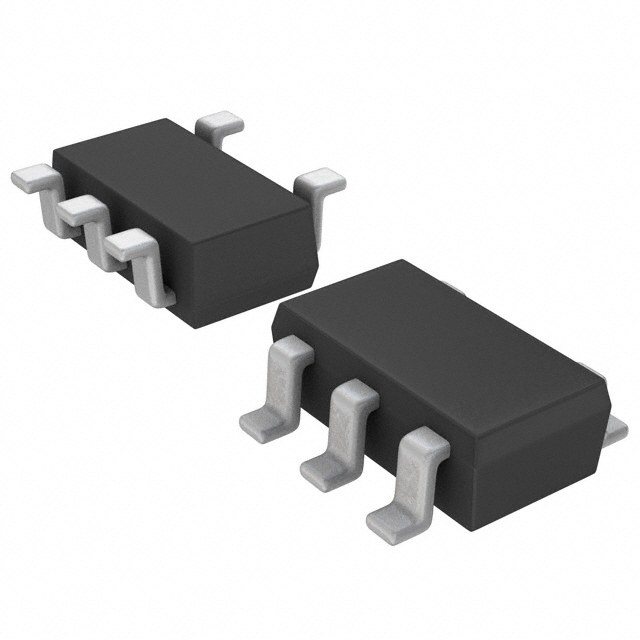

Rohm Semiconductor RRE04EA6DFHTR	Standard	600 V	SOT-23-5 Thin TSOT-23-5	400 mA	Automotive	AEC-Q101	200 mA 500 ns	2 Independent	1.1 V	150 °C	TSMD5	1 µA	Surface Mount
Rohm Semiconductor RRE04EA4DFHTR	Standard	400 V	SOT-23-5 Thin TSOT-23-5	400 mA	Automotive	AEC-Q101	200 mA 500 ns	2 Independent	1.1 V	150 °C	TSMD5	1 µA	Surface Mount
Rohm Semiconductor RRE04EA6DTR	Standard	600 V	SOT-23-5 Thin TSOT-23-5	400 mA			200 mA 500 ns	2 Independent	1.1 V		TSMD5	1 µA	Surface Mount	150 ¯C
Rohm Semiconductor RRE04EA4DTR	Standard	400 V	SOT-23-5 Thin TSOT-23-5	400 mA			200 mA 500 ns	2 Independent	1.1 V	150 °C	TSMD5	1 µA	Surface Mount

Automotive Standard Rectifier Diode (AEC-Q101 Qualified)

ROHM's Standard Rectifier Diodes are highly reliable almighty devices to cover all applications including consumers/industrials/automotive.
