R12506 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

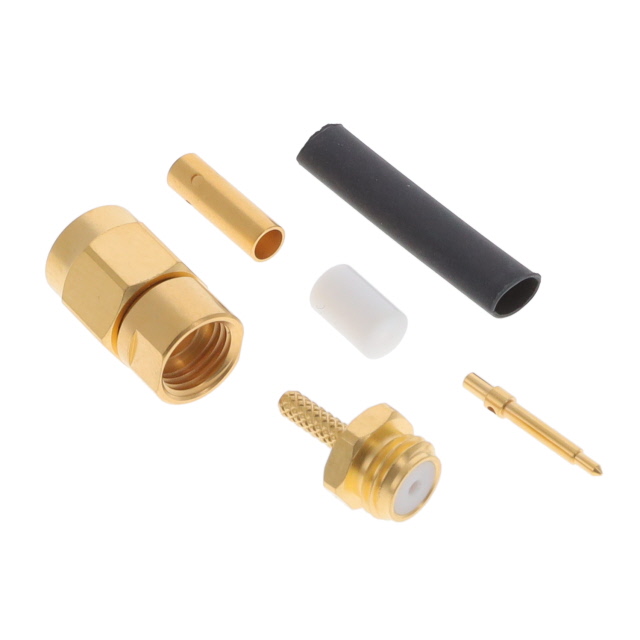

SMA / STRAIGHT PLUG CRIMP OR SOL
| Part | Body Finish | Center Contact Plating | Mating Cycles | Voltage Rating | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Number of Ports | Cable Group | Cable Group | Contact Termination | Connector Type | Fastening Type | Impedance | Center Contact Material | Connector Style | Shield Termination | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 500 | 250 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 12.4 GHz | 1 | 196 | RG-178 | Crimp Solder | Plug Male Pin | Threaded | 50 Ohms | Brass | SMA | Clamp | Gold | Free Hanging (In-Line) |
 Radiall USA, Inc. | Gold | Gold | 500 | 170 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 12.4 GHz | 1 | 196 | RG-178 | Crimp Solder | Plug Male Pin | Threaded | 50 Ohms | Brass | SMA | Clamp | Gold | Free Hanging (In-Line) |
