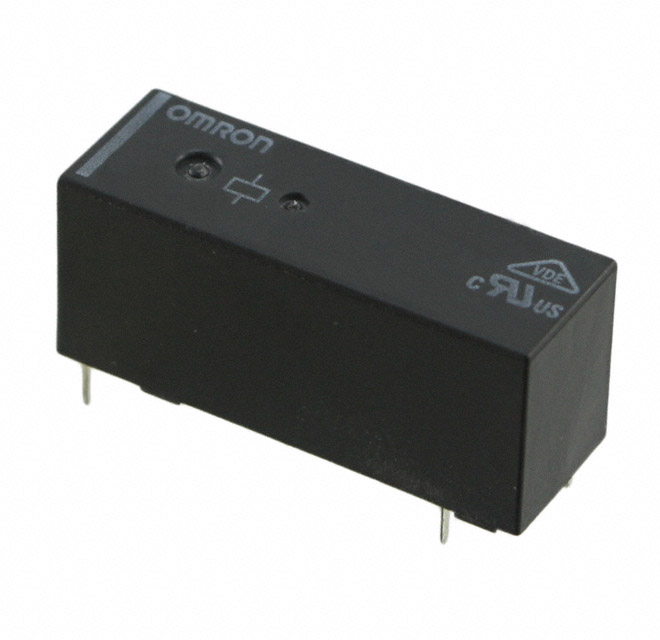

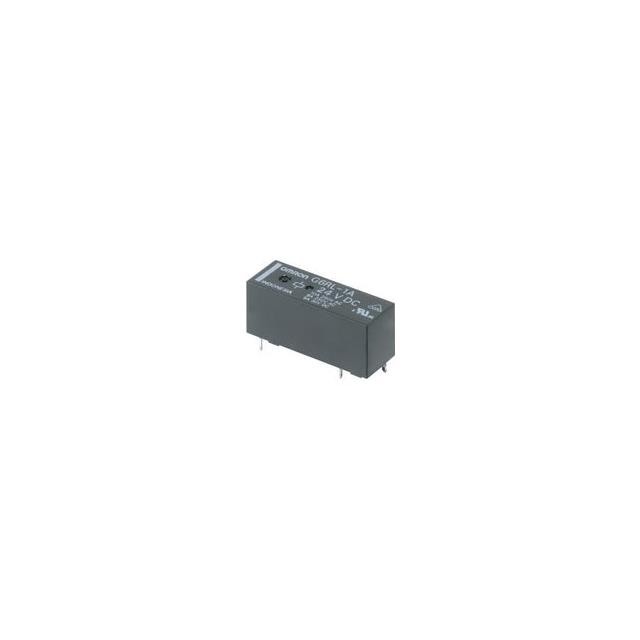

G6RL-14 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 8A 48V
| Part | Switching Voltage | Termination Style | Load - Max Switching | Must Operate Voltage | Contact Form | Coil Current | Coil Type | Approval Agency | Contact Material | Coil Resistance | Seal Rating | Relay Type | Must Release Voltage | Coil Voltage | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Rating (Current) | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 250 VAC | PC Pin | 2000 VA | 33.6 VDC | SPDT (1 Form C) | 5 mA | Non Latching | cURus VDE | Silver Tin Indium (AgSnIn) | 9.6 kOhms | Sealed - Fully | General Purpose | 4.8 VDC | 48 VDC | 5 ms | 85 °C | -40 °C | Through Hole | 8 A | 10 ms |
Omron Electronics Inc-EMC Div | 250 VAC | PC Pin | 2000 VA | 16.8 VDC | SPDT (1 Form C) | 9.2 mA | Non Latching | cURus VDE | Silver Tin Indium (AgSnIn) | 2.62 kOhms | Sealed - Fully | General Purpose | 2.4 VDC | 24 VDC | 5 ms | 85 °C | -40 °C | Through Hole | 8 A | 10 ms |
 Omron Electronics Inc-EMC Div | 250 VAC | PC Pin | 4.2 VDC | SPDT (1 Form C) | 36.7 mA | Non Latching | Silver Tin Indium (AgSnIn) | 163 Ohms | Sealed - Fully | General Purpose | 0.6 VDC | 5 ms | 85 °C | -40 °C | Through Hole | 8 A | 10 ms | |||
Omron Electronics Inc-EMC Div | 250 VAC | PC Pin | 2000 VA | 8.4 VDC | SPDT (1 Form C) | 18.3 mA | Non Latching | cURus VDE | Silver Tin Indium (AgSnIn) | 654 Ohms | Sealed - Fully | General Purpose | 1.2 VDC | 12 VDC | 5 ms | 85 °C | -40 °C | Through Hole | 8 A | 10 ms |
Omron Electronics Inc-EMC Div | 250 VAC | PC Pin | 2000 VA | 4.2 VDC | SPDT (1 Form C) | 36.7 mA | Non Latching | cURus VDE | Silver Tin Indium (AgSnIn) | 163 Ohms | Sealed - Fully | General Purpose | 0.6 VDC | 5 ms | 85 °C | -40 °C | Through Hole | 8 A | 10 ms | |
Omron Electronics Inc-EMC Div | 250 VAC | PC Pin | 2000 VA | 19.2 VDC | SPDT (1 Form C) | 12.6 mA | Non Latching | cURus VDE | Silver Tin Indium (AgSnIn) | 1.9 kOhms | Sealed - Fully | General Purpose | 2.4 VDC | 24 VDC | 5 ms | 85 °C | -40 °C | Through Hole | 8 A | 10 ms |
