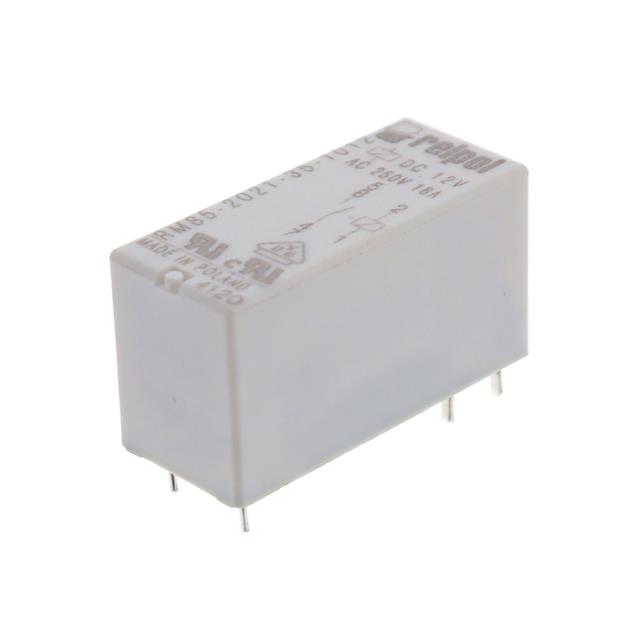

RM85-2021 Series
Manufacturer: Altech Corporation
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 110V
| Part | Coil Resistance | Switching Voltage AC (Max) | Seal Rating | Coil Type | Contact Rating (Current) | Coil Voltage | Operate Time | Load - Max Switching (Apparent Power) | Termination Style | Mounting Type | Form A Count | Contact Form | Release Time | Relay Type | Approval Agency | Coil Current | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 8.9 kOhms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 110 V | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 12.4 mA | Silver Nickel (AgNi) | -40 °C | 70 °C | 88 V | |
Altech Corporation | 7500 Ohms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 60 VDC | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 8 mA | Silver Nickel (AgNi) | -40 °C | 85 °C | 42 VDC | |
Altech Corporation | 35.5 kOhms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 220 V | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 6.2 mA | Silver Nickel (AgNi) | -40 °C | 70 °C | 176 VAC | |
Altech Corporation | 5.7 kOhms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 48 V | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 8.4 mA | Silver Nickel (AgNi) | -40 °C | 85 °C | 33.6 VAC | |
 Altech Corporation | 360 Ohms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 12 VAC | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 33 mA | Silver Nickel (AgNi) | -40 °C | 85 °C | 30.6 VDC | 8.4 VAC |
Altech Corporation | 90 Ohms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 6 VAC | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 66.7 mA | Silver Nickel (AgNi) | -40 °C | 85 °C | 4.2 VAC | |
Altech Corporation | 200 Ohms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 9 VDC | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 45 mA | Silver Nickel (AgNi) | -40 °C | 85 °C | 6.3 VDC | |
Altech Corporation | 10.2 kOhms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 120 V | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 11.8 mA | Silver Nickel (AgNi) | -40 °C | 70 °C | 96 V | |
Altech Corporation | 25.2 kOhms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 110 V | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 4.4 mA | Silver Nickel (AgNi) | -40 °C | 85 °C | 77 VAC | |
Altech Corporation | 38.5 kOhms | 440 VAC | Flux Protection Sealed | Non Latching | 16 A | 230 VDC | 7 ms | 7040 VA | PC Pin | Through Hole | 1 | SPST-NO | 3 ms | General Purpose | CCC CE CSA UR VDE | 6 mA | Silver Nickel (AgNi) | -40 °C | 70 °C | 184 VDC |
