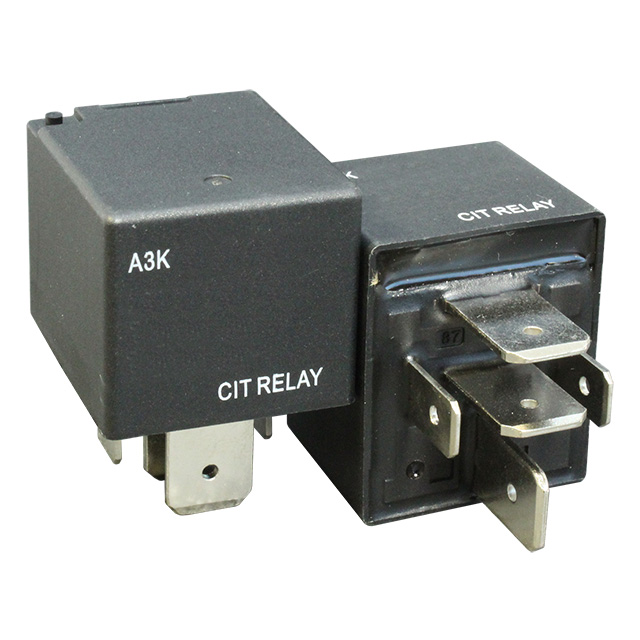

A3K1 Series

Catalog

RELAY AUTOMOTIVE SPST 150A 12V

Part	Coil Resistance	Coil Power	Contact Material	Release Time	Contact Form	Must Operate Voltage	Coil Voltage	Must Release Voltage	Coil Current	Coil Type	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Switching Voltage [Max]	Contact Rating (Current)	Features
CIT Relay and Switch A3K1ASP12VDC1.6D	90 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPST-NO (1 Form A)	7.8 VDC	12 VDC	1.2 VDC	133.3 mA	Non Latching	15 ms	125 °C	-40 C	PC Pin	Through Hole	145 VDC	80 A
CIT Relay and Switch A3K1CSQ24VDC1.6R	360 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPDT (1 Form C)		24 VDC	2.4 VDC	66.7 mA	Non Latching	15 ms	125 °C	-40 C	Plug In Quick Connect	Socketable	145 VDC	80 A	Magnetic Blowout Resistor Sealed - Fully
CIT Relay and Switch A3K1ASP24VDC1.6D	360 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPST-NO (1 Form A)		24 VDC	2.4 VDC	66.7 mA	Non Latching	15 ms	125 °C	-40 C	PC Pin	Through Hole	145 VDC	80 A
CIT Relay and Switch A3K1CSP24VDC1.6D	360 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPDT (1 Form C)		24 VDC	2.4 VDC	66.7 mA	Non Latching	15 ms	125 °C	-40 C	PC Pin	Through Hole	145 VDC	80 A
CIT Relay and Switch A3K1CSQ12VDC1.6R	90 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPDT (1 Form C)	7.8 VDC	12 VDC	1.2 VDC	133.3 mA	Non Latching	15 ms	125 °C	-40 C	Plug In Quick Connect	Socketable	145 VDC	80 A	Magnetic Blowout Resistor Sealed - Fully
CIT Relay and Switch A3K1ASQ24VDC1.6D	360 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPST-NO (1 Form A)		24 VDC	2.4 VDC	66.7 mA	Non Latching	15 ms	125 °C	-40 C	Plug In Quick Connect	Socketable	145 VDC	80 A
CIT Relay and Switch A3K1ASP12VDC1.6	90 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPST-NO (1 Form A)	7.8 VDC	12 VDC	1.2 VDC	133.3 mA	Non Latching	15 ms	125 °C	-40 C	PC Pin	Through Hole	145 VDC	80 A	Magnetic Blowout Sealed - Fully
CIT Relay and Switch A3K1ACQ24VDC1.6R	360 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPST-NO (1 Form A)		24 VDC	2.4 VDC	66.7 mA	Non Latching	15 ms	125 °C	-40 C	Plug In Quick Connect	Socketable	145 VDC	80 A	Magnetic Blowout Resistor
CIT Relay and Switch A3K1CSQ24VDC1.6D	360 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPDT (1 Form C)		24 VDC	2.4 VDC	66.7 mA	Non Latching	15 ms	125 °C	-40 C	Plug In Quick Connect	Socketable	145 VDC	80 A
CIT Relay and Switch A3K1CSP12VDC1.6D	90 Ohms	1.6 W	Silver Tin Oxide (AgSnO)	15 ms	SPDT (1 Form C)	7.8 VDC	12 VDC	1.2 VDC	133.3 mA	Non Latching	15 ms	125 °C	-40 C	PC Pin	Through Hole	145 VDC	80 A
