KD04 Series

Catalog

TERM BLOCK PLUG 4POS STR 3.5MM

Part	Number of Positions	Mounting Type	Color	Number of Levels	Type	Contact Mating Finish	Wire Strip Length [Min]	Wire Strip Length [Max]	Positions Per Level	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Housing Material	Pitch [x]	Pitch [x]	Contact Material	Voltage - UL	Material Flammability Rating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Features
Amphenol Anytek KD041050A000G	4	Free Hanging (In-Line)	Green	2	Plug Female Sockets	Tin	9 mm	10 mm	2	Push-In Spring Screwless - Leg Spring	24 AWG	16 AWG	Thermoplastic	3.5 mm	0.138 in	Phosphor Bronze	160 V	UL94 V-0	16.1 mm	0.634 in	-40 °C	115 °C	5.5 A
Amphenol Anytek KD0430520000G	4	Free Hanging (In-Line)	Green	1	Plug Female Sockets	Tin	9 mm	10 mm	4	Push-In Spring Screwless - Leg Spring	24 AWG	16 AWG	Thermoplastic	3.81 mm	0.15 in	Phosphor Bronze	300 V	UL94 V-0			-40 °C	115 °C	5.5 A	Latch Lock

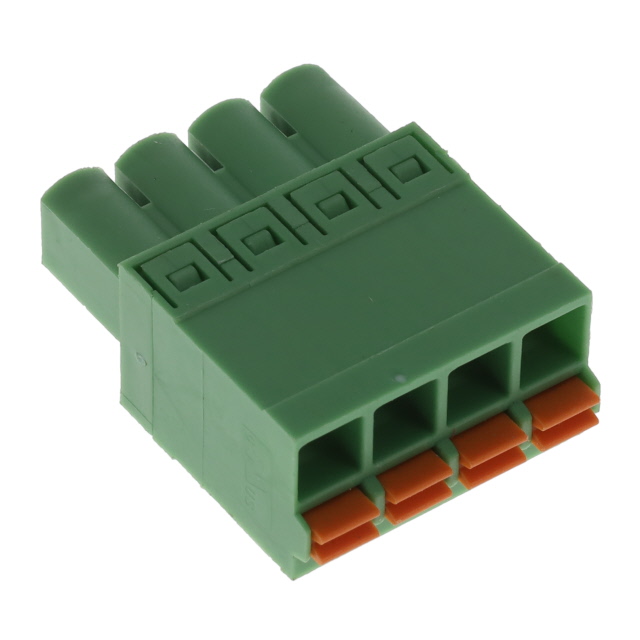

Amphenol Anytek KD0470500000G	4	Free Hanging (In-Line)	Green	1	Plug Female Sockets	Tin	11 mm	12 mm	4	Push-In Spring Screwless - Leg Spring	24 AWG	14 AWG	Thermoplastic	5 mm	0.197 in	Phosphor Bronze	300 V	UL94 V-0	10.9 mm	0.429 in	-40 °C	115 °C	12 A
Amphenol Anytek KD041051A000G	4	Free Hanging (In-Line)	Green	2	Plug Female Sockets	Tin	9 mm	10 mm	2	Push-In Spring Screwless - Leg Spring	24 AWG	16 AWG	Thermoplastic	3.5 mm	0.138 in	Phosphor Bronze	160 V	UL94 V-0	16.1 mm	0.634 in	-40 °C	115 °C	5.5 A

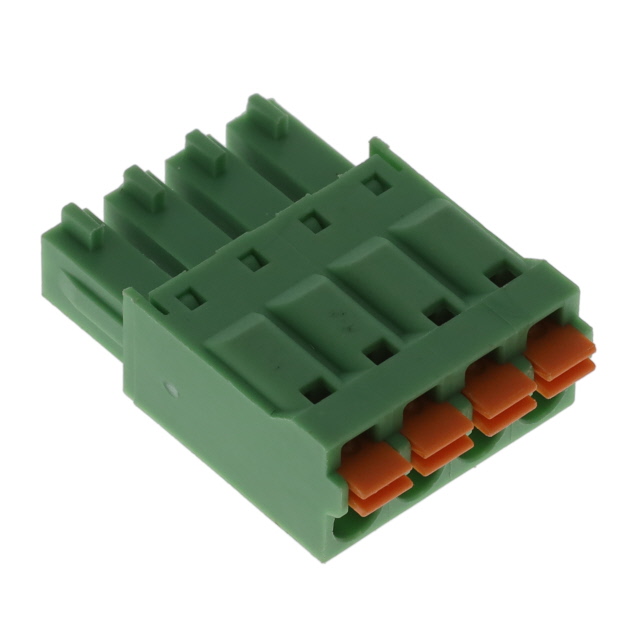

Amphenol Anytek KD0430500000G	4	Free Hanging (In-Line)	Green	1	Plug Female Sockets	Tin	9 mm	10 mm	4	Push-In Spring Screwless - Leg Spring	24 AWG	16 AWG	Thermoplastic	3.81 mm	0.15 in	Phosphor Bronze	300 V	UL94 V-0			-40 °C	115 °C	5.5 A
