151053 Series
Manufacturer: Molex
Beta
⌘K
11.00MM PITCH EXTREME GUARDIAN POWER VERTICAL PLUG PCB HEADER, 2.30MM PCB THICKNESS, GOLD (AU) PLATING, 4 CIRCUITS
| Part | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Fastening Type | Material - Insulation | Contact Finish | Contact Material | Number of Positions | Number of Rows | Pitch | Pitch | Termination | Mounting Type | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

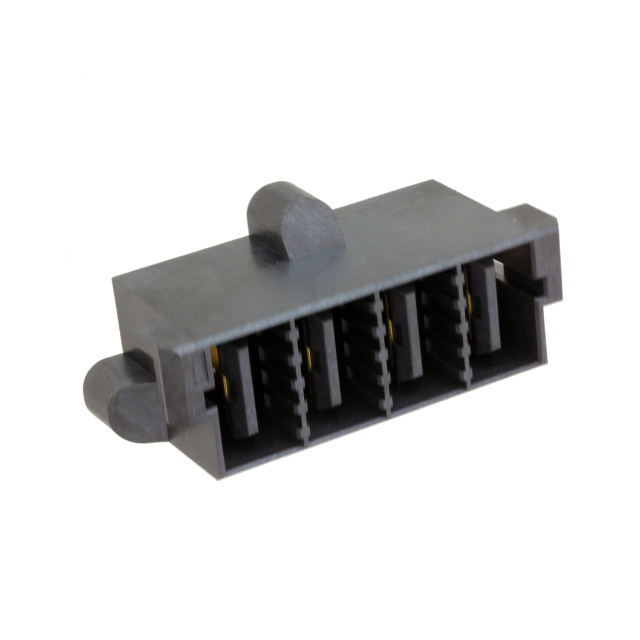

 Molex | 600 V | 80 A | -40 C | 105 ░C | 30 Áin | 0.76 Ám | Locking Ramp | Liquid Crystal Polymer (LCP) | Gold | Copper Alloy | 4 | 1 | 11 mm | 0.433 in | Solder | Through Hole | Black | Plug Male Blades |

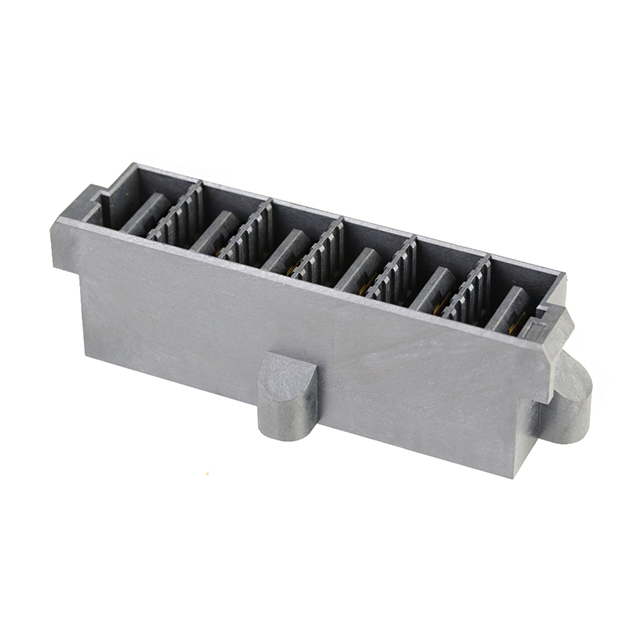

 Molex | 600 V | 80 A | -40 C | 105 ░C | 30 Áin | 0.76 Ám | Locking Ramp | Liquid Crystal Polymer (LCP) | Gold | Copper Alloy | 6 | 1 | 11 mm | 0.433 in | Press-Fit | Through Hole | Black | Plug Male Blades |
 Molex | 600 V | 80 A | -40 C | 105 ░C | 30 Áin | 0.76 Ám | Locking Ramp | Liquid Crystal Polymer (LCP) | Gold | Copper Alloy | 5 | 1 | 11 mm | 0.433 in | Press-Fit | Through Hole | Black | Plug Male Blades |
