857-017 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 17POS 0.156

...

Part	Termination Rows	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Read Out	Contact Type	Pitch	Pitch	Contact Finish	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Material	Card Type	Number of Rows	Number of Positions [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]
EDAC Inc. 857-017-505-101	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder Eyelet(s)	125 °C	-40 C	Female	Single	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Single Edge	1

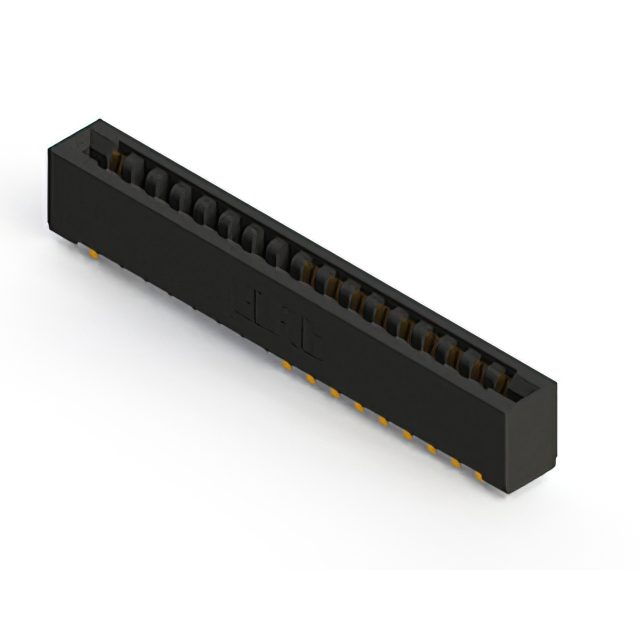

EDAC Inc. 857-017-558-101	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	125 °C	-40 C	Female	Single	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Single Edge	1

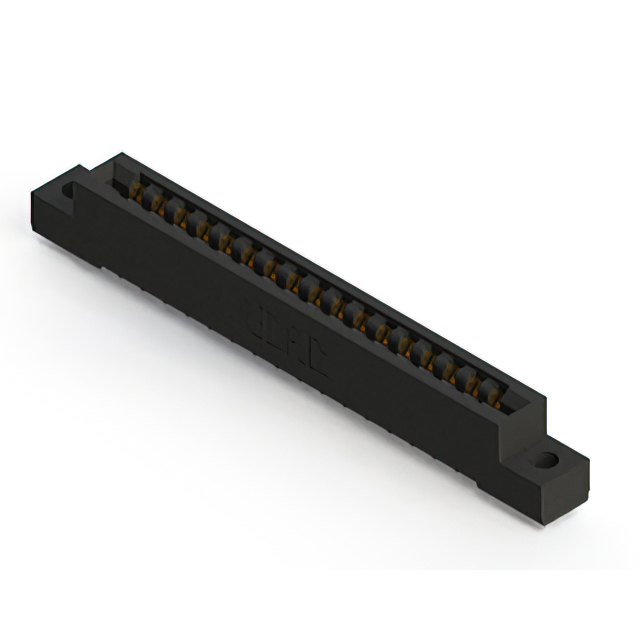

EDAC Inc. 857-017-554-102	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	125 °C	-40 C	Female	Dual	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Dual Edge		34	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2
EDAC Inc. 857-017-547-107	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Wire Wrap	125 °C	-40 C	Female	Single	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Single Edge	1		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-017-521-101	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	125 °C	-40 C	Female	Dual	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Dual Edge		34				2

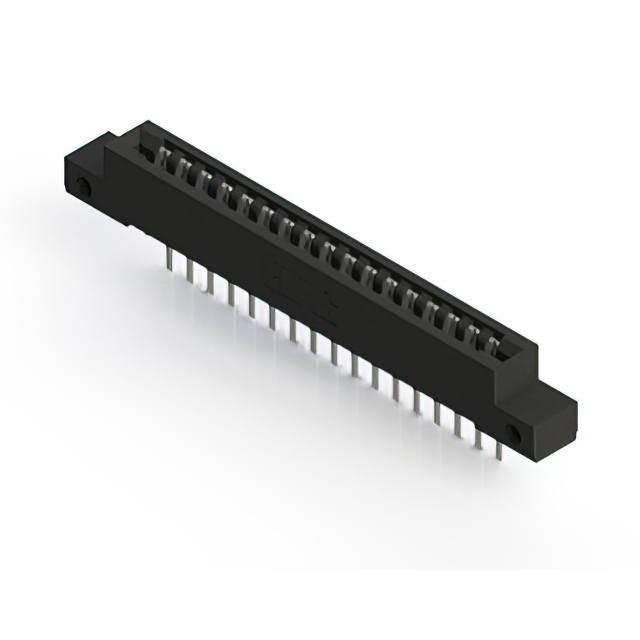

EDAC Inc. 857-017-447-112	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Wire Wrap	125 °C	-40 C	Female	Single	Semi Bellows	3.96 mm	0.156 in	Tin	17			Black	Copper Alloy	Non Specified - Single Edge	1		Side Mount Opening Unthreaded	3.25 mm	0.128 "

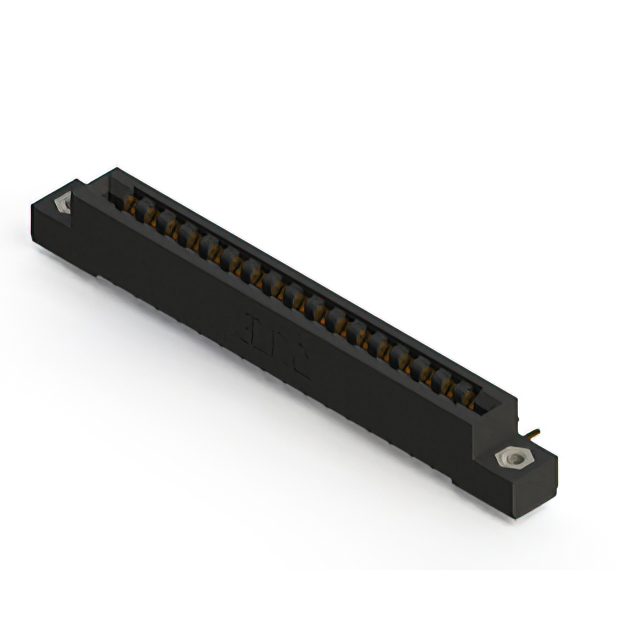

EDAC Inc. 857-017-557-107	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	125 °C	-40 C	Female	Dual	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Dual Edge		34	Flush Mount M3 Threaded Insert Top Opening			2
EDAC Inc. 857-017-553-107	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	125 °C	-40 C	Female	Dual	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Dual Edge		34	Flush Mount M3 Threaded Insert Top Opening			2
EDAC Inc. 857-017-459-112	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	Solder	125 °C	-40 C	Female	Single	Semi Bellows	3.96 mm	0.156 in	Tin	17			Black	Copper Alloy	Non Specified - Single Edge	1		Side Mount Opening Unthreaded	3.25 mm	0.128 "

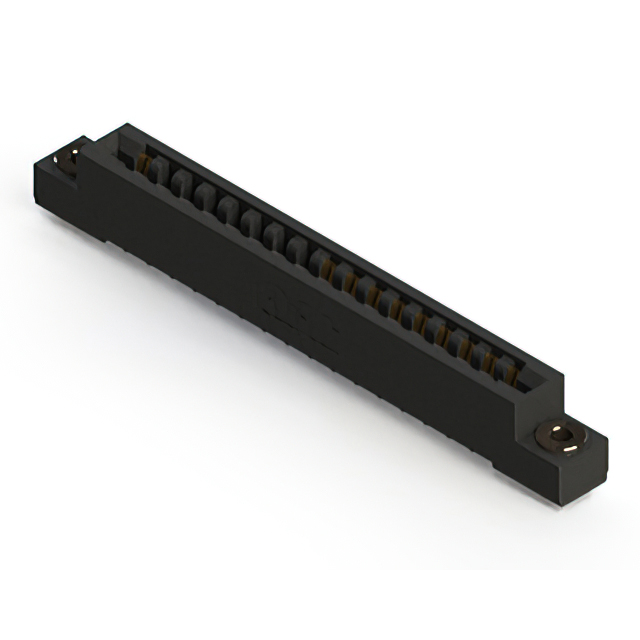

EDAC Inc. 857-017-531-103	1	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Solder	125 °C	-40 C	Female	Single	Semi Bellows	3.96 mm	0.156 in	Gold	17	0.25 Ám	10 Áin	Black	Copper Alloy	Non Specified - Single Edge	1		Floating Bobbin Flush Mount	2.95 mm	0.116 "
