13C1000 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE SENSOR 0PSI TO 1000PSI SEALED GAGE 4-PIN

Part	Maximum Pressure	Maximum Pressure	Output Type	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Accuracy	Package / Case	Operating Pressure	Operating Pressure	Termination Style	Output [Max]	Output [Min]	Port Style	Port Size	Port Size	Voltage - Supply	Port Size
Honeywell Sensing and Productivity Solutions 13C1000PS1L	3000 PSI	20684.27 kPa	Wheatstone Bridge	Sealed Gauge	125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	No Port
Honeywell Sensing and Productivity Solutions 13C1000PA6K	3000 PSI	20684.27 kPa	Wheatstone Bridge		125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	Threaded	0.4375 in 11.11 mm	Male	15 VDC
Honeywell Sensing and Productivity Solutions 13C1000PS6K	3000 PSI	20684.27 kPa	Wheatstone Bridge	Sealed Gauge	125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	Threaded	0.4375 in 11.11 mm	Male	15 VDC

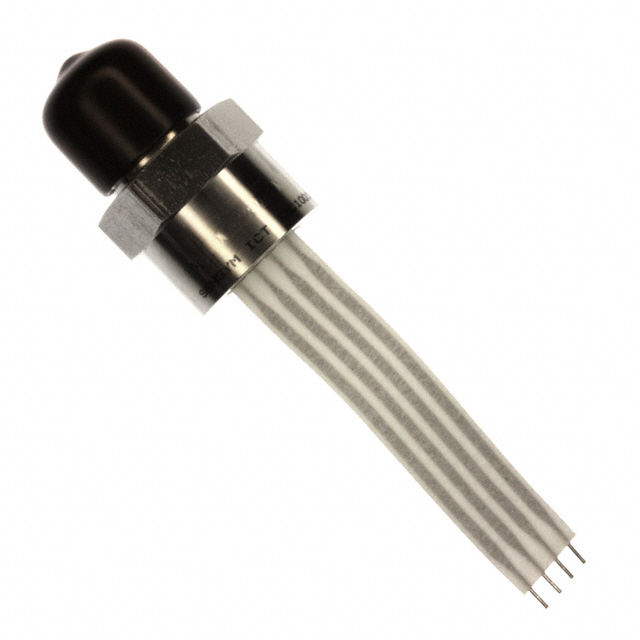

Honeywell Sensing and Productivity Solutions 13C1000PS5K									Cylinder Threaded			Cable with Connector
Honeywell Sensing and Productivity Solutions 13C1000PA1K	3000 PSI	20684.27 kPa	Wheatstone Bridge		125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	No Port			15 VDC
Honeywell Sensing and Productivity Solutions 13C1000PS4K	3000 PSI	20684.27 kPa	Wheatstone Bridge	Sealed Gauge	125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	Threaded	0.125 in	Male NPT	15 VDC	3.18 mm
Honeywell Sensing and Productivity Solutions 13C1000PS5L	3000 PSI	20684.27 kPa	Wheatstone Bridge	Sealed Gauge	125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	Threaded	0.25 "	Male NPT		0.25 in
Honeywell Sensing and Productivity Solutions 13C1000PA1L	3000 PSI	20684.27 kPa	Wheatstone Bridge		125 °C	-40 C	Temperature Compensated	0.25 %	Cylinder Threaded	6894.76 kPa	1000 PSI	Flex Cable	102 mV	98 mV	No Port
