1546159 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

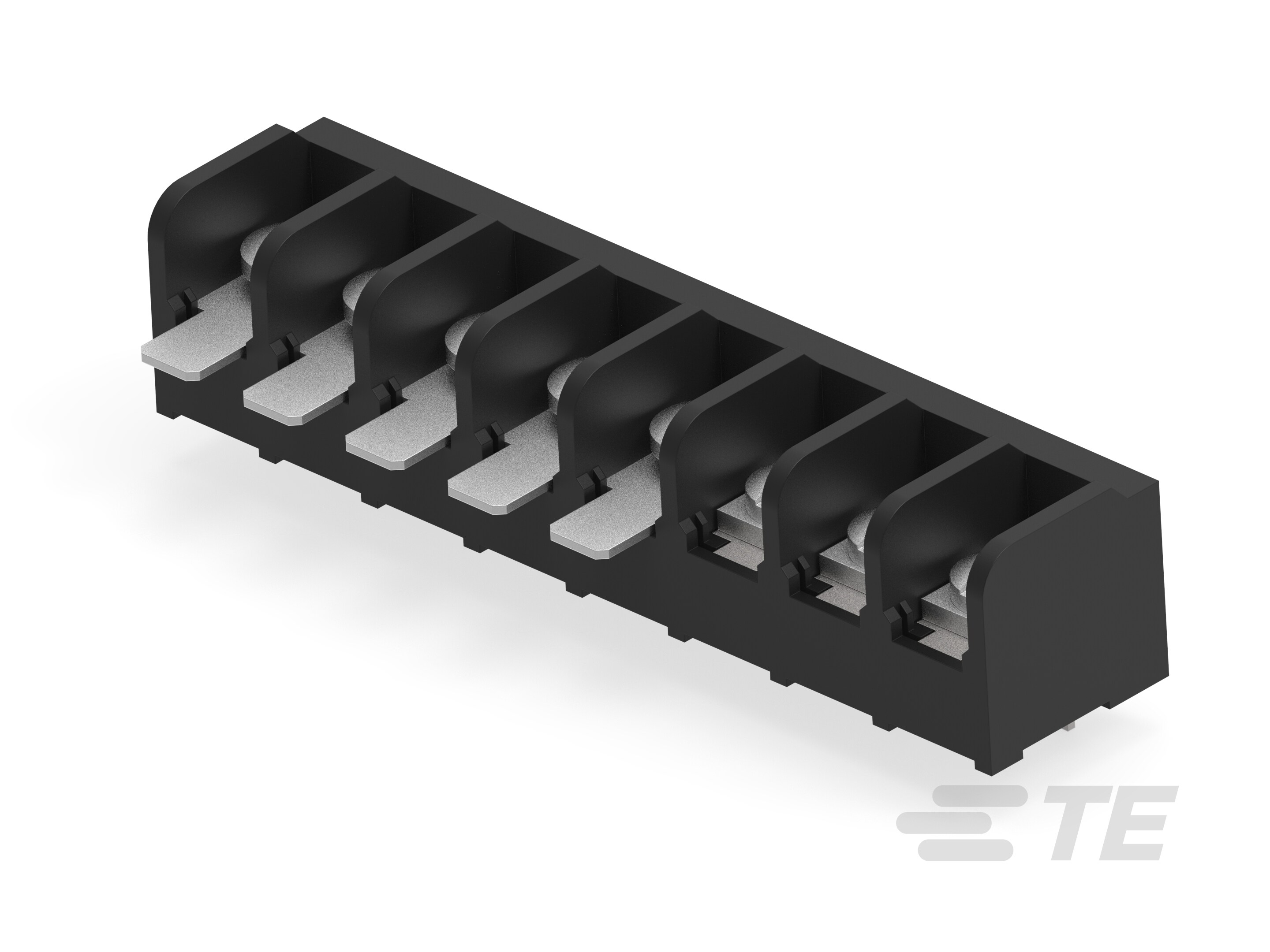

8PCV-08-502=502 8PCV-08 W/PP
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Top Termination | Number of Circuits [custom] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Terminal Block Type | Pitch [x] | Pitch [x] | Features | Terminal Screw Finish | Number of Rows | Barrier Type | Bottom Termination | Number of Wire Entries | Material - Insulation | Color | Terminal Screw Material | Material Flammability Rating | Number of Circuits | Operating Temperature | Bottom Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10 AWG | 18 AWG | 30 A | Screws with Quick Connect Tabs | 8 | Through Hole | -40 °C | 120 °C | 600 V | Barrier Block | 11.12 mm | 0.438 in | Positions Stamped | Zinc | 1 | 3 Wall (Tri) | PC Pin | 8 | Thermoplastic | Black | Steel | UL94 V-0 | |||
TE Connectivity Raychem Cable Protection | 12 AWG | 22 AWG | 25 A | Screws | Chassis Panel | 300 VDC | Barrier Block | 9.53 mm | 0.375 in | Flange | Clear Chromate Zinc | 1 | 3 Wall (Tri) | Solder Turret | 5 | Thermoplastic | Black | Steel | UL94 V-0 | 5 | 150 °C | ||||
 TE Connectivity Raychem Cable Protection | 10 AWG | 18 AWG | 30 A | Screws with Captive Plate | Through Hole | -40 °C | 120 °C | 600 V | Barrier Block | 11.12 mm | 0.438 in | Zinc | 1 | 3 Wall (Tri) | PC Pin | 6 | Thermoplastic | Black | Steel | UL94 V-0 | 6 | ||||
TE Connectivity Raychem Cable Protection | 10 AWG | 18 AWG | 30 A | Screws with Captive Plate | Chassis Panel | -40 °C | 120 °C | 600 V | Barrier Block | 11.12 mm | 0.438 in | Flange | Zinc | 1 | 3 Wall (Tri) | Quick Connect | 5 | Thermoplastic | Black | Steel | UL94 V-0 | 5 | 0.187 in | ||
TE Connectivity Raychem Cable Protection | 12 AWG | 22 AWG | 25 A | Screws with Captive Plate | Chassis Panel Through Hole | 300 VDC | Barrier Block | 9.53 mm | 0.375 in | Flange | Clear Chromate Zinc | 1 | 3 Wall (Tri) | Wire Wrap | 14 | Thermoplastic | Black | Steel | UL94 V-0 | 14 | 105 C |
