LP38501-ADJ Series

3-A, adjustable ultra-low-dropout voltage regulator with enable

Catalog

3-A, adjustable ultra-low-dropout voltage regulator with enable

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Current - Output	Voltage - Input (Max) [Max]	Output Type	Current - Supply (Max) [Max]	Supplier Device Package	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Number of Regulators	Output Configuration	Voltage - Output (Max)	Protection Features	Control Features	Package / Case	Utilized IC / Part	Board Type	Channels per IC	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Regulator Type
Texas Instruments LP38501TS-ADJ/NOPB	125 °C	-40 °C	15 µA	3 A	5.5 V	Adjustable	4 mA	TO-263 (DDPAK-5)	56 dB	58 dB	0.6 V	Surface Mount	1	Positive	5 V	Over Current Over Temperature Short Circuit	Enable	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA
Texas Instruments LP38501TJ-ADJEV				3 A															LP38501	Fully Populated	1 - Single	2.5 V	2.7 V	5.5 V	Board(s)	Positive Adjustable

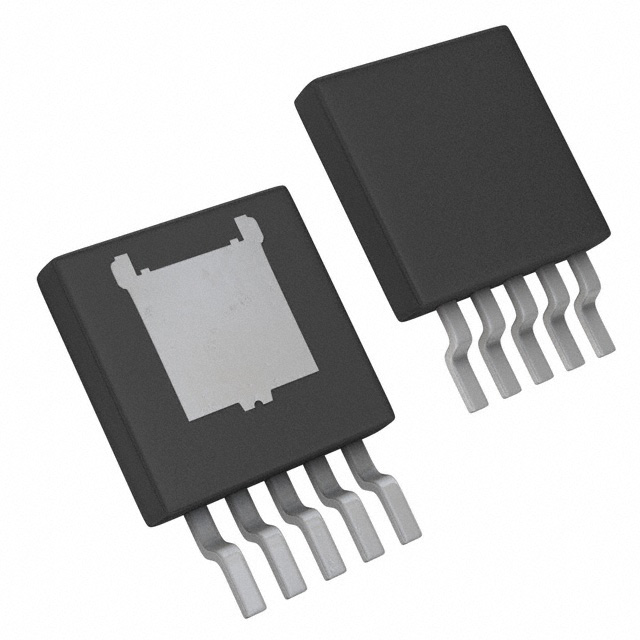

Texas Instruments LP38501ATJ-ADJ/NOPB	125 °C	-40 °C	15 µA	3 A	5.5 V	Adjustable	4 mA	TO-263-5 Thin	56 dB	58 dB	0.6 V	Surface Mount	1	Positive	5 V	Over Current Over Temperature Short Circuit	Enable	TO-263-5 Thin
Texas Instruments LP38501TSX-ADJ/NOPB	125 °C	-40 °C	15 µA	3 A	5.5 V	Adjustable	4 mA	TO-263 (DDPAK-5)	56 dB	58 dB	0.6 V	Surface Mount	1	Positive	5 V	Over Current Over Temperature Short Circuit	Enable	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA

Catalog

3-A, adjustable ultra-low-dropout voltage regulator with enable

Key Features

• Input Voltage: 2.7 V to 5.5 VAdjustable Output Voltage: 0.6 Vto 5 VFlexCap: Stable with Ceramic, Tantalum,or Aluminum CapacitorsStable With 10-µF Input andOutput CapacitorsLow Ground-Pin Current25-nA Quiescent Current in Shutdown ModeEnsured Output Current of 3 AEnsured VADJAccuracy of±1.5% at 25°C (A Grade)Ensured Accuracy of ±3.5% at25°C (STD)Overtemperature and Overcurrent ProtectionENABLE (EN) Pin (LP38501 only)–40°C to +125°C OperatingTemperature RangeInput Voltage: 2.7 V to 5.5 VAdjustable Output Voltage: 0.6 Vto 5 VFlexCap: Stable with Ceramic, Tantalum,or Aluminum CapacitorsStable With 10-µF Input andOutput CapacitorsLow Ground-Pin Current25-nA Quiescent Current in Shutdown ModeEnsured Output Current of 3 AEnsured VADJAccuracy of±1.5% at 25°C (A Grade)Ensured Accuracy of ±3.5% at25°C (STD)Overtemperature and Overcurrent ProtectionENABLE (EN) Pin (LP38501 only)–40°C to +125°C OperatingTemperature Range

Description

TI’s FlexCap low-dropout (LDO) linear regulators feature unique compensation that allow use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38501 and LP38503 series of LDOs operate from a 2.7-V to 5.5-V input supply. These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38501-ADJ and LP38503-ADJ have low quiescent currents that change little with load current. TI’s FlexCap low-dropout (LDO) linear regulators feature unique compensation that allow use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38501 and LP38503 series of LDOs operate from a 2.7-V to 5.5-V input supply. These ultra-low-dropout linear regulators respond very quickly to step changes in load, making them suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38501-ADJ and LP38503-ADJ have low quiescent currents that change little with load current.
