622-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

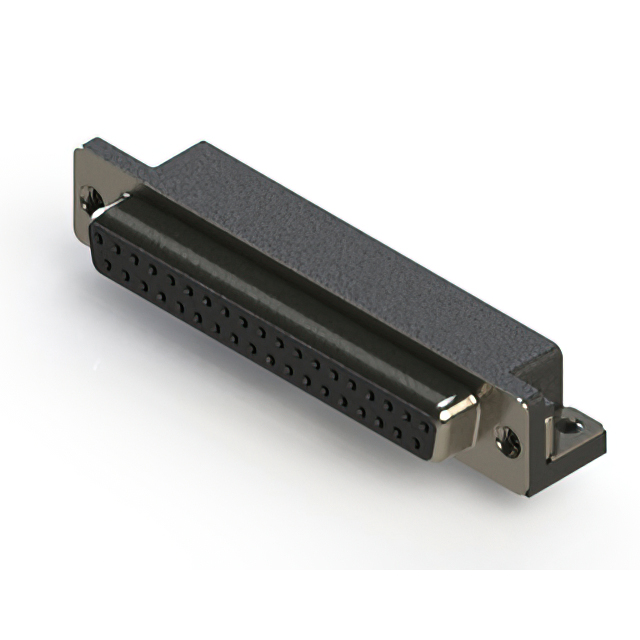

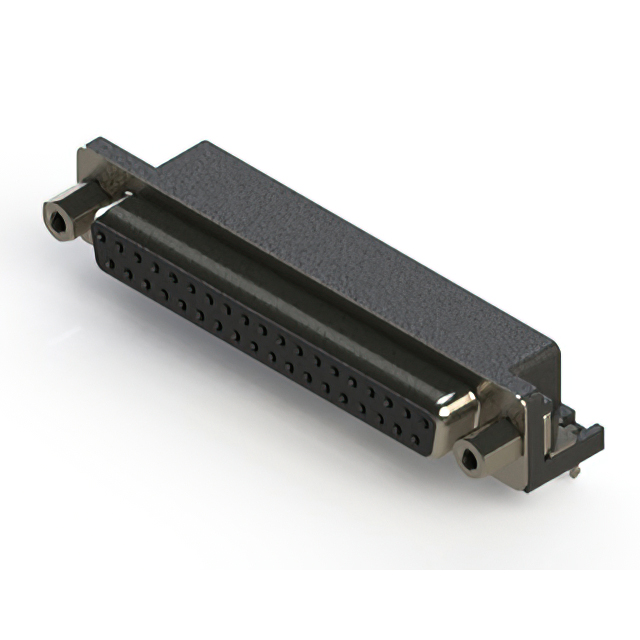

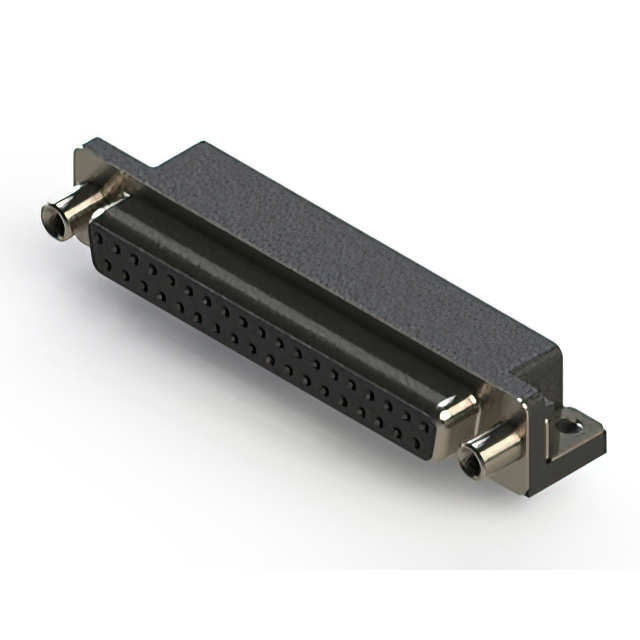

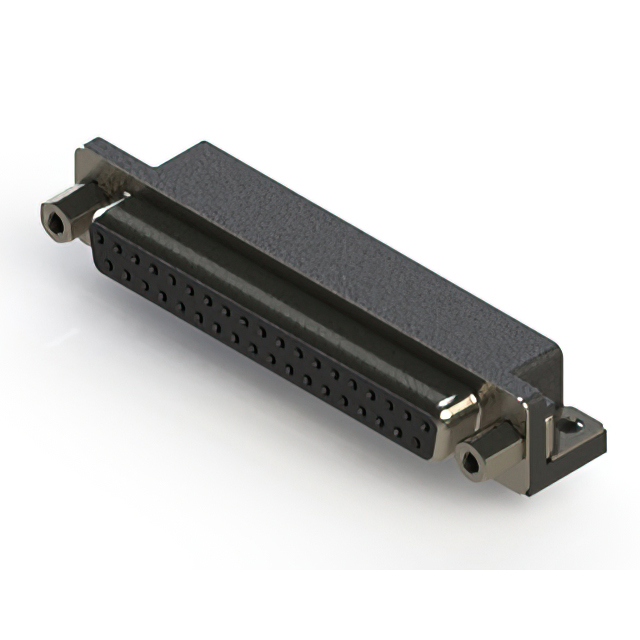

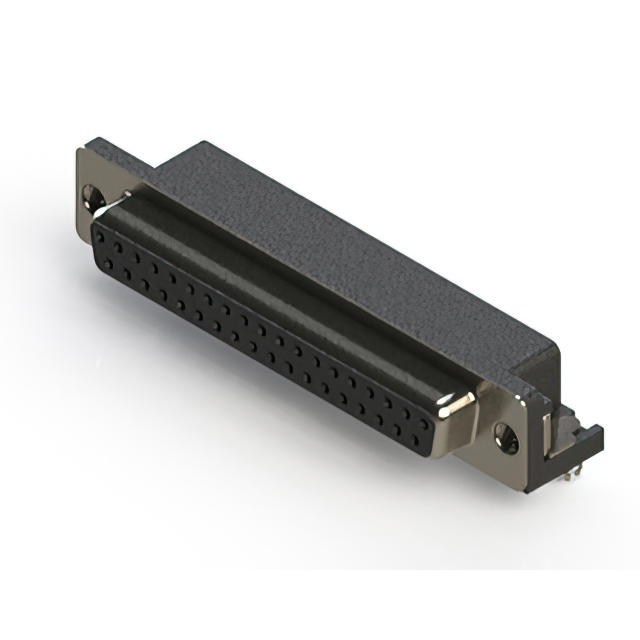

622 SERIES RIGHT ANGLE D-SUB REC
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Current Rating (Amps) | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Type | Connector Style | Material Flammability Rating | Backset Spacing | Backset Spacing | Shell Material, Finish | Termination | Mounting Type | Number of Rows [custom] | Contact Finish | Number of Positions | Connector Type | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 4-40 | 0.38 µm | 15 µin | Filter Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | Housing/Shell (M3) | Board Lock Filter Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | Flash | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | Housing/Shell (Unthreaded) | 0.38 µm | 15 µin | Filter Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 4-40 Mating Side Female Screwlock | 0.76 Ám | 30 Áin | Filter Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | Housing/Shell | 0.38 µm | 15 µin | Filter Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | 4-40 | |
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 4-40 Mating Side Female Screwlock | 0.38 µm | 15 µin | Board Lock Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | Housing/Shell (Unthreaded) | 0.76 Ám | 30 Áin | Filter Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | 3 A | 4-40 Mating Side Female Screwlock | 0.76 Ám | 30 Áin | Board Lock Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | Mating Side Female Screwlock (M3) | 0.76 Ám | 30 Áin | Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | 3 A | 4-40 Mating Side Female Screwlock | 0.38 µm | 15 µin | Board Lock Mounting Brackets Shielded | 4 | DC C | Signal | D-Sub | UL94 V-0 | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | Board Edge Right Angle Through Hole | 2 | Gold | 37 | Receptacle Female Sockets |
