RL78/I1x Series

Microcontrollers Suitable for Applications such as Detectors and Sensors Requiring Low Power and Analog Integration

Manufacturer: Renesas Electronics Corporation

Catalog

Microcontrollers Suitable for Applications such as Detectors and Sensors Requiring Low Power and Analog Integration

Part	Core Size	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Package / Case	Package / Case	Package / Case	Program Memory Size	Mounting Type	Program Memory Type	Number of I/O	EEPROM Size	Data Converters	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Oscillator Type	Speed	Core Processor	RAM Size	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	Peripherals	RAM Size	Package / Case [x]	Data Converters	Package / Case [y]
Renesas Electronics Corporation R5F117ACGSP#50	16-Bit	30-LSSOP	105 °C	-40 °C	CSI I2C UART/USART	30-LSSOP	0.24 in	6.1 mm	32 KB	Surface Mount	FLASH	19	2K x 8	A/D 12x8/12b	1.6 V	3.6 V	Internal	24 MHz	RL78
Renesas Electronics Corporation R5F117AAGSP#50	16-Bit	30-LSSOP	105 °C	-40 °C	CSI I2C UART/USART	30-LSSOP	0.24 in	6.1 mm	16 KB	Surface Mount	FLASH	19	2K x 8	A/D 12x8/12b	1.6 V	3.6 V	Internal	24 MHz	RL78	2K x 8
Renesas Electronics Corporation R5F117GAGFB#50	16-Bit	48-LQFP (7x7)	105 °C	-40 °C	CSI I2C UART/USART	48-LQFP			16 KB	Surface Mount	FLASH	33 I/O	2K x 8		1.6 V	3.6 V	Internal	24 MHz	RL78	2K x 8	8 bits	12 b	17
Renesas Electronics Corporation R5F107ACGSP#V0	16-Bit	30-LSSOP	105 °C	-40 °C	I2C LINbus UART/USART	30-LSSOP	0.24 in	6.1 mm	32 KB	Surface Mount	FLASH	23		A/D 11x8/10b	2.7 V	5.5 V	Internal	32 MHz	RL78	2K x 8				DMA LVD POR PWM WDT
Renesas Electronics Corporation R5F11778GNA#40	16-Bit	24-HWQFN (4x4)	105 °C	-40 °C	CSI I2C UART/USART	24-WFQFN Exposed Pad				Surface Mount	FLASH	15	2K x 8	12b 6x8	1.6 V	3.6 V	Internal	24 MHz	RL78	768 x 8

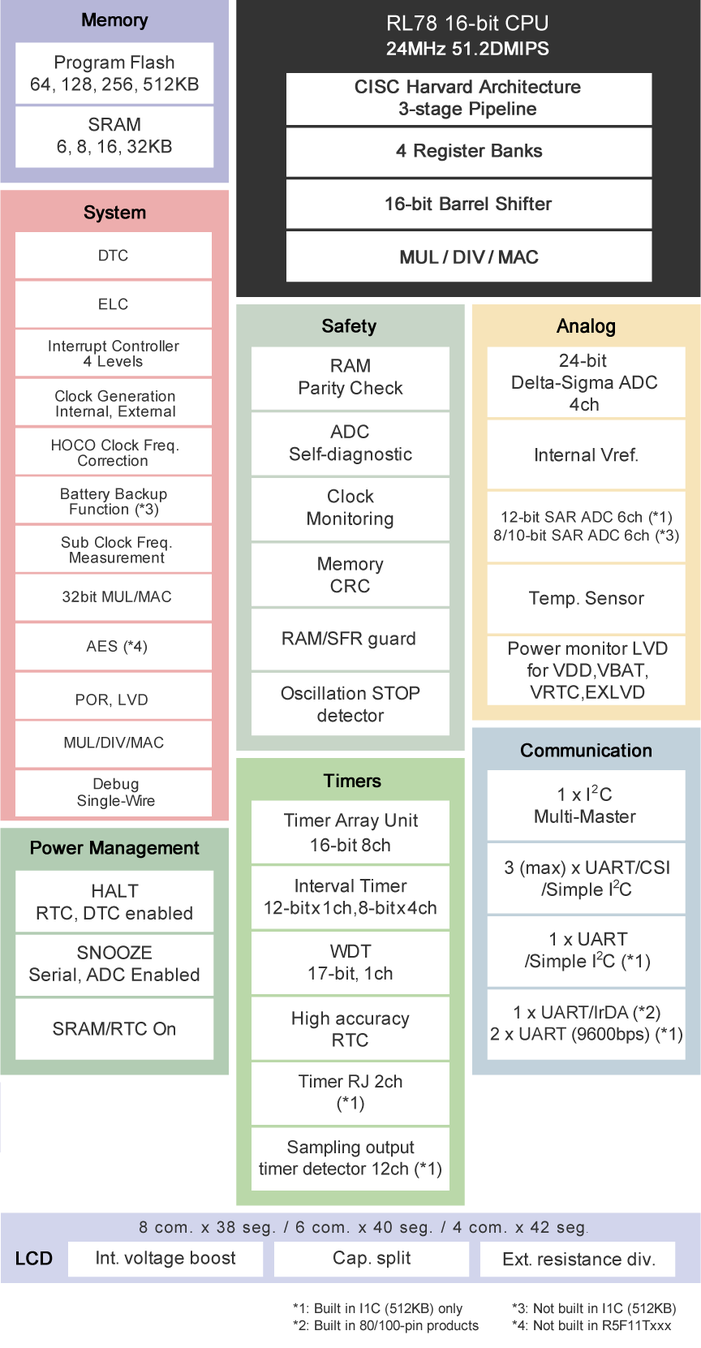

Renesas Electronics Corporation R5F11TLEDFB#35	16-Bit	64-LFQFP (10x10)	85 °C	-40 °C	CSI I2C IrDA LINbus UART/USART	64-LQFP			64 KB	Surface Mount	FLASH	27	2K x 8	A/D 4x10/24b Sigma-Delta	1.7 V	5.5 V	Internal	24 MHz	RL78					LCD LVD POR PWM WDT	6 K
Renesas Electronics Corporation R5F11768GSP#50	16-Bit	20-LSSOP	105 °C	-40 °C	CSI I2C UART/USART	20-LSSOP				Surface Mount	FLASH	11	2K x 8	12b 6x8	1.6 V	3.6 V	Internal	24 MHz	RL78	768 x 8						0.173 in 4.4 mm

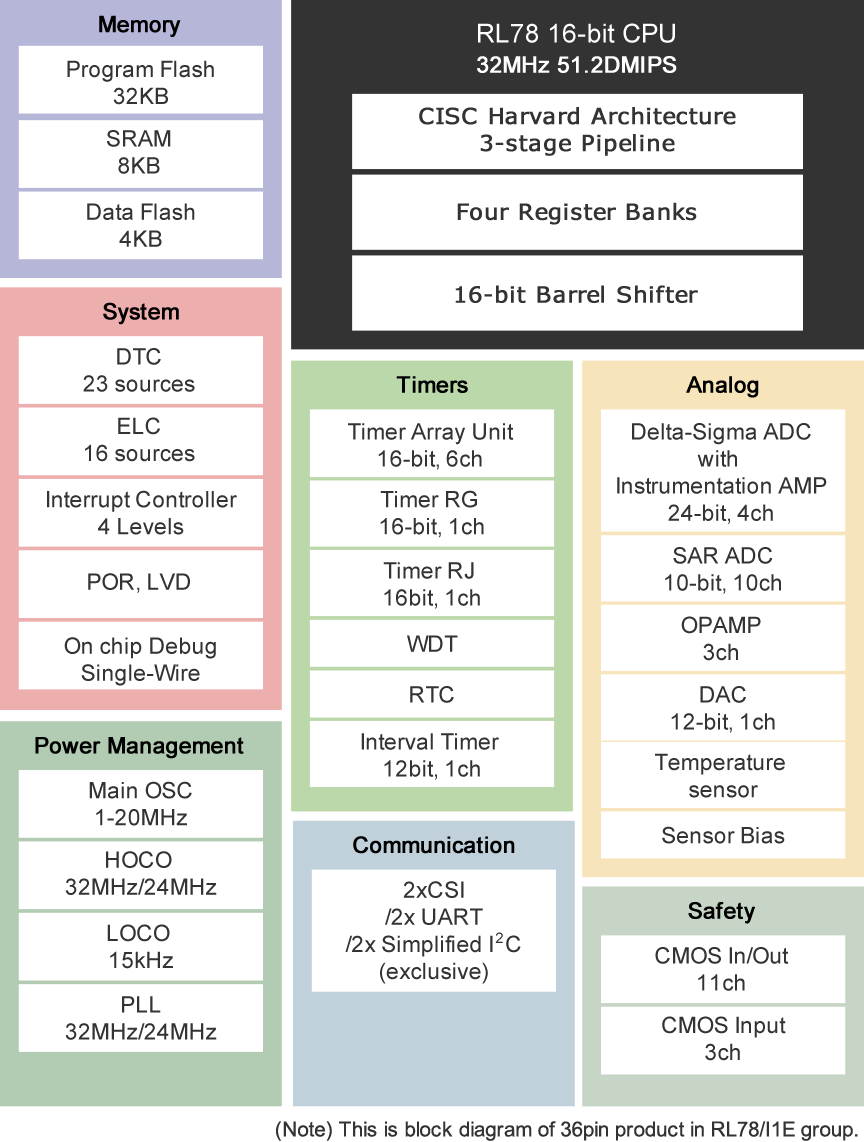

Renesas Electronics Corporation R5F11CCCGBG#W0	16-Bit	36-TFBGA (4x4)	105 °C	-40 °C	CSI I2C LINbus UART/USART	36-TFBGA			32 KB	Surface Mount	FLASH	11	4K x 8	10x10b 1x12b 4x24b	2.4 V	5.5 V	Internal	32 MHz	RL78					LVD POR PWM WDT	8 K
Renesas Electronics Corporation R5F10MMGDFB#50	16-Bit		85 °C	-40 °C	CSI I2C IrDA LINbus UART/USART	80-LQFP			128 KB	Surface Mount	FLASH	53		3x24b 4x10b	1.9 V	5.5 V	Internal	24 MHz	RL78					Brown-out Detect/Reset LCD LVD POR PWM WDT	8 K
Renesas Electronics Corporation R5F11768GSM#70	16-Bit	20-TSSOP	105 °C	-40 °C	CSI I2C UART/USART	20-TSSOP				Surface Mount	FLASH	11	2K x 8		1.6 V	3.6 V	External Internal	24 MHz	RL78	716.8 x 8				LVD POR WDT		0.173 in	6 channels 12 b	4.4 mm

Catalog

Microcontrollers Suitable for Applications such as Detectors and Sensors Requiring Low Power and Analog Integration

Description

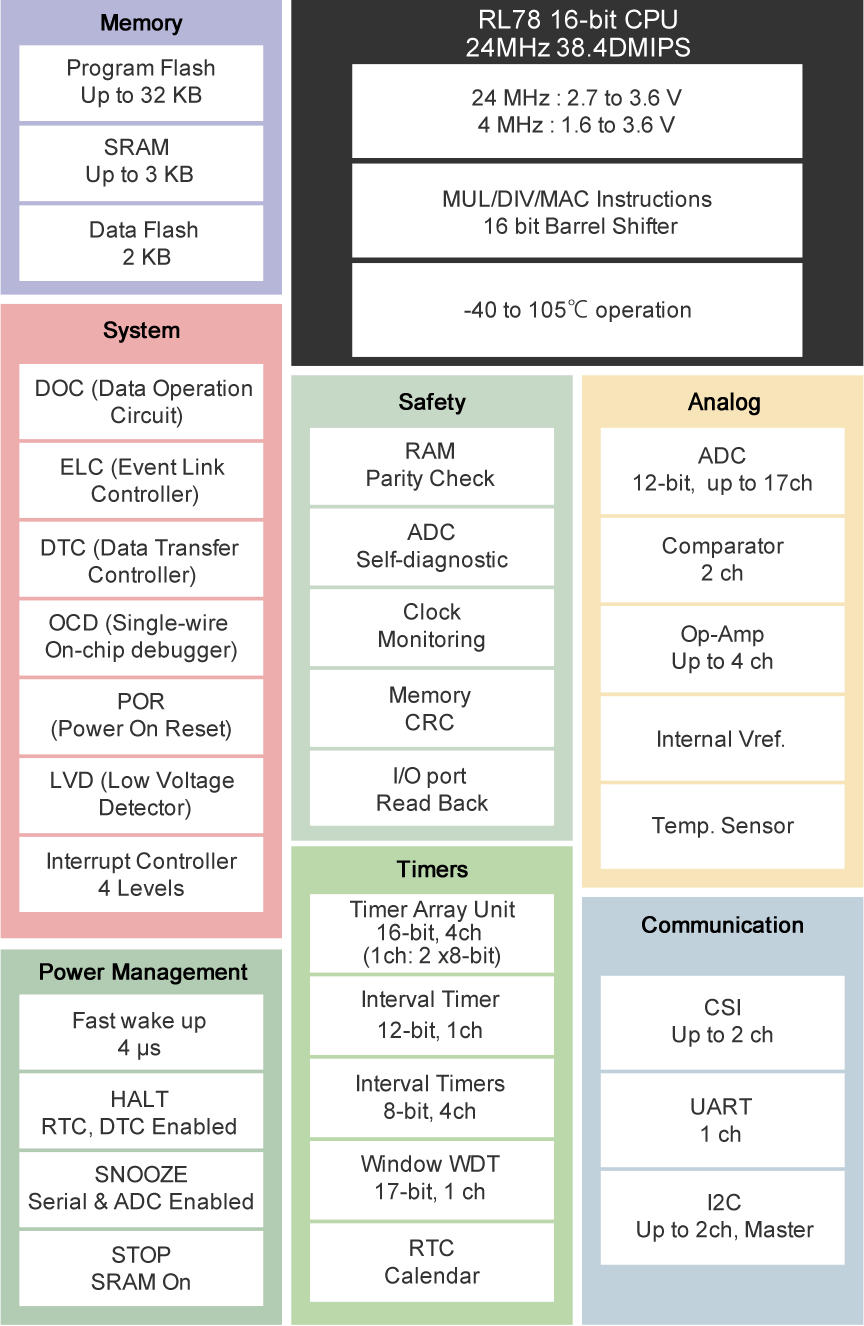

The RL78/I1D microcontroller has enhanced analog functions such as operational amplifiers, 12-bit A/D converter and window comparators. The MCU also supports very low power operation (124 uA @ 1 MHz) and a high speed 4µs wake up.
