2328724 Series

Catalog

FFC & FPC CONNECTORS 13 PIN FPC CONNECTOR 0.3MMP FRONT FLIP

Part	Locking Feature	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Housing Color	Contact Finish	Housing Material	Mounting Type	Actuator Material	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Positions	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Height Above Board [z]	Height Above Board [z]	Cable End Type	Contact Material	Connector/Contact Type	FFC, FCB Thickness

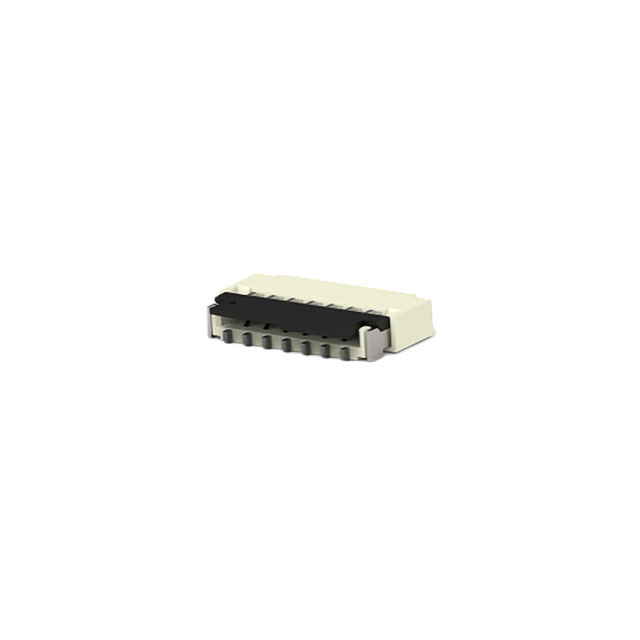

TE Connectivity Raychem Cable Protection 1-2328724-3	Flip Lock	FPC	85 °C	-40 °C	30 VDC	0.5 A	Natural	Gold	Thermoplastic	Surface Mount Right Angle	Thermoplastic	UL94 V-0	0.012 in	0.3 mm	13	Black	3 Áin	0.076 Ám	Solder	1 mm	0.039 in	Tapered	Copper Alloy	Contacts Bottom	0.2 mm

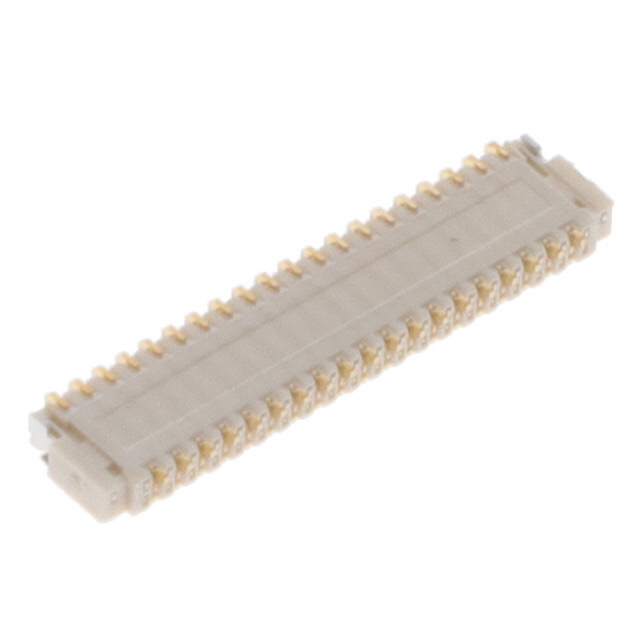

TE Connectivity Raychem Cable Protection 3-2328724-9	Flip Lock	FPC	85 °C	-40 °C	30 VDC	0.5 A	Natural	Gold	Thermoplastic	Surface Mount Right Angle	Thermoplastic	UL94 V-0	0.012 in	0.3 mm	39	Black	3 Áin	0.076 Ám	Solder	1 mm	0.039 in	Tapered	Copper Alloy	Contacts Bottom	0.2 mm

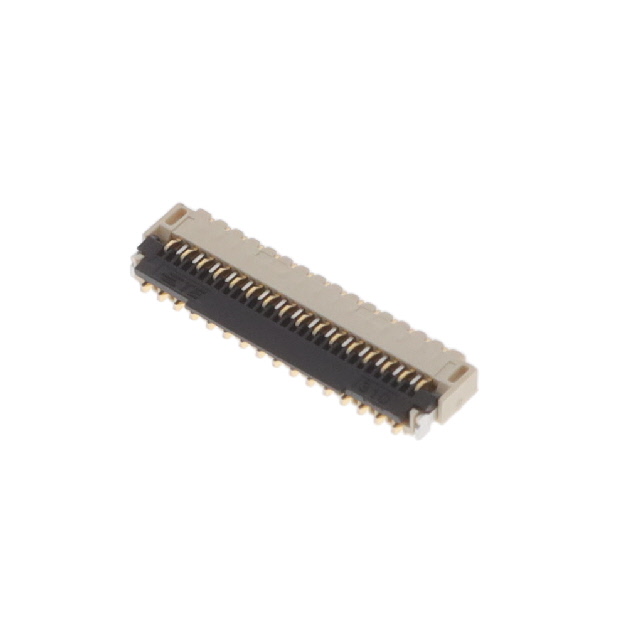

TE Connectivity Raychem Cable Protection 3-2328724-1	Flip Lock	FPC	85 °C	-40 °C	30 VDC	0.5 A	Natural	Gold	Thermoplastic	Surface Mount Right Angle	Thermoplastic	UL94 V-0	0.012 in	0.3 mm	31	Black	3 Áin	0.076 Ám	Solder	1 mm	0.039 in	Tapered	Copper Alloy	Contacts Bottom	0.2 mm
