43.41.7 Series

Catalog

RELAY GEN PURPOSE SPDT 10A 12V

Part	Coil Resistance	Must Operate Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Form	Seal Rating	Load - Max Switching [Max]	Relay Type	Coil Current	Termination Style	Mounting Type	Approval Agency	Contact Rating (Current)	Contact Material	Switching Voltage [Max]	Release Time	Coil Voltage

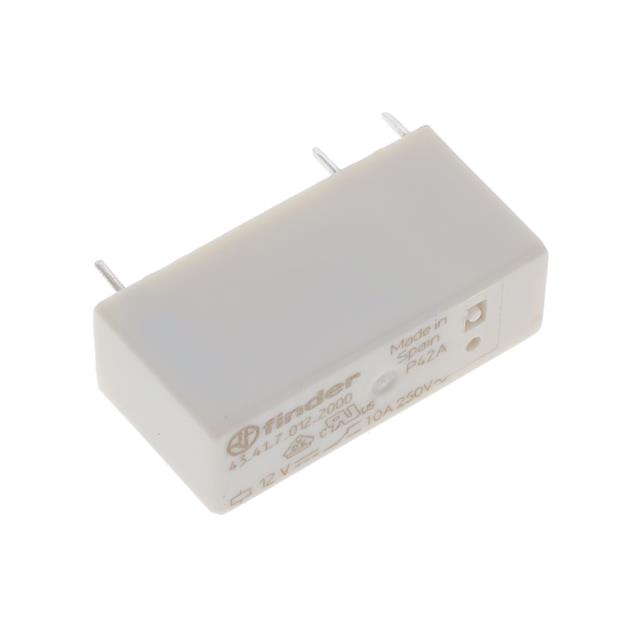

Finder Relays, Inc. 43.41.7.012.2000	580 Ohms	8.4 VDC	6 ms	85 °C	-40 C	Non Latching	SPDT (1 Form C)	Sealed - Flux Protection	4000 VA	General Purpose	20.7 mA	PC Pin	Through Hole	cURus EAC ENEC VDE	10 A	Silver Cadmium Oxide (AgCdO)	400 VAC	4 ms	12 VDC
Finder Relays, Inc. 43.41.7.003.2000	36 Ohms		6 ms	85 °C	-40 C	Non Latching	SPDT (1 Form C)	Sealed - Flux Protection	4000 VA	General Purpose	83.5 mA	PC Pin	Through Hole	cURus EAC ENEC VDE	10 A	Silver Cadmium Oxide (AgCdO)	400 VAC	4 ms

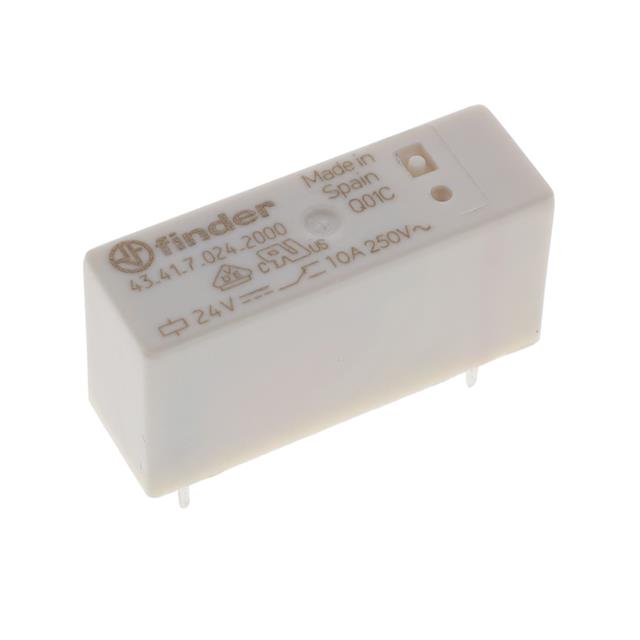

Finder Relays, Inc. 43.41.7.024.2000	2.2 kOhms	16.8 VDC	6 ms	85 °C	-40 C	Non Latching	SPDT (1 Form C)	Sealed - Flux Protection	4000 VA	General Purpose	10.9 mA	PC Pin	Through Hole	cURus EAC ENEC VDE	10 A	Silver Cadmium Oxide (AgCdO)	400 VAC	4 ms	24 VDC
Finder Relays, Inc. 43.41.7.024.2001	2.2 kOhms	16.8 VDC	6 ms	85 °C	-40 C	Non Latching	SPDT (1 Form C)		4000 VA	General Purpose	10.9 mA	PC Pin	Through Hole	cURus EAC ENEC VDE	10 A	Silver Cadmium Oxide (AgCdO)	400 VAC	4 ms	24 VDC
