2DA Series

Catalog

CONN D-SUB SKT 31 POS 1.9MM SOLDER RA THRU-HOLE 31 TERMINAL 1 PORT

Part	Dielectric Material	Contact Material	Connector Style	Mounting Type	Shell Material, Finish	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Number of Rows [custom]	Contact Finish	Connector Type	Contact Type	Flange Feature	Number of Positions [custom]	Note	Operating Temperature [Min]	Operating Temperature [Max]	Color
ITT Cannon, LLC 2DA31SBR	Glass Filled Nylon Polyamide (PA)	Copper Alloy	D-Sub Double Density	Right Angle Through Hole	Steel Yellow Chromate Plated Cadmium	Solder	A DA	2	Double Density	3	Gold	Receptacle Female Sockets	Signal	Housing/Shell (Unthreaded)	31
ITT Cannon, LLC 2DA31S-F172-F0	Glass Filled Nylon Polyamide (PA)		D-Sub Double Density	Panel Mount	Steel Yellow Chromate Plated Cadmium		A DA	2	Double Density	3		Receptacle for Female Contacts	Signal	4-40 Mating Side Female Screwlock	31	Contacts Not Included	-55 C	85 °C	Black

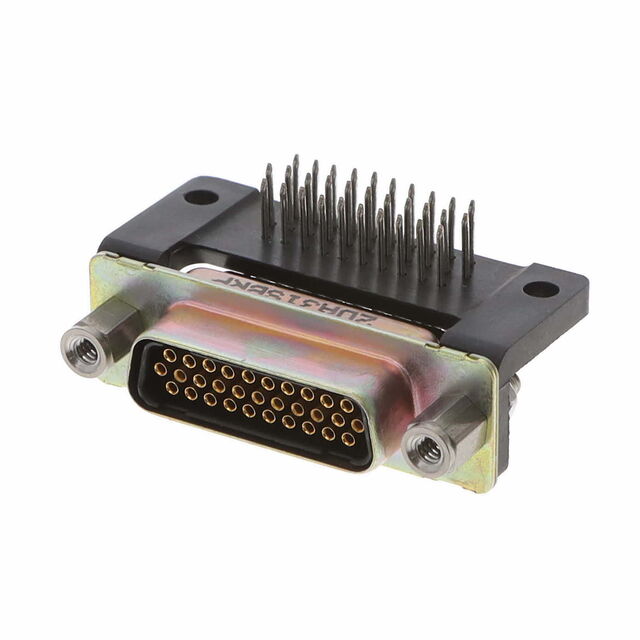

ITT Cannon, LLC 2DA31SBRP	Glass Filled Nylon Polyamide (PA)	Copper Alloy	D-Sub Double Density	Right Angle Through Hole	Steel Yellow Chromate Plated Cadmium	Solder	A DA	2	Double Density	3	Gold	Receptacle Female Sockets	Signal	4-40 Mating Side Female Screwlock	31
ITT Cannon, LLC 2DA31S-F173-F0	Glass Filled Nylon Polyamide (PA)		D-Sub Double Density	Panel Mount	Steel Yellow Chromate Plated Cadmium		A DA	2	Double Density	3		Receptacle for Female Contacts	Signal	4-40 Mating Side Female Screwlock	31	Contacts Not Included	-55 C	85 °C	Black
