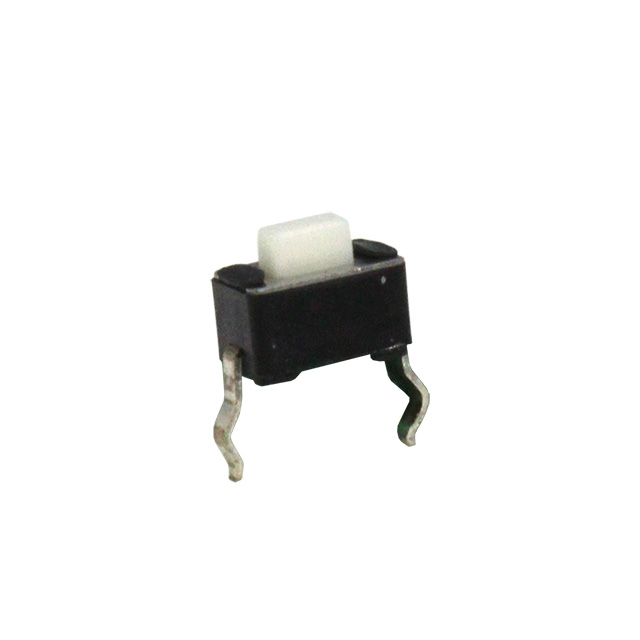

CT11015 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Mounting Type | Actuator Orientation | Switch Function | Operating Force | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical [z] | Illumination | Contact Rating @ Voltage | Outline [x] | Outline [y] | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Through Hole | Top Actuated | Off-Mom | 260 gf | PC Pin | 85 °C | -40 C | 5 mm | Non-Illuminated | 0.05 A 50 VDC | 6 mm | 3.5 mm | Rectangular Button | SPST-NO |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Through Hole | Top Actuated | Off-Mom | 130 gf | PC Pin | 85 °C | -40 C | 5 mm | Non-Illuminated | 0.05 A 50 VDC | 6 mm | 3.5 mm | Rectangular Button | SPST-NO |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Through Hole | Top Actuated | Off-Mom | 180 gf | PC Pin | 85 °C | -40 C | 5 mm | Non-Illuminated | 0.05 A 50 VDC | 6 mm | 3.5 mm | Rectangular Button | SPST-NO |
