WM051 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 5.62"L X 3.25"W

Part	Weight [custom]	Weight [custom]	Height	Height	Material Flammability Rating	Design	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Ratings	Features	Container Type	Thickness	Thickness	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]

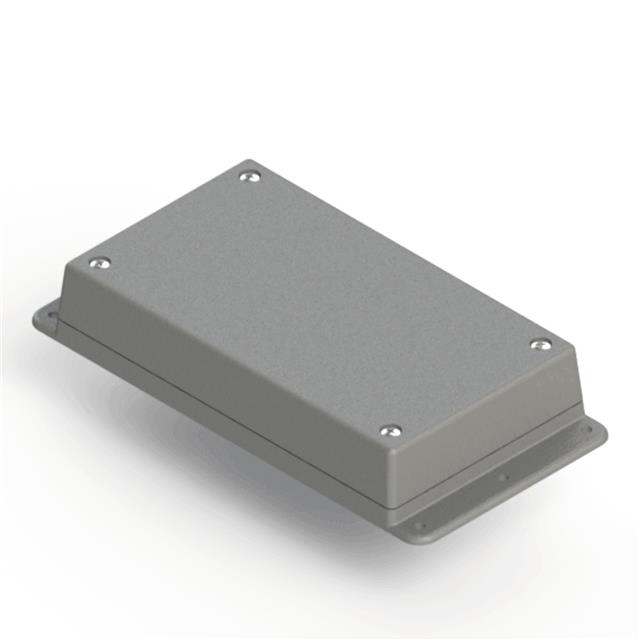

Serpac WM051R,GY	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Gray	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

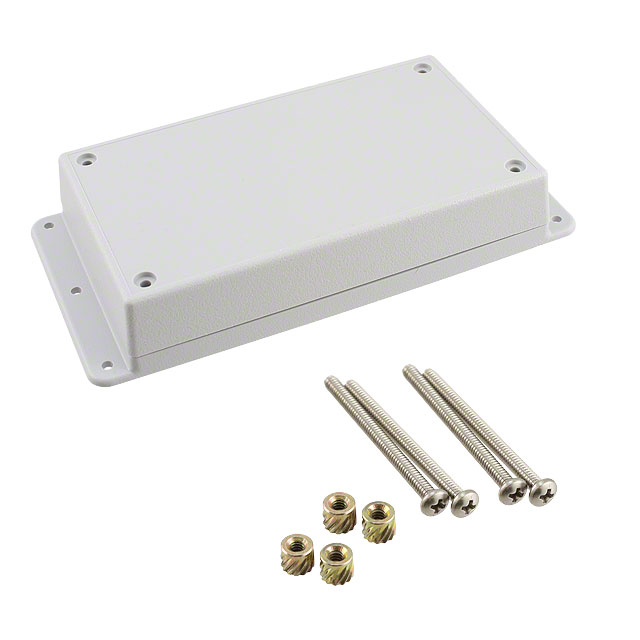

Serpac WM051RI,GY	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Gray	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

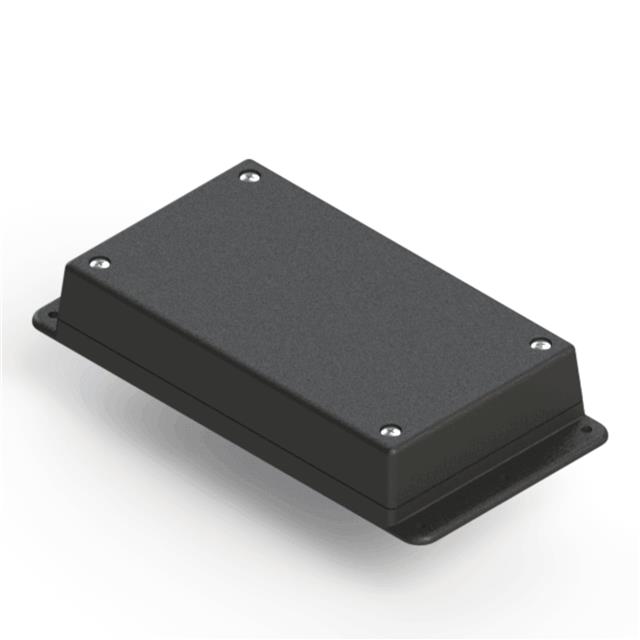

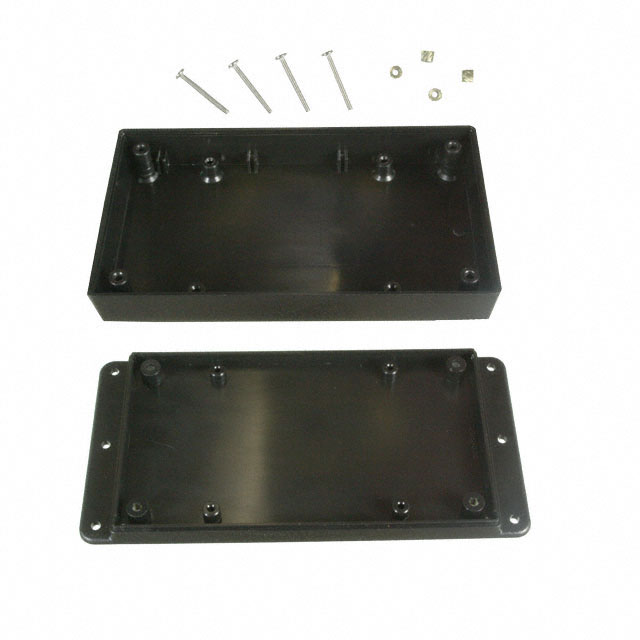

Serpac WM051R,BK	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Black	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

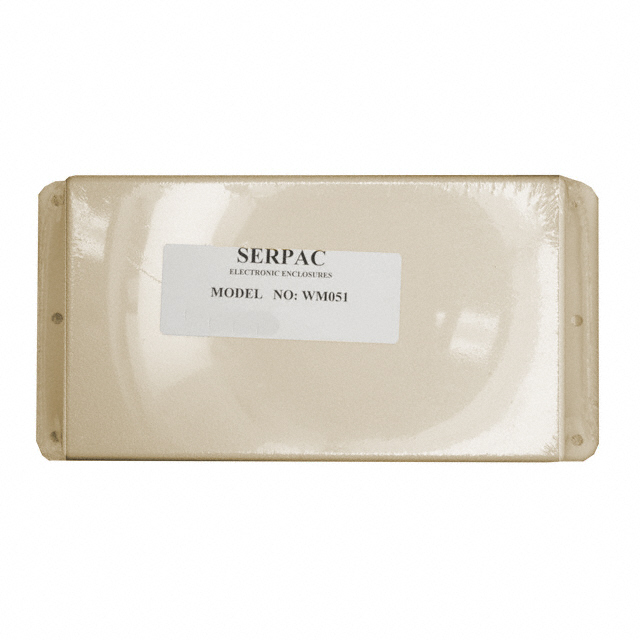

Serpac WM051,AL	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

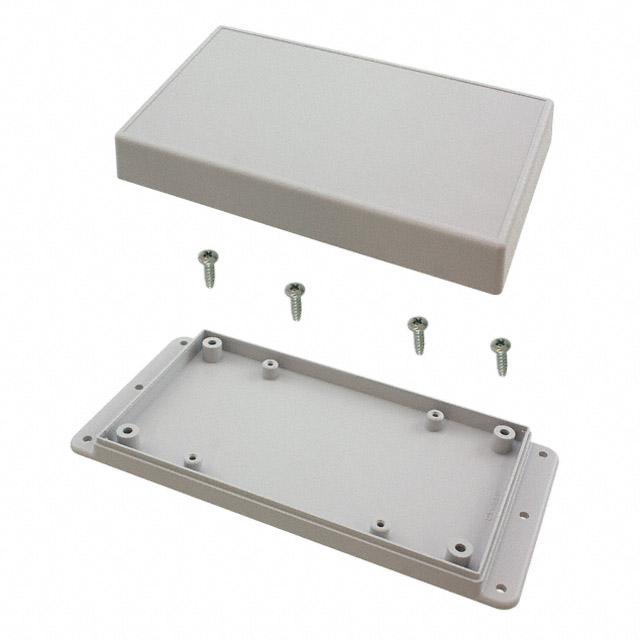

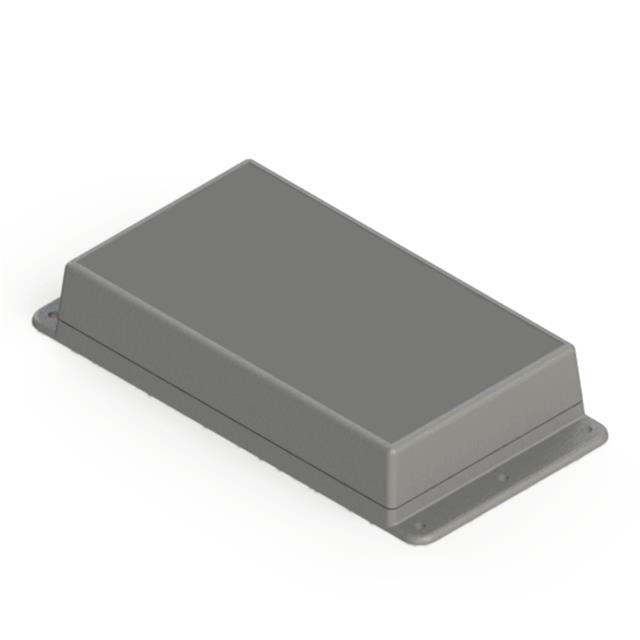

Serpac WM051I,GY	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Gray	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

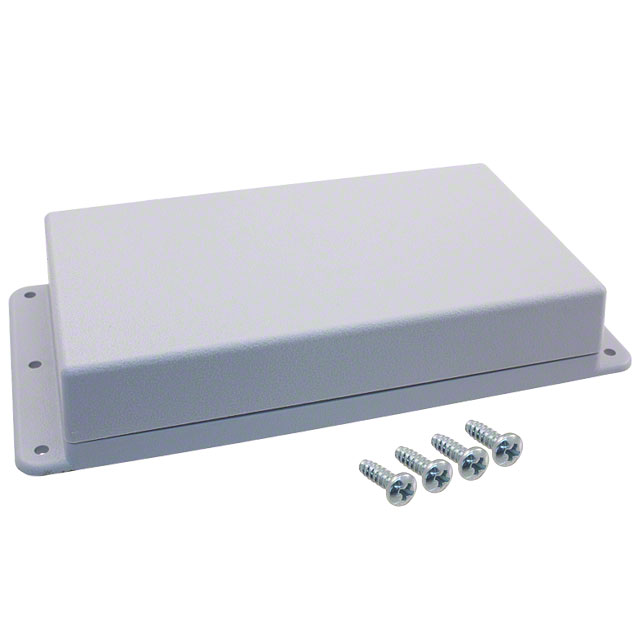

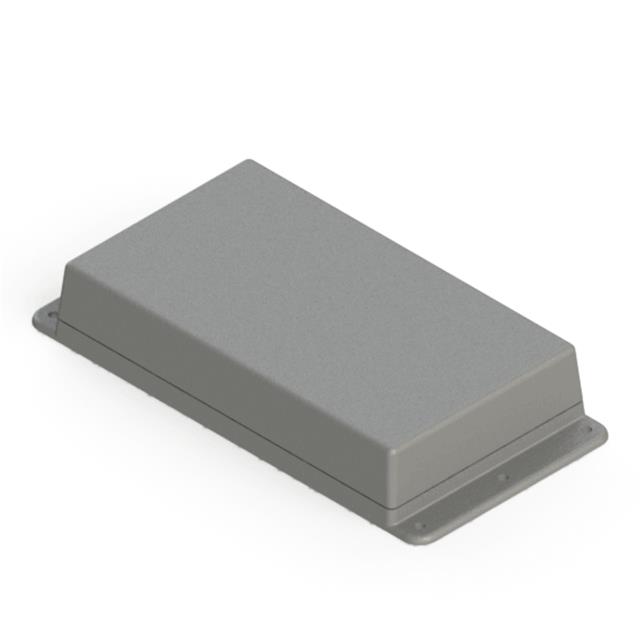

Serpac WM051,GY	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Gray	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²	118 cm˛	18.3 in˛

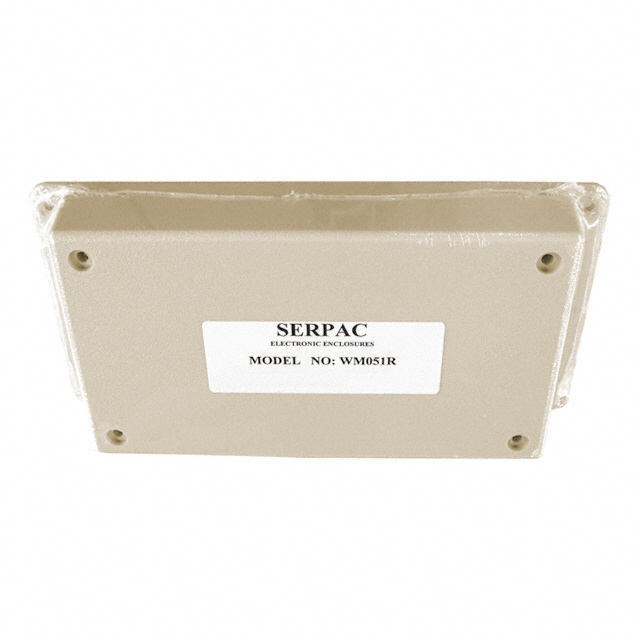

Serpac WM051R,AL	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

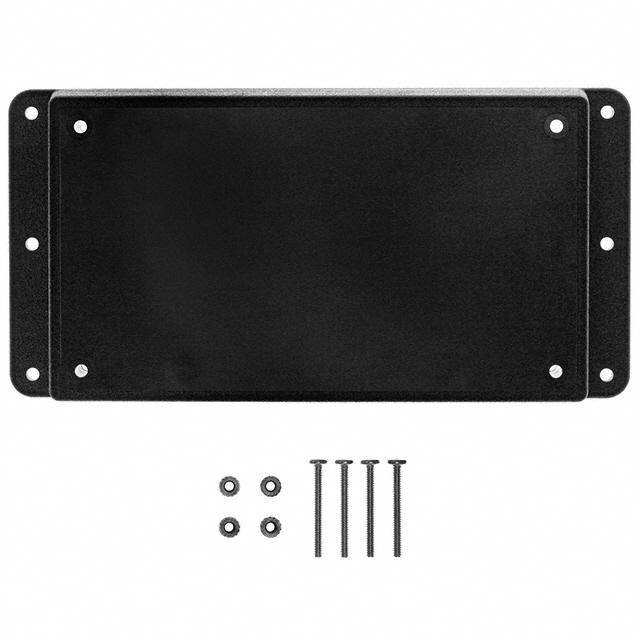

Serpac WM051RI,BK	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Black	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²

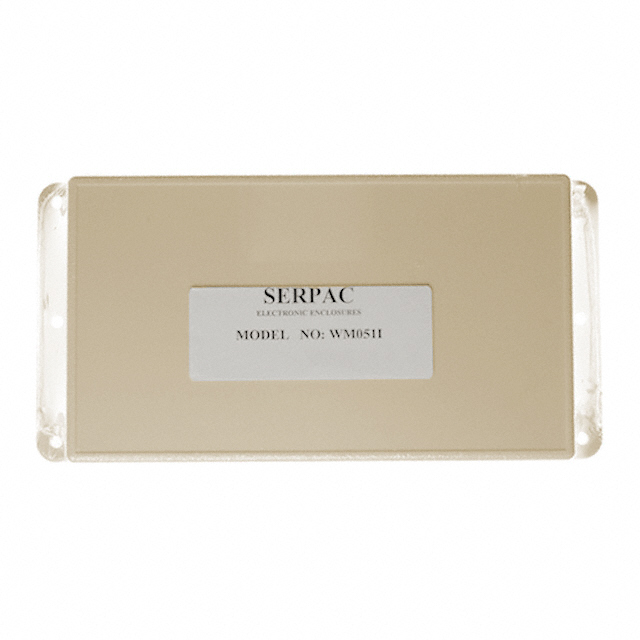

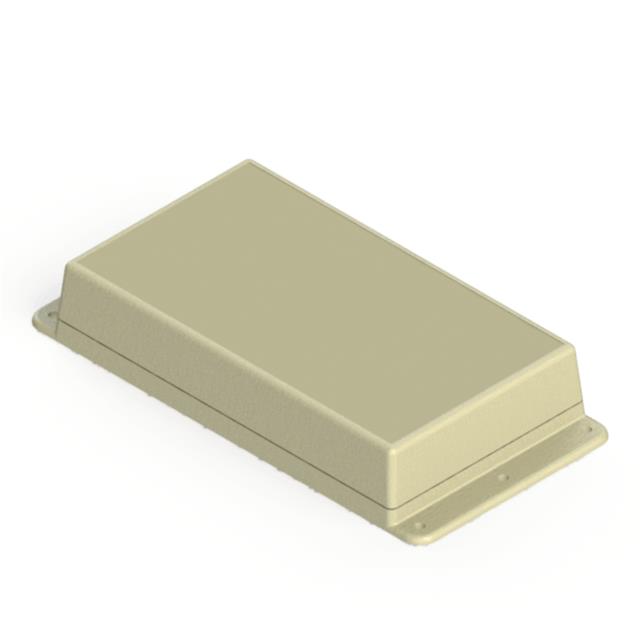

Serpac WM051I,AL	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²	118 cm˛	18.3 in˛
Serpac WM051RI,AL	100.24 g	0.221 lb	27.94 mm	1.1 in	UL94 HB	Cover Included	ABS Plastic	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.54 mm	0.1 in	18.3 in²	118 cm²
