32995 Series

Catalog

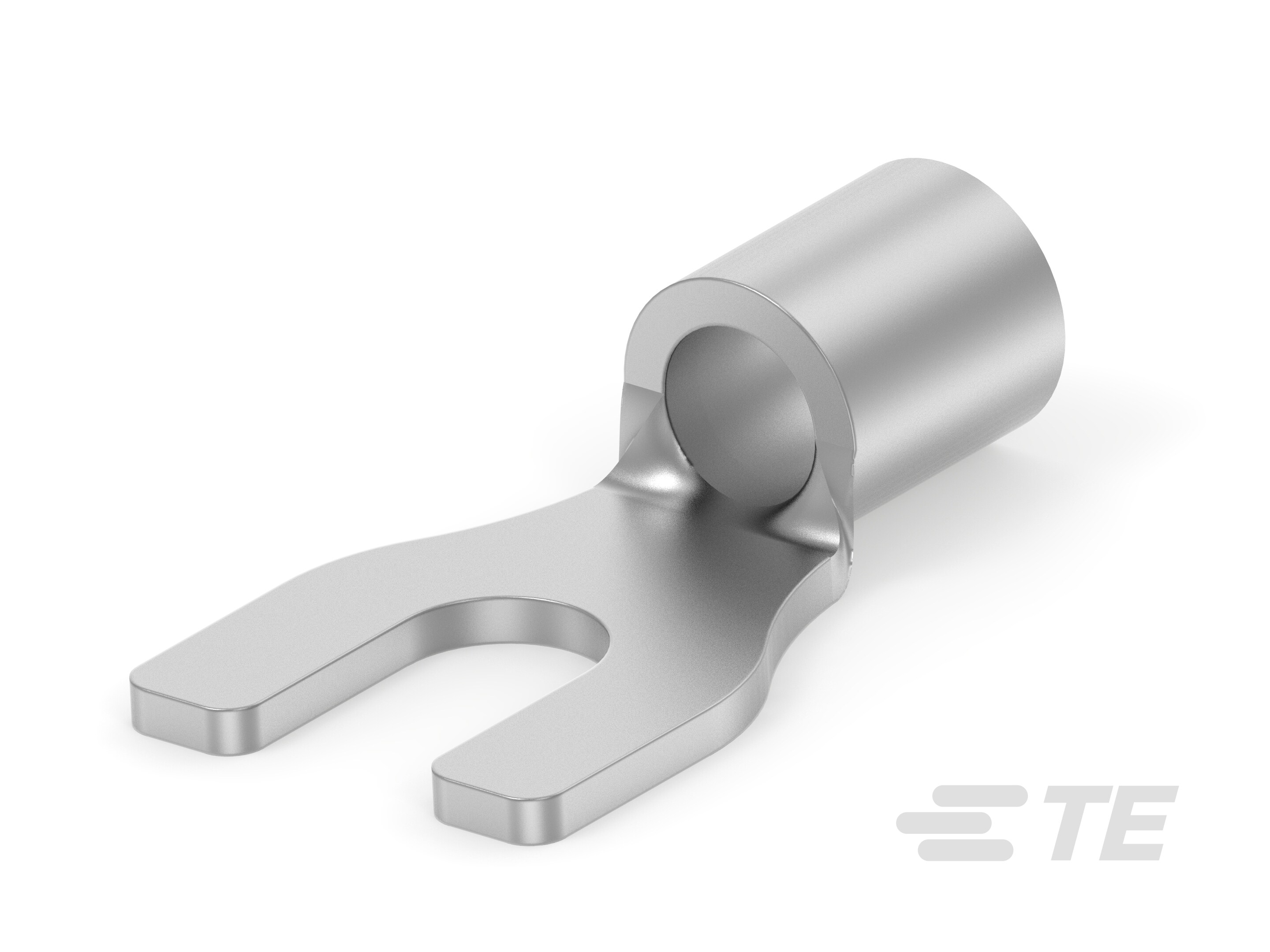

TERMINAL,SOLIS SPD 12-10 8

Part	Contact Finish	Length - Termination	Length - Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Features	Contact Material	Insulation	Terminal Type	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination	Length - Ring Center to Termination	Termination
TE Connectivity Raychem Cable Protection 8-32995-1	Tin	0.268 in	6.81 mm	0.171 in	4.34 mm	Free Hanging (In-Line)	0.772 in	19.61 mm	10.31 mm	0.406 in	Brazed Seam Serrated Termination	Copper	Non-Insulated	Standard	8 Stud	12 AWG	10 AWG	7.52 mm	0.296 in	Crimp
