45440/3 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

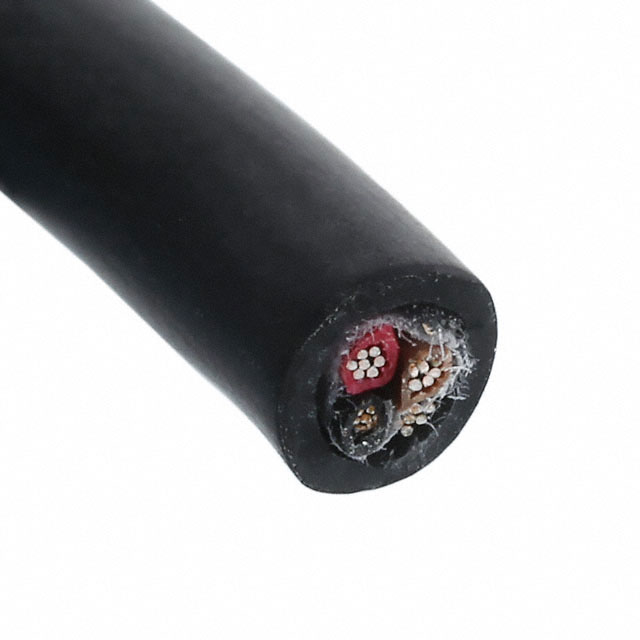

CABLE 3COND 16AWG BLK SHLD 1000'
| Part | Jacket (Insulation) Material | Cable Type | Features | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Number of Conductors | Shield Coverage | Conductor Material | Ratings | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Thermoplastic Elastomer (TPE) | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | 1.397 mm | 0.055 in | 0.383 in | 9.73 mm | Black | 19 | 0.0117 in | Foil | 3 | 100 % | Copper Tinned | ISO 10993 | 600 V | -50 °C | 125 °C | Aluminum | 16 AWG | Thermoplastic Elastomer (TPE) |
ALPHA WIRE | Thermoplastic Elastomer (TPE) | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | 1000 ft | 304.8 m | 1.397 mm | 0.055 in | 0.383 in | 9.73 mm | Black | 19 | 0.0117 in | Foil | 3 | 100 % | Copper Tinned | ISO 10993 | 600 V | -50 °C | 125 °C | Aluminum | 16 AWG | Thermoplastic Elastomer (TPE) |
