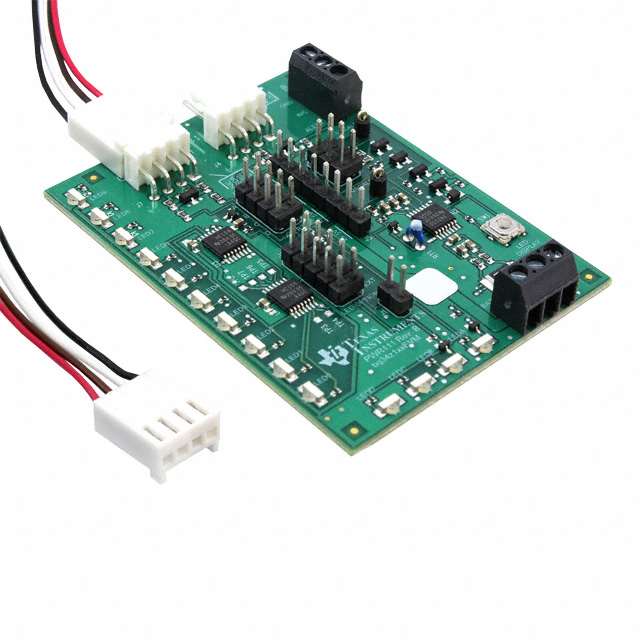

BQ34Z100-G1 Series
Multi-chemistry Impedance Track™ standalone fuel gauge | battery gas gauge
Manufacturer: Texas Instruments
Catalog
Multi-chemistry Impedance Track™ standalone fuel gauge | battery gas gauge
Key Features
• Supports Li-ion, LiFePO4, PbA, NiMH, and NiCd chemistriesCapacity estimation using patented Impedance Track™ technology for batteries from 3 V to 65 VAging compensationSelf-discharge compensationSupports battery capacities up to 29 Ah with standard configuration optionsSupports charge and discharge currents up to 32 A with standard configuration optionsExternal NTC thermistor supportSupports two-wire I2C and HDQ single-wire communication interfaces with host systemSHA-1/HMAC authenticationOne- or four-LED direct display controlFive-LED and higher display through port expanderReduced power modes (typical battery pack operating range conditions)NORMAL operation: < 145-µA averageSLEEP: < 84-µA averageFULL SLEEP: < 30-µA averagePackage: 14-pin TSSOPSupports Li-ion, LiFePO4, PbA, NiMH, and NiCd chemistriesCapacity estimation using patented Impedance Track™ technology for batteries from 3 V to 65 VAging compensationSelf-discharge compensationSupports battery capacities up to 29 Ah with standard configuration optionsSupports charge and discharge currents up to 32 A with standard configuration optionsExternal NTC thermistor supportSupports two-wire I2C and HDQ single-wire communication interfaces with host systemSHA-1/HMAC authenticationOne- or four-LED direct display controlFive-LED and higher display through port expanderReduced power modes (typical battery pack operating range conditions)NORMAL operation: < 145-µA averageSLEEP: < 84-µA averageFULL SLEEP: < 30-µA averagePackage: 14-pin TSSOP
Description
AI
The BQ34Z100-G1 device is an Impedance Track™ fuel gauge for Li-ion, PbA, NiMH, and NiCd batteries, and works independently of battery series-cell configurations. Batteries from 3 V to 65 V can be easily supported through an external voltage translation circuit that is controlled automatically to reduce system power consumption.
The BQ34Z100-G1 device provides several interface options, including an I2C slave, an HDQ slave, one or four direct LEDs, and anALERToutput pin. Additionally, the BQ34Z100-G1 provides support for an external port expander for more than four LEDs.
The BQ34Z100-G1 device is an Impedance Track™ fuel gauge for Li-ion, PbA, NiMH, and NiCd batteries, and works independently of battery series-cell configurations. Batteries from 3 V to 65 V can be easily supported through an external voltage translation circuit that is controlled automatically to reduce system power consumption.
The BQ34Z100-G1 device provides several interface options, including an I2C slave, an HDQ slave, one or four direct LEDs, and anALERToutput pin. Additionally, the BQ34Z100-G1 provides support for an external port expander for more than four LEDs.
