RB66P06C Series

Manufacturer: Serpac

Catalog

BOX PLASTIC 6.3"L X 6.3"W

Part	Color	Height [z]	Height [z]	Ratings	Design	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material Flammability Rating	Container Type	Material

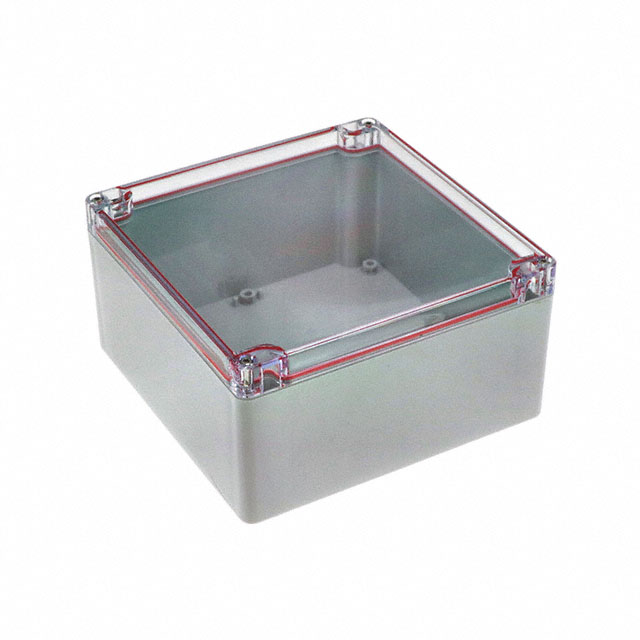

Serpac RB66P06C28G	Clear Cover/Door Gray	85.09 mm	3.35 in	IP67 NEMA 4	Cover Included	3.05 mm	0.12 "	6.3 in	160.02 mm	160.02 mm	6.3 "	UL94 V-0	Box	Plastic Polycarbonate

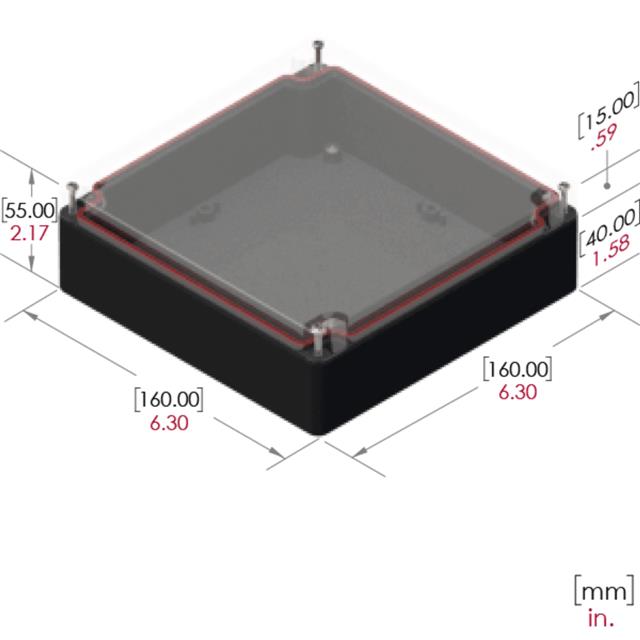

Serpac RB66P06C16B	Black Clear Cover/Door	68.58 mm	68.58 mm	IP67 NEMA 4	Cover Included	3.05 mm	0.12 "	6.3 in	160.02 mm	160.02 mm	6.3 "	UL94 V-0	Box	Plastic Polycarbonate
Serpac RB66P06C28B	Black Clear Cover/Door	85.09 mm	3.35 in	IP67 NEMA 4	Cover Included	3.05 mm	0.12 "	6.3 in	160.02 mm	160.02 mm	6.3 "	UL94 V-0	Box	Plastic Polycarbonate

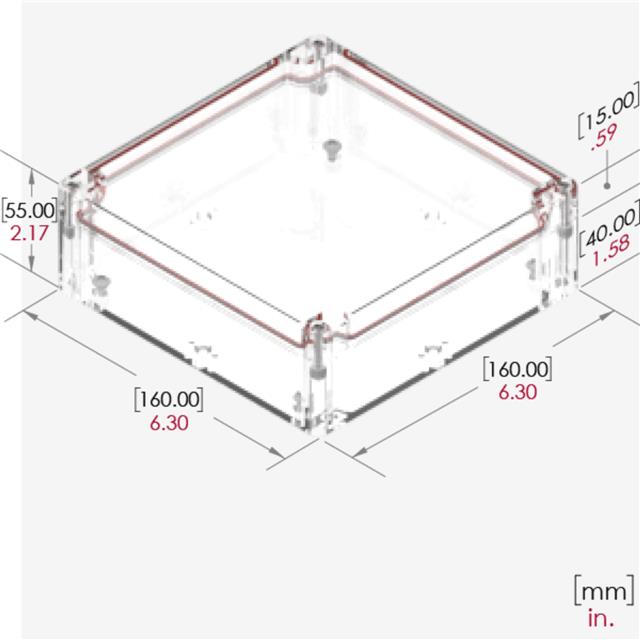

Serpac RB66P06C16C	Clear	68.58 mm	68.58 mm	IP67 NEMA 4	Cover Included	3.05 mm	0.12 "	6.3 in	160.02 mm	160.02 mm	6.3 "	UL94 V-0	Box	Plastic Polycarbonate
Serpac RB66P06C28C	Clear	85.09 mm	3.35 in	IP67 NEMA 4	Cover Included	3.05 mm	0.12 "	6.3 in	160.02 mm	160.02 mm	6.3 "	UL94 V-0	Box	Plastic Polycarbonate

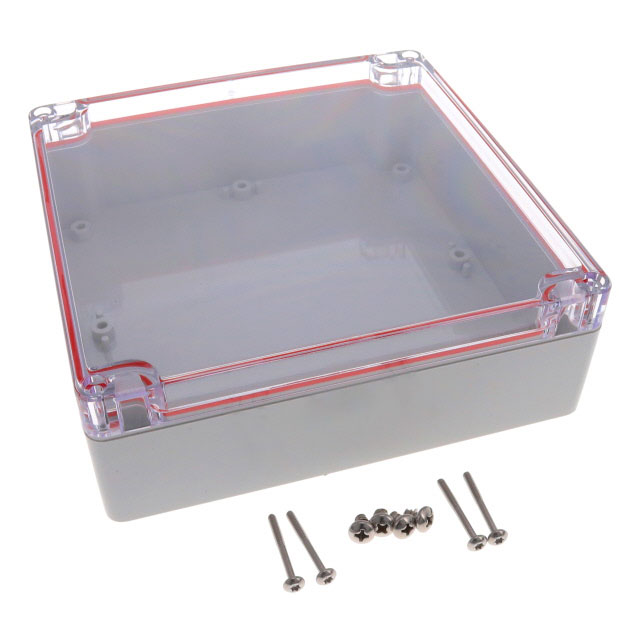

Serpac RB66P06C16G	Clear Cover/Door Gray	68.58 mm	68.58 mm	IP67 NEMA 4	Cover Included	3.05 mm	0.12 "	6.3 in	160.02 mm	160.02 mm	6.3 "	UL94 V-0	Box	Plastic Polycarbonate
