111494 Series

Catalog

CONN PLUG 40P IDC 26-28AWG GOLD

Part	Wire Type	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Row Spacing	Row Spacing	Color	Connector Type	Contact Type	Contact Finish	Fastening Type	Pitch	Pitch	Number of Rows [custom]	Cable Termination	Number of Positions [custom]
TE Connectivity AMP Connectors 2-111494-2	Ribbon Cable	Panel Mount	Feed Through	30 Áin	0.76 Ám	40	2.54 mm	0.1 "	Black	Plug	Male Pin	Gold	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	IDC
TE Connectivity AMP Connectors 2-111494-6	Ribbon Cable	Panel Mount	Feed Through	30 Áin	0.76 Ám	64	2.54 mm	0.1 "	Black	Plug	Male Pin	Gold	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	IDC

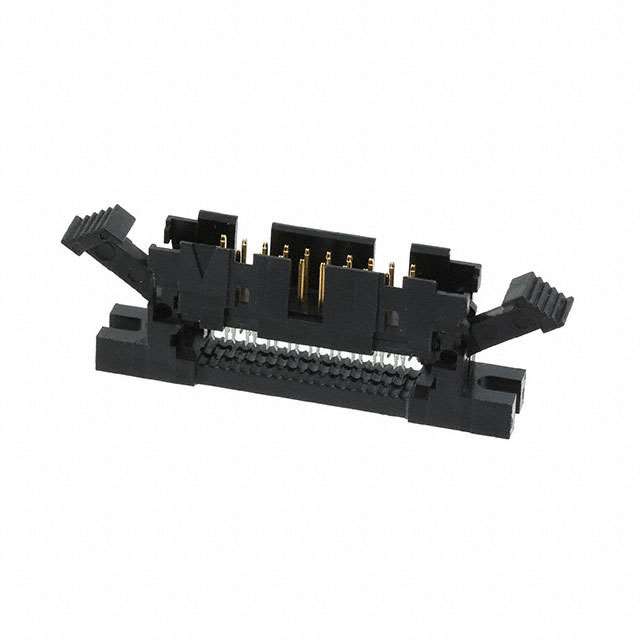

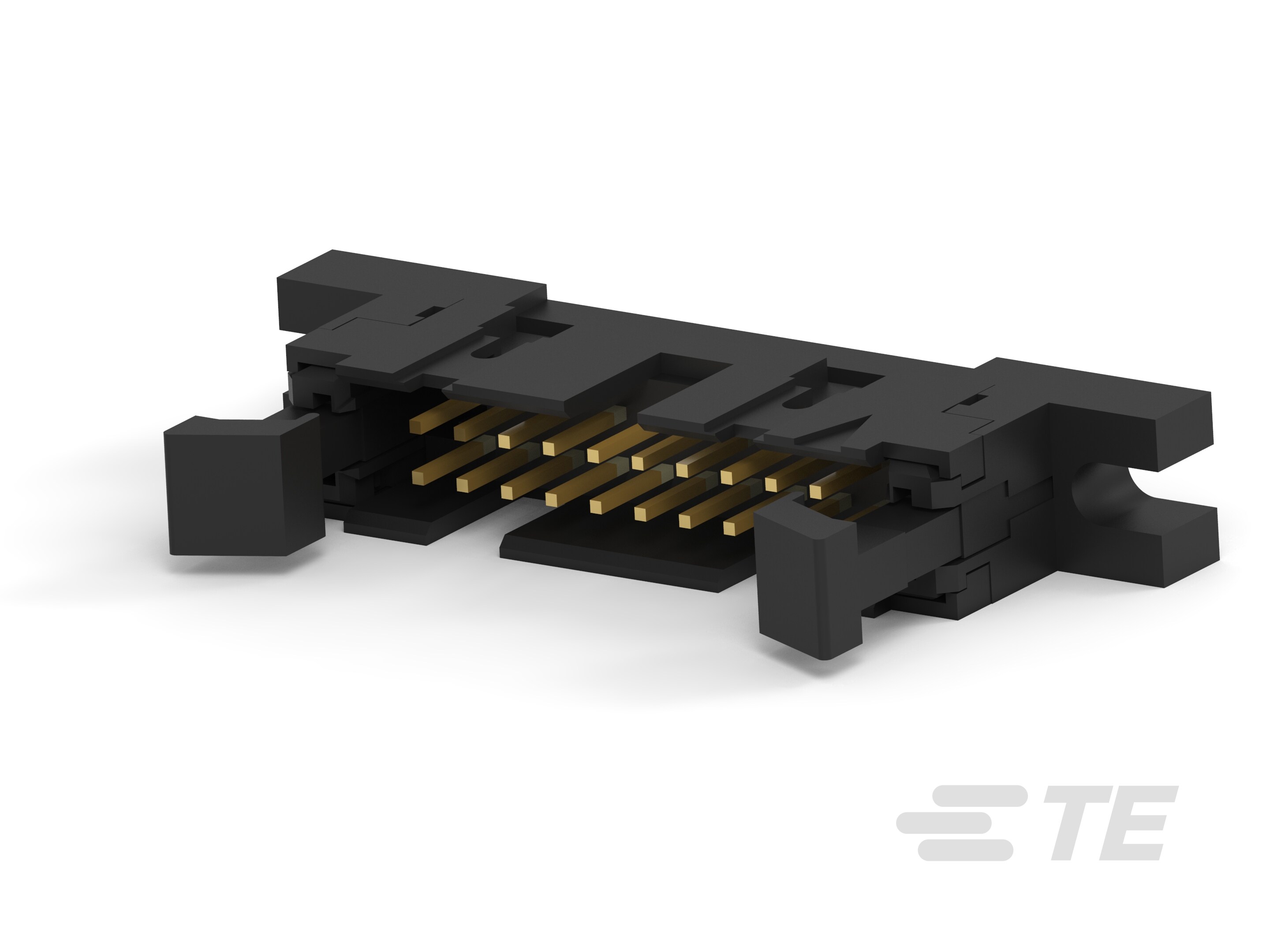

TE Connectivity AMP Connectors 1-111494-8	Ribbon Cable	Panel Mount	Feed Through	30 Áin	0.76 Ám	20	2.54 mm	0.1 "	Black	Plug	Male Pin	Gold	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	IDC

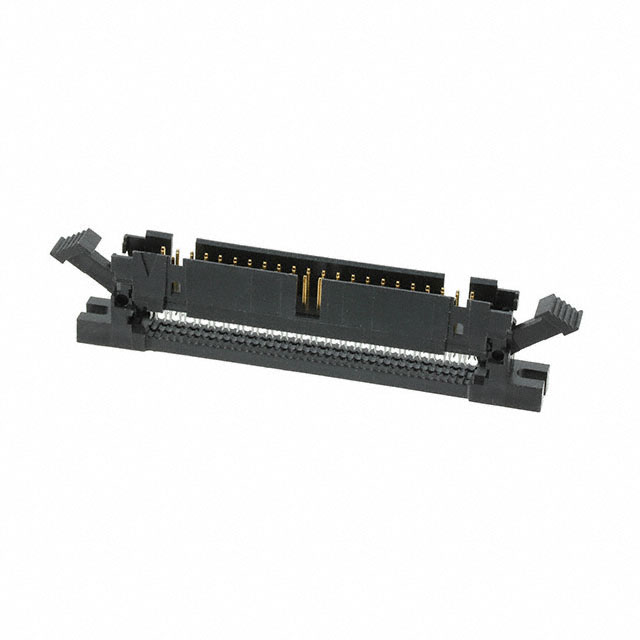

TE Connectivity AMP Connectors 2-111494-3	Ribbon Cable	Panel Mount	Feed Through	30 Áin	0.76 Ám	44	2.54 mm	0.1 "	Black	Plug	Male Pin	Gold	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	IDC

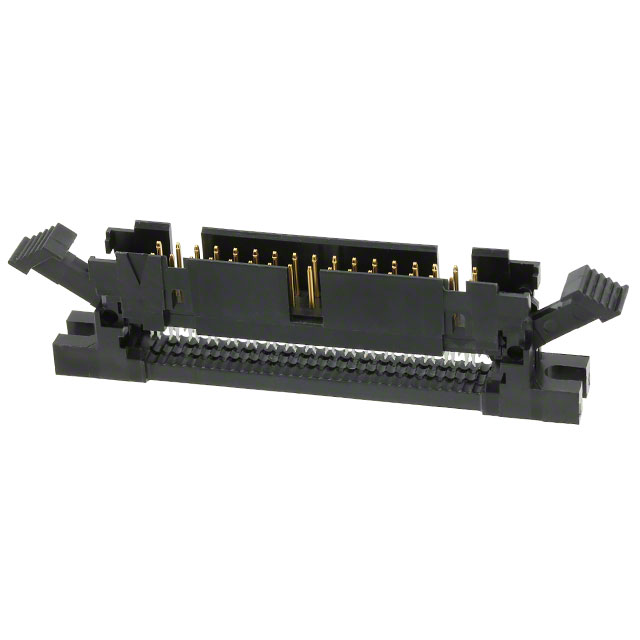

TE Connectivity AMP Connectors 2-111494-1	Ribbon Cable	Panel Mount	Feed Through	30 Áin	0.76 Ám		2.54 mm	0.1 "	Black	Plug	Male Pin	Gold	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	IDC	34
TE Connectivity AMP Connectors 2-111494-4	Ribbon Cable	Panel Mount	Feed Through	30 Áin	0.76 Ám	50	2.54 mm	0.1 "	Black	Plug	Male Pin	Gold	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2	IDC
