UNHZ20 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

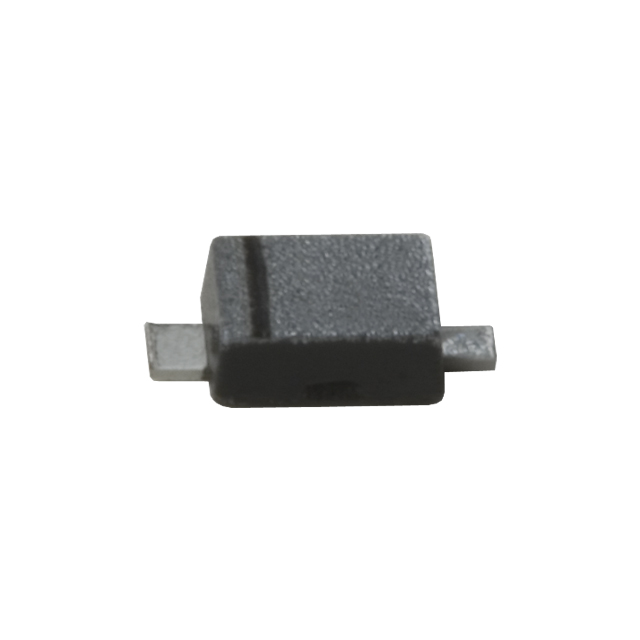

FUSE BRD MNT 1A 50VAC 50VDC 2SMD
| Part | DC Cold Resistance | Voltage Rating - DC | Current Rating (Amps) | Fuse Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Voltage Rating - AC | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 0.059 Ohms | 50 VDC | 1 A | Board Mount (Cartridge Style Excluded) | Surface Mount | -55 C | 125 °C | 1.7 mm | 0.049 " | 0.7 mm | 0.028 " | 0.067 in | 1.25 mm | 2-SMD Flat Lead | 50 V | Fast Blow |
Panasonic Electronic Components | 0.093 Ohms | 50 VDC | 700 mA | Board Mount (Cartridge Style Excluded) | Surface Mount | -55 C | 125 °C | 1.7 mm | 0.049 " | 0.7 mm | 0.028 " | 0.067 in | 1.25 mm | 2-SMD Flat Lead | 50 V | Fast Blow |
