THA1248 Series
Manufacturer: Delta Electronics
Beta
⌘K

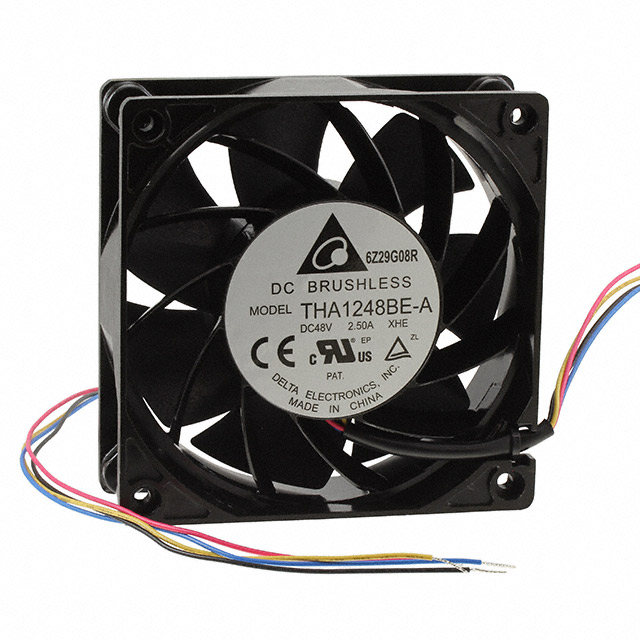

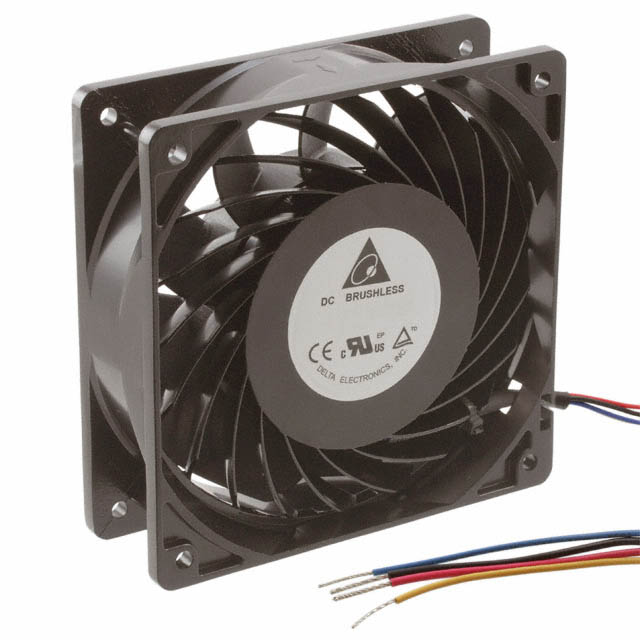

FAN AXIAL 120X38MM 48VDC WIRE
| Part | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Lifetime @ Temp. | Static Pressure | Static Pressure | Power (Watts) | Width [y] | Features | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Voltage - Rated | Fan Type | Termination | Bearing Type | Air Flow | Air Flow | Weight [custom] | Weight [custom] | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Aluminum | 75 VDC | 36 VDC | 1.68 A | 70000 Hrs | 3.394 in H2O | 845.4 Pa | 80.64 W | 38 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 9000 RPM | 70 °C | -10 °C | 120 mm | 120 mm | CE cURus TUV | 48 VDC | Tubeaxial | 4 Wire Leads | Ball | 8.48 m³/min | 302.8 CFM | 1.1 lbs | 500 g | 73.5 dB(A) |
 Delta Electronics | Plastic | Aluminum | 60 V | 36 VDC | 2.07 A | 70000 Hrs | 3.091 in H2O | 770 Pa | 99.36 W | 38 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 7600 RPM | 60 °C | -10 °C | 120 mm | 120 mm | CE cURus TUV | 48 VDC | Tubeaxial | 4 Wire Leads | Ball | 1.1 lbs | 500 g | 72 dB(A) |
