Ksl0 Series Series

Sealed Tact Switch Tactile Switches Sealed Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Tact Switch Tactile Switches Sealed Tact Switch

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Illumination	Switch Function	Contact Rating @ Voltage	Actuator Length, Right Angle [x]	Ingress Protection	Actuator Type	Outline [y]	Outline [x]	Operating Force	Actuator Orientation	Switch Travel [custom]	Mechanical Life
Littelfuse/Commercial Vehicle Products KSL0V431LFT	Through Hole Right Angle	125 °C	-40 °C	SPST-NO	PC Pin	Non-Illuminated	Off-Mom	0.01 A 32 VDC	8.53 mm	IP60	Standard	8 mm	8 mm	300 gf	Side Actuated
Littelfuse/Commercial Vehicle Products KSL0V431 LFTR	Through Hole Right Angle	125 °C	-40 °C	SPST-NO	PC Pin	Non-Illuminated	Off-Mom	0.01 A 32 VDC	8.53 mm	IP60	Standard	8 mm	8 mm	300 gf	Side Actuated	0.6 mm	100000 Cycles

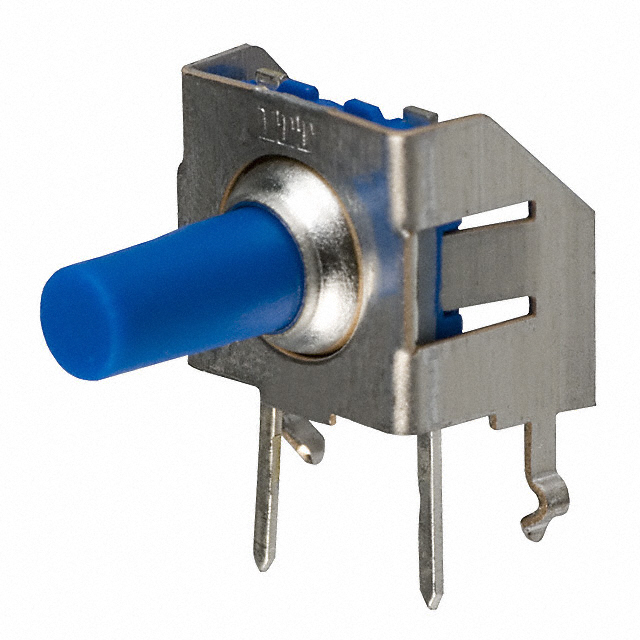

Littelfuse/Commercial Vehicle Products KSL0V411LFT	Through Hole Right Angle	85 °C	-40 °C	SPST-NO	PC Pin	Non-Illuminated	Off-Mom	0.05 A	8.53 mm	IP60	Standard	7.7 mm	8.77 mm	300 gf	Side Actuated
Littelfuse/Commercial Vehicle Products KSL0V411LFTR	Through Hole Right Angle	90 °C	-40 °C	SPST-NO	PC Pin	Non-Illuminated	Off-Mom	0.05 A	8.53 mm	IP60	Standard	8 mm	8 mm	300 gf	Side Actuated

Catalog

Sealed Tact Switch Tactile Switches Sealed Tact Switch

Key Features

• Designed for automatic or manual insertion

• Cambered terminals to ensure self retention

• Top or side actuated

Description

Featuring a top or side actuated design, the KSL series sealed tact switch from C&K comes equipped with cambered terminals to ensure self-retention – and can be used for automation or manual insertion. The switches’ durability makes them ideal for telecommunication networks and automation and industrial applications that need to withstand harsh environments.
