MRX402 Series

Catalog

MINIATURE POWER LEVEL ROTARY

Part	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Termination Style	Number of Positions	Index Stops	Contact Material	Circuit per Deck	Features	Actuator Type	Voltage Rating - AC	Angle of Throw	Contact Timing	Depth Behind Panel [z]	Voltage Rating - DC	Number of Decks [custom]	Mounting Type	Current Rating (Amps)
NKK Switches MRX402-BB	0.25 in	14.3 mm	PC Pin	2	Fixed	Silver Alloy	4PDT	Sealed - Flux Protection	Knob	125 V	45 °	Non-Shorting (BBM)	27.3 mm	30 V	1	Panel Mount Through Hole	1 A 2 A

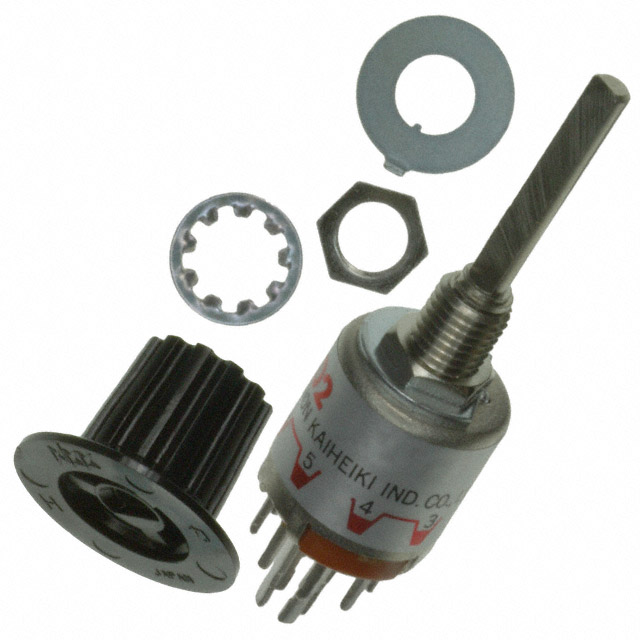

NKK Switches MRX402-A	0.25 in	13 mm	PC Pin	2	Fixed	Silver Alloy	4PDT	Sealed - Flux Protection	Knob	125 V	45 °	Non-Shorting (BBM)	27.3 mm	30 V	1	Panel Mount Through Hole	1 A 2 A
NKK Switches MRX402-BF	0.25 in	14.3 mm	PC Pin	2	Fixed	Silver Alloy	4PDT	Sealed - Flux Protection	Knob	125 V	45 °	Non-Shorting (BBM)	27.3 mm	30 V	1	Panel Mount Through Hole	1 A 2 A
NKK Switches MRX402-BH	0.25 in	14.3 mm	PC Pin	2	Fixed	Silver Alloy	4PDT	Sealed - Flux Protection	Knob	125 V	45 °	Non-Shorting (BBM)	27.3 mm	30 V	1	Panel Mount Through Hole	1 A 2 A
NKK Switches MRX402-BC	0.25 in	14.3 mm	PC Pin	2	Fixed	Silver Alloy	4PDT	Sealed - Flux Protection	Knob	125 V	45 °	Non-Shorting (BBM)	27.3 mm	30 V	1	Panel Mount Through Hole	1 A 2 A
