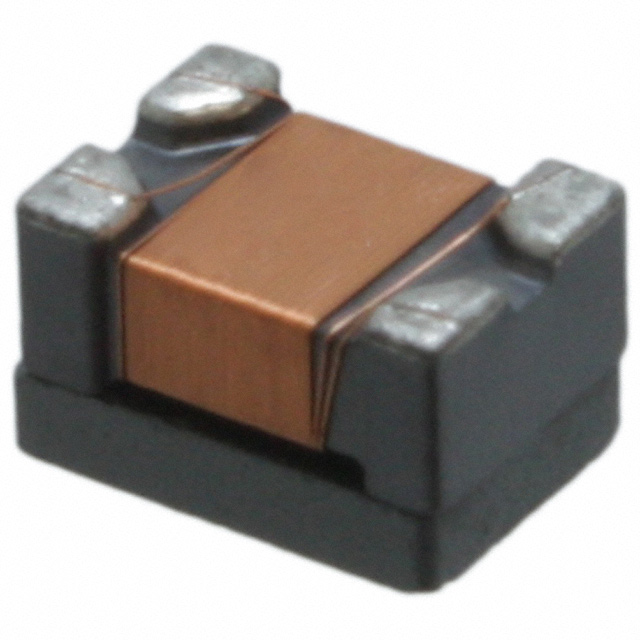

SRF4532 Series

Catalog

INDUCTOR, CHIP, COMMON MODE, 11 µH, SRF4532 SERIES, 700 OHM, 300 MA, 4.5MM X 3.2MM X 2.8MM

Part	Voltage Rating - DC	Height (Max) [z]	Height (Max) [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance @ Frequency	Filter Type	Impedance @ Frequency	Current Rating (Max) [Max]	Package / Case
Bourns Inc. SRF4532-110Y	50 VDC	3 mm	0.118 in	0.177 in	4.5 mm	3.2 mm	0.126 in	800 mOhm	2	Surface Mount	125 °C	-40 C	11 çH 100 kHz	Signal Line	700 Ohms	300 mA	Horizontal 4 PC Pad
Bourns Inc. SRF4532-101Y	50 VDC	3 mm	0.118 in	0.177 in	4.5 mm	3.2 mm	0.126 in	8.9 Ohm	2	Surface Mount	125 °C	-40 C	100 µH	Signal Line	5000 Ohms	200 mA	Horizontal 4 PC Pad
