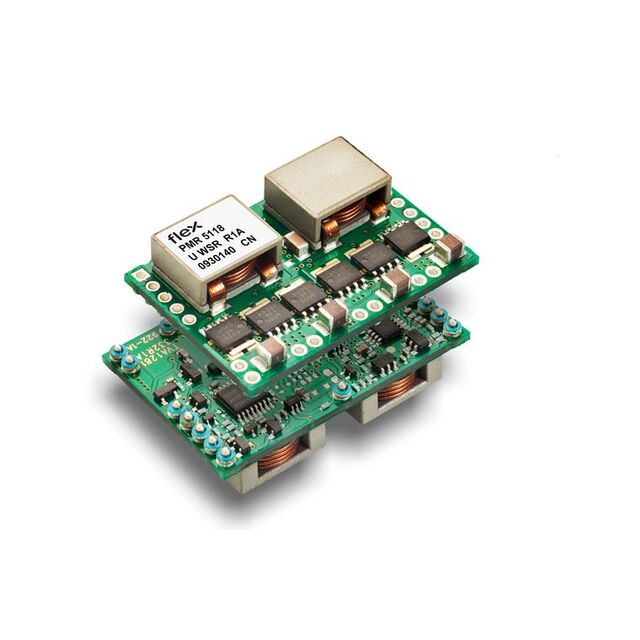

PMR511 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 0.7-3.6V 180W
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Power (Watts) | Features | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Max) [Max] | Mounting Type | Approval Agency | Efficiency | Applications | Control Features | Type | Standard Number | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 0.39 " | 1.02 in | 25.9 mm | 1.52 in | 38.6 mm | 9.8 mm | -40 °C | 85 °C | 22-SMD Module | 4.5 V | 50 A | 180 W | Adjustable Output Remote On/Off Remote Sense | 3.6 V | 0.7 V | 14 V | Surface Mount | CB CSA IEC TUV UL | 96.3 % | ITE (Commercial) | Active Low Enable | Non-Isolated PoL Module | 62368-1 | 1 |
Flex Power Modules | 0.39 " | 1.02 in | 25.9 mm | 1.52 in | 38.6 mm | 9.8 mm | -40 °C | 85 °C | 22-DIP Module | 4.5 V | 50 A | 180 W | Adjustable Output Remote On/Off Remote Sense | 3.6 V | 0.7 V | 14 V | Through Hole | CB CSA IEC TUV UL | 96.3 % | ITE (Commercial) | Active Low Enable | Non-Isolated PoL Module | 62368-1 | 1 |
