102974 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 23POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Fastening Type	Insulation Height [z]	Insulation Height [z]	Insulation Color	Style	Contact Length - Post [custom]	Contact Length - Post	Connector Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Mounting Type	Insulation Material	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions [custom]
TE Connectivity AMP Connectors 4-102974-0-23	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	23	Right Angle Through Hole	Thermoplastic	1	All	Tin-Lead	105 ░C	-65 ░C	Solder

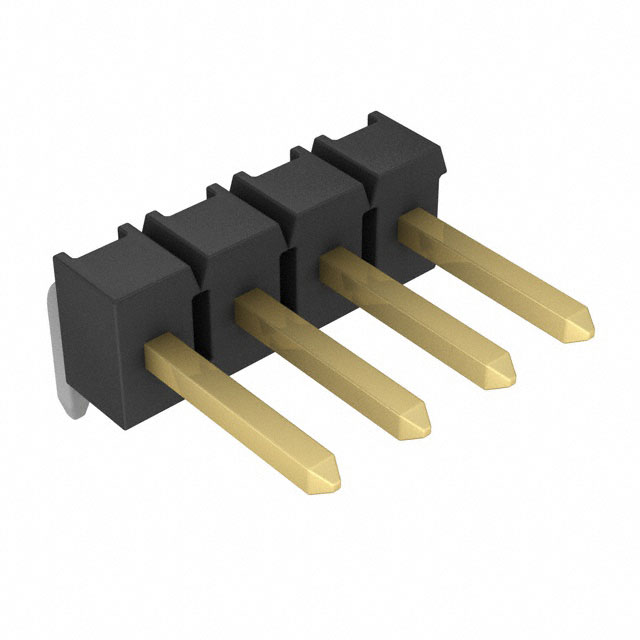

TE Connectivity AMP Connectors 4-102974-0-04	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	4	Right Angle Through Hole	Thermoplastic	1	All	Tin-Lead	105 ░C	-65 ░C	Solder
TE Connectivity AMP Connectors 9-102974-0-15	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	15	Right Angle Through Hole	Thermoplastic	1	All	Tin	105 ░C	-65 ░C	Solder
TE Connectivity AMP Connectors 4-102974-0-07	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	7	Right Angle Through Hole	Thermoplastic	1	All	Tin-Lead	105 ░C	-65 ░C	Solder

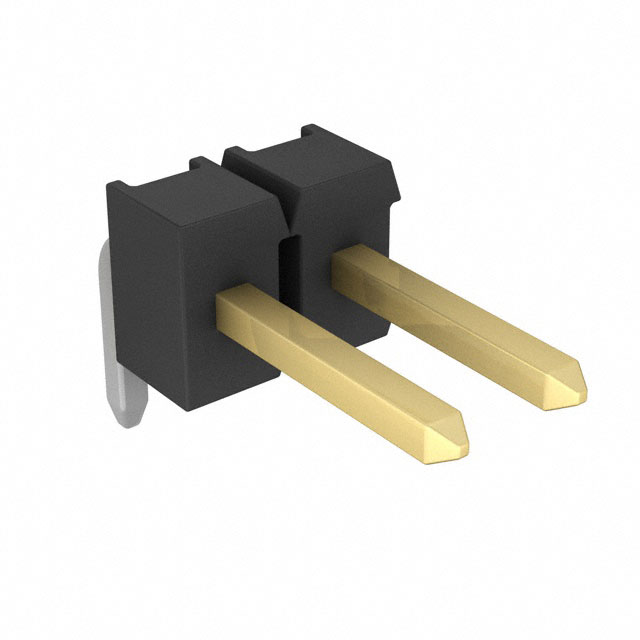

TE Connectivity AMP Connectors 9-102974-0-02	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	2	Right Angle Through Hole	Thermoplastic	1	All	Tin	105 ░C	-65 ░C	Solder
TE Connectivity AMP Connectors 4-102974-0-11	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	11	Right Angle Through Hole	Thermoplastic	1	All	Tin-Lead	105 ░C	-65 ░C	Solder
TE Connectivity AMP Connectors 9-102974-0-26	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	26	Right Angle Through Hole	Thermoplastic	1	All	Tin	105 ░C	-65 ░C	Solder
TE Connectivity AMP Connectors 4-102974-0-36	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold	36	Right Angle Through Hole	Thermoplastic	1	All	Tin-Lead	105 ░C	-65 ░C	Solder
TE Connectivity AMP Connectors 9-102974-0-31	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold		Right Angle Through Hole	Thermoplastic	1	All	Tin	105 ░C	-65 ░C	Solder	31
TE Connectivity AMP Connectors 9-102974-0-33	2.54 µm	100 µin	Copper Alloy	8.08 mm	0.318 in	3 A	Push-Pull	3.5 mm	0.138 "	Black	Board to Board Cable	0.11 in	2.79 mm	Header Breakaway	0.1 "	2.54 mm	UL94 V-0	Square	Male Pin	Unshrouded	0.38 µm	15 µin	Gold		Right Angle Through Hole	Thermoplastic	1	All	Tin	105 ░C	-65 ░C	Solder	33
