338095 Series

Catalog

CONNECTOR HOUSING, MICRO-MATCH, PLUG, 4 POSITIONS, 1.27 MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Note	Connector Type	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Color	Contact Termination	Contact Type	Mounting Type	Number of Positions
TE Connectivity Raychem Cable Protection 338095-4	-40 °C	105 ░C	2	Contacts Not Included	Plug	2.54 mm	0.1 in	4	Polyester Glass Filled	Red	Crimp	Male Pin	Free Hanging (In-Line)

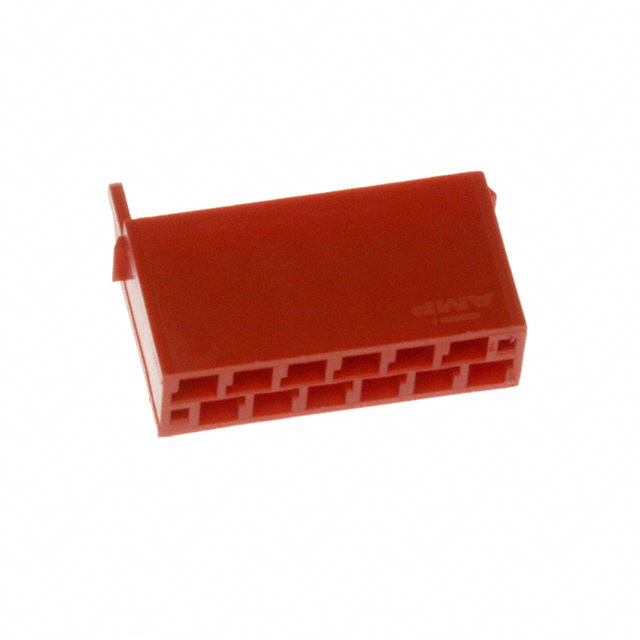

TE Connectivity Raychem Cable Protection 1-338095-2	-40 °C	105 ░C	2	Contacts Not Included	Plug	2.54 mm	0.1 in	12	Polyester Glass Filled	Red	Crimp	Male Pin	Free Hanging (In-Line)

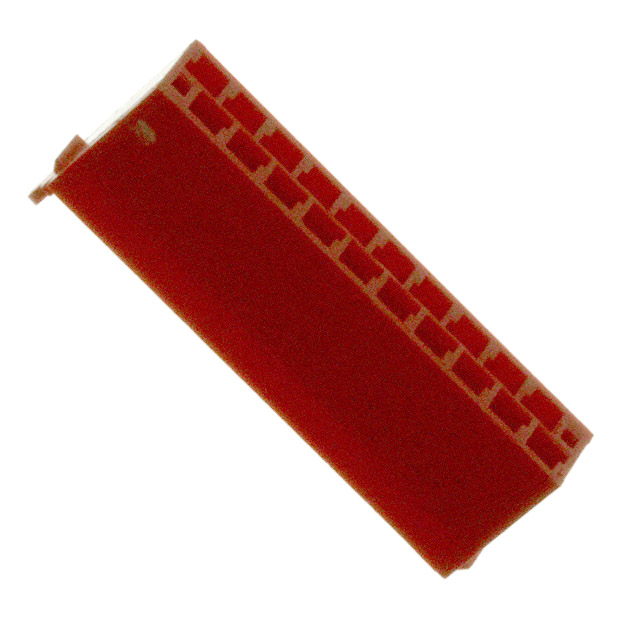

TE Connectivity Raychem Cable Protection 2-338095-0	-40 °C	105 ░C	2	Contacts Not Included	Plug	2.54 mm	0.1 in	20	Polyester Glass Filled	Red	Crimp	Male Pin	Free Hanging (In-Line)

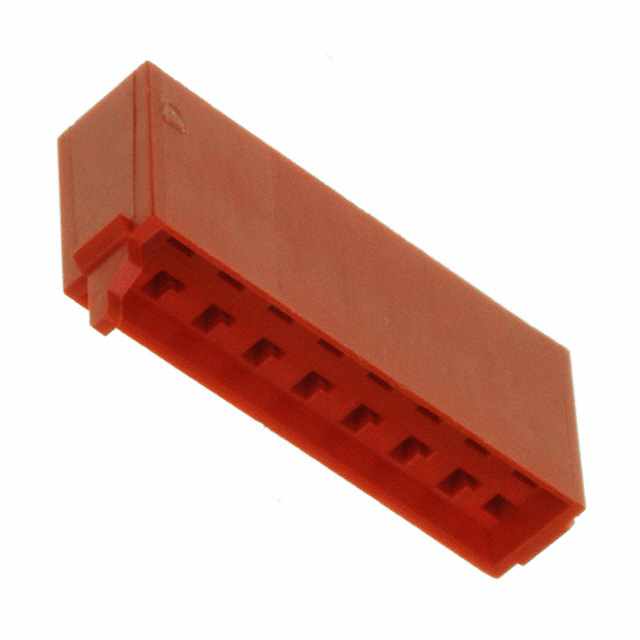

TE Connectivity Raychem Cable Protection 1-338095-6	-40 °C	105 ░C	2	Contacts Not Included	Plug	2.54 mm	0.1 in		Polyester Glass Filled	Red	Crimp	Male Pin	Free Hanging (In-Line)	16
TE Connectivity Raychem Cable Protection 1-338095-0	-40 °C	105 ░C	2	Contacts Not Included	Plug	2.54 mm	0.1 in	10	Polyester Glass Filled	Red	Crimp	Male Pin	Free Hanging (In-Line)
