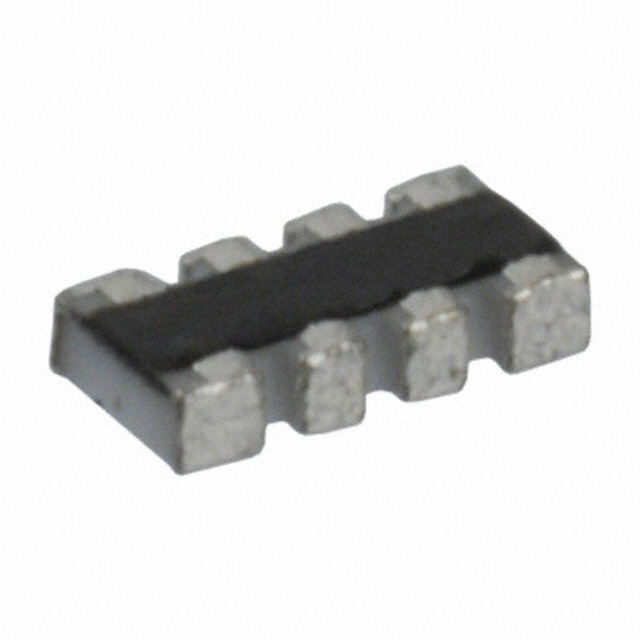

741X083 Series

Catalog

RES ARRAY 4 RES 4.75K OHM 0804

Part	Resistance (Ohms)	Grade	Temperature Coefficient	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Circuit Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Package / Case	Number of Resistors	Number of Pins	Qualification	Power Per Element	Resistance (Ohms) [custom]
CTS Resistor Products 741X0834751FP	4.75 kOhms	Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	1 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW
CTS Resistor Products 741X083101JP		Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW	100 Ohms
CTS Resistor Products 741X083560J		Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW	56 Ohms
CTS Resistor Products 741X083122JP	1.2 kOhms	Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW
CTS Resistor Products 741X083471JP	470 Ohms	Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW
CTS Resistor Products 741X08343R2FP	43.2 Ohms	Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	1 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW
CTS Resistor Products 741X08310R0FP		Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	1 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW	10 Ohms
CTS Resistor Products 741X083620JP	62 Ohms	Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW
CTS Resistor Products 741X083220JP	22 Ohms	Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW
CTS Resistor Products 741X083472J		Automotive	200 ppm/°C	Surface Mount	DDR SDRAM DRAM MDDR	-55 C	125 °C	0.55 mm	0.022 in	Isolated	0.039 in	1 mm	0.079 in	2 mm	5 %	0804 Convex Long Side Terminals	4	8	AEC-Q200	63 mW	4.7 kOhms
