EXB-F10 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

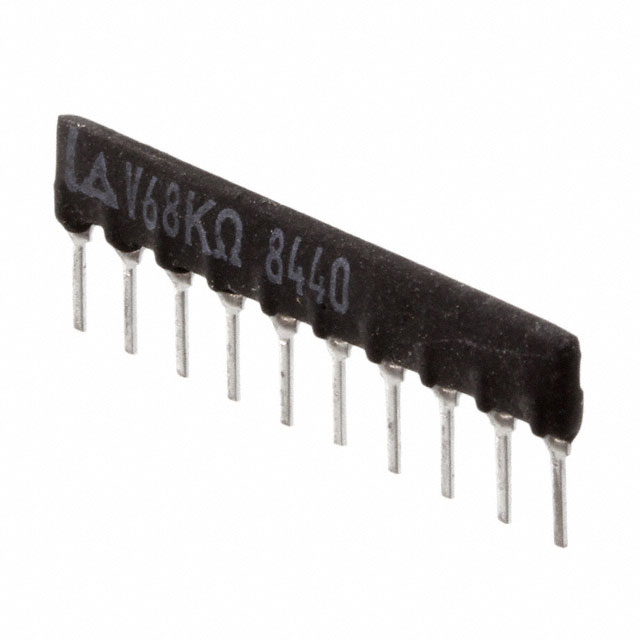

RES ARRAY 9 RES 680K OHM 10SIP
| Part | Mounting Type | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Tolerance | Number of Pins | Power Per Element | Number of Resistors | Circuit Type | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Through Hole | 10-SIP | 0.195 in | 4.95 mm | 10-SIP | 2 % | 10 | 125 mW | 9 | Bussed | -55 °C | 125 °C | 200 ppm/°C | 0.986 " | 25.04 mm | 2.54 mm | 0.1 in | 680 kOhms |
Panasonic Industrial Automation Sales | Through Hole | 10-SIP | 0.195 in | 4.95 mm | 10-SIP | 2 % | 10 | 200 mW | 5 | Isolated | -55 °C | 125 °C | 200 ppm/°C | 0.986 " | 25.04 mm | 2.54 mm | 0.1 in | 1.5 kOhms |
 Panasonic Industrial Automation Sales | Through Hole | 10-SIP | 0.195 in | 4.95 mm | 10-SIP | 2 % | 10 | 125 mW | 9 | Bussed | -55 °C | 125 °C | 200 ppm/°C | 0.986 " | 25.04 mm | 2.54 mm | 0.1 in | 68 kOhms |
Panasonic Industrial Automation Sales | Through Hole | 10-SIP | 0.195 in | 4.95 mm | 10-SIP | 2 % | 10 | 125 mW | 16 | Dual Terminator | -55 °C | 125 °C | 200 ppm/°C | 0.986 " | 25.04 mm | 2.54 mm | 0.1 in | 220 Ohms 270 Ohms |
