ED044PL Series

Catalog

CONN SOCKET PLCC 44POS

Part	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material - Post	Type	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Mounting Type	Pitch - Post	Pitch - Post	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Termination Post Length	Termination Post Length	Contact Finish - Post	Housing Material

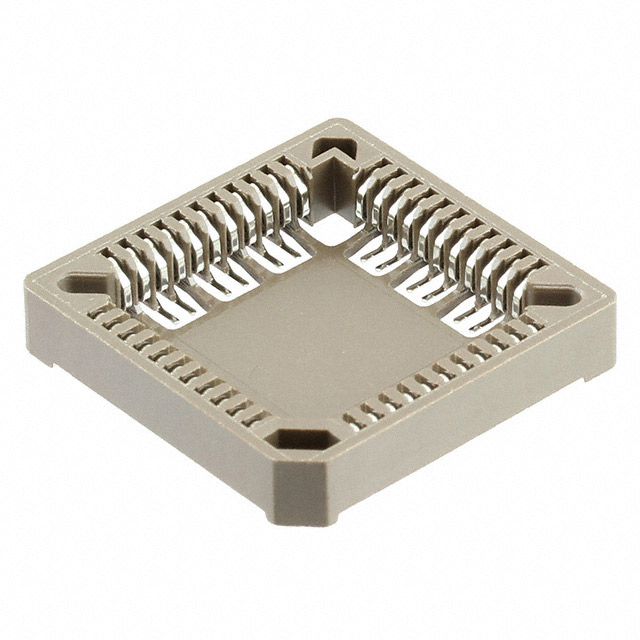

On Shore Technology Inc. ED044PLCZ-SM-N	1 A	UL94 V-0	30 mOhm	-55 C	105 ░C	Solder	Phosphor Bronze	PLCC	1.27 mm	0.05 in	Phosphor Bronze	Surface Mount	0.05 in	1.27 mm	Closed Frame	2 22	44

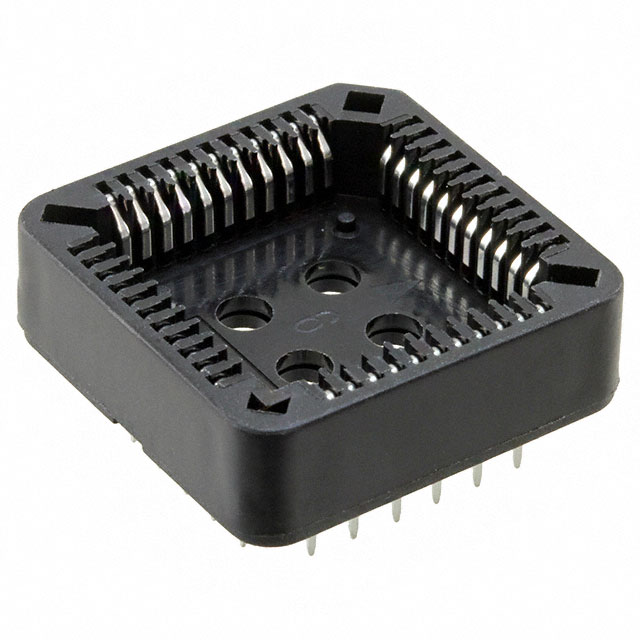

On Shore Technology Inc. ED044PLCZ	1 A	UL94 V-0	30 mOhm	-55 C	105 ░C	Solder	Phosphor Bronze	PLCC	2.54 mm	0.1 "	Phosphor Bronze	Through Hole	0.1 in	2.54 mm	Closed Frame	2 22	44	3 mm	0.118 in	Tin	Polybutylene Terephthalate (PBT)
