6403 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

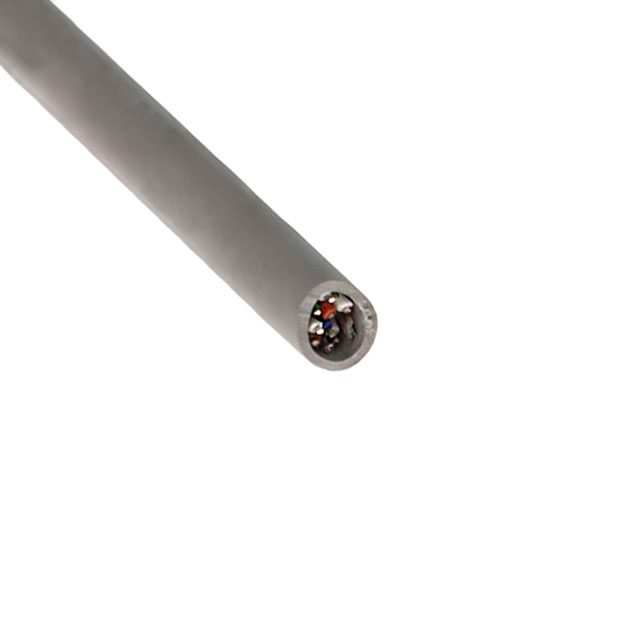

MULTI-PAIR 8COND 24AWG SLATE
| Part | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Ratings | Length [x] | Length [x] | Wire Gauge | Voltage | Conductor Material | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Braid Foil | -20 C | 80 C | Aluminum Copper Tinned | 32 AWG | 7 | 8.08 mm | 0.318 in | Drain Wire | UL Style 2919 | 500 ' | 152.4 m | 24 AWG | 300 V | Copper Tinned | Polyethylene (PE) | Multi-Pair | Poly-Vinyl Chloride (PVC) | 65 % 100 % | 0.889 mm | 0.035 in | Slate | 8 | ||
ALPHA WIRE | Braid Foil | -20 C | 80 C | Aluminum Copper Tinned | 32 AWG | 7 | 8.08 mm | 0.318 in | Drain Wire | UL Style 2919 | 24 AWG | 300 V | Copper Tinned | Polyethylene (PE) | Multi-Pair | Poly-Vinyl Chloride (PVC) | 65 % 100 % | 0.889 mm | 0.035 in | Slate | 8 | 1000 ft | 304.8 m |
