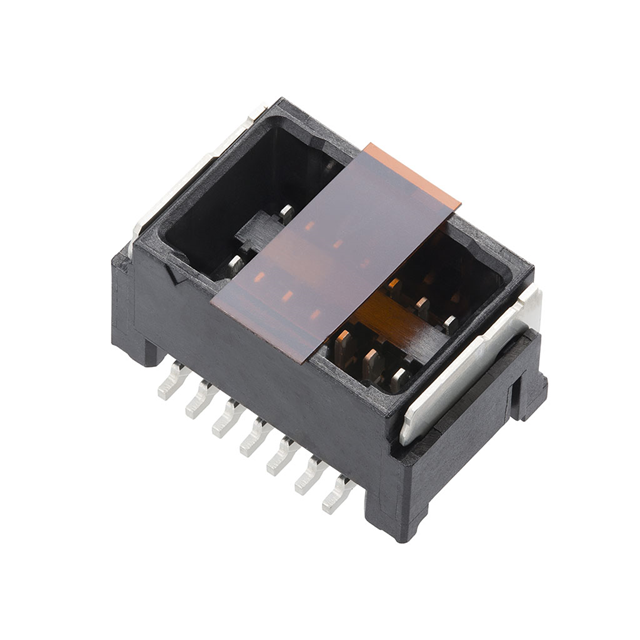

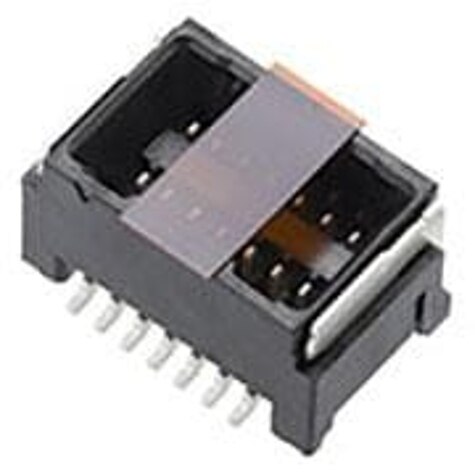

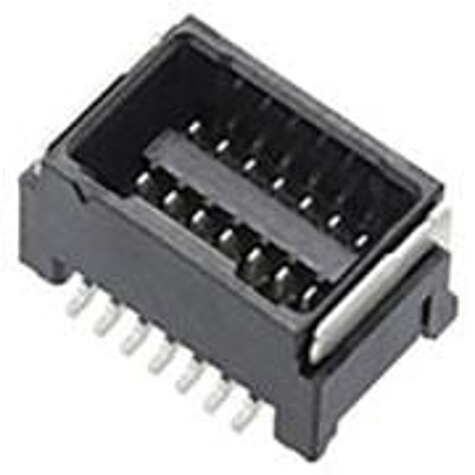

Headers & Wire Housings 1.25MM HDR 02X06P BLK
Headers & Wire Housings 1.25MM HDR 02X06P BLK
| Part | Connector Type | Contact Finish - Post | Insulation Material | Contact Type | Number of Positions Loaded | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Number of Rows | Termination | Mounting Type | Voltage Rating | Insulation Color | Fastening Type | Features | Contact Shape | Insulation Height | Insulation Height | Shrouding | Number of Positions | Style | Contact Material | Contact Finish - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Header | Tin-Bismuth | Nylon Polyamide (PA) | Male Pin | All | UL94 V-0 | -40 °C | 105 ░C | 1.25 mm | 0.049 in | 2 | Solder | Surface Mount | 50 VAC | Black | Latch Holder | Pick and Place Solder Retention | Rectangular | 0.285 in | 7.25 mm | Shrouded - 4 Wall | 4 | Board to Cable/Wire | Brass | Tin-Bismuth | Varies by Wire Gauge |
 Molex | Header | Tin-Bismuth | Nylon Polyamide (PA) | Male Pin | All | UL94 V-0 | -40 °C | 105 ░C | 1.25 mm | 0.049 in | 2 | Solder | Surface Mount | 50 VAC | Black | Latch Holder | Pick and Place Solder Retention | Rectangular | 0.285 in | 7.25 mm | Shrouded - 4 Wall | 8 | Board to Cable/Wire | Brass | Tin-Bismuth | Varies by Wire Gauge |
 Molex | Header | Tin-Bismuth | Nylon Polyamide (PA) | Male Pin | All | UL94 V-0 | -40 °C | 105 ░C | 1.25 mm | 0.049 in | 2 | Solder | Surface Mount | 50 VAC | Black | Latch Holder | Pick and Place Solder Retention | Rectangular | 0.285 in | 7.25 mm | Shrouded - 4 Wall | 14 | Board to Cable/Wire | Brass | Tin-Bismuth | Varies by Wire Gauge |
Molex | Header | Tin-Bismuth | Nylon Polyamide (PA) | Male Pin | All | UL94 V-0 | -40 °C | 105 ░C | 1.25 mm | 0.049 in | 2 | Solder | Surface Mount | 50 VAC | Black | Latch Holder | Pick and Place Solder Retention | Rectangular | 0.285 in | 7.25 mm | Shrouded - 4 Wall | 6 | Board to Cable/Wire | Brass | Tin-Bismuth | Varies by Wire Gauge |
Molex | Header | Tin-Bismuth | Nylon Polyamide (PA) | Male Pin | All | UL94 V-0 | -40 °C | 105 ░C | 1.25 mm | 0.049 in | 2 | Solder | Surface Mount | 50 VAC | Black | Latch Holder | Pick and Place Solder Retention | Rectangular | 0.285 in | 7.25 mm | Shrouded - 4 Wall | 12 | Board to Cable/Wire | Brass | Tin-Bismuth | Varies by Wire Gauge |
