AXE522 Series

Catalog

CONN SOCKET 22POS SMD GOLD

Part	Mounting Type	Contact Finish	Number of Positions	Number of Rows	Features	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]

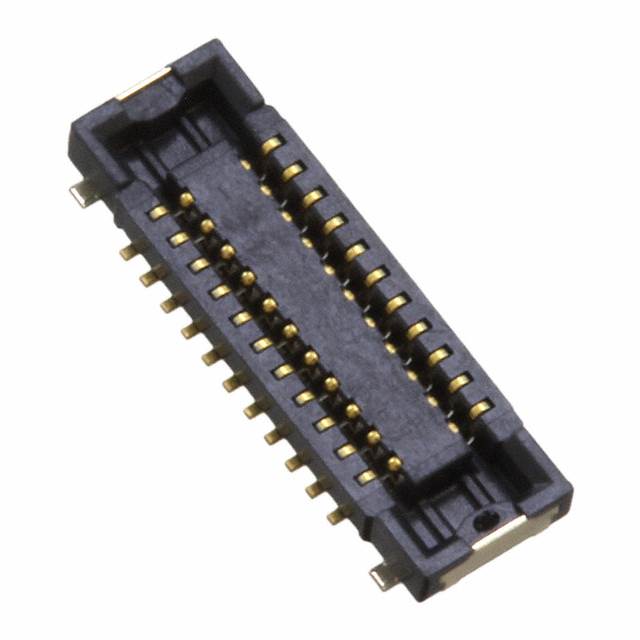

Panasonic Electric Works AXE522124	Surface Mount	Gold	22 positions	2	Solder Retention	0.8 mm 1 mm	Socket Center Strip Contacts	0.016 in	0.4 mm	0.03 in	0.75 mm
