MX34032U Series
Manufacturer: JAE Electronics
Beta
⌘K

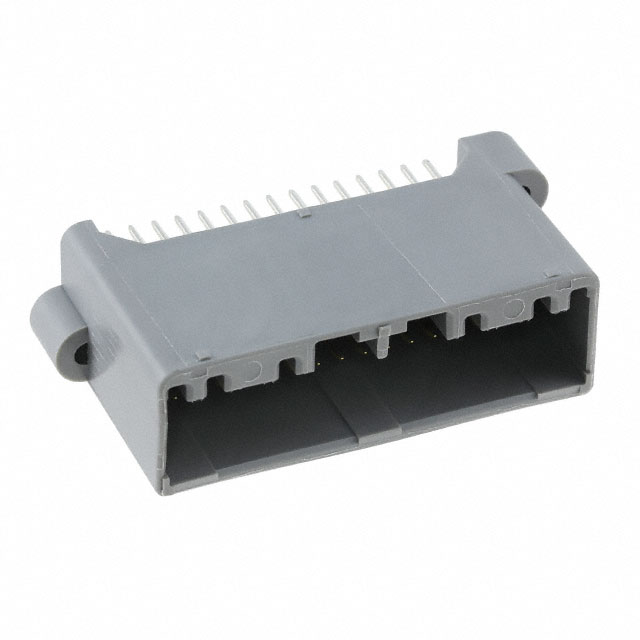

CONN HEADER VERT 32POS 2.2MM
| Part | Applications | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Material | Number of Positions Loaded | Termination | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Type | Connector Type | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Contact Finish - Post | Features | Number of Rows [custom] | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Style | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Through Hole | 0.087 in | 2.2 mm | Glass Filled Syndiotactic Polystyrene (SPS) | Brass | All | Solder | 0.925 in | 23.5 mm | 85 °C | -40 C | Square | 0.118 in | 3 mm | Gray | Male Pin | Header | 0.303 in | 7.7 mm | 3 A | Tin | Mounting Flange | 2 | Locking Ramp | 0.126 " | 3.2 mm | Board to Cable/Wire | Shrouded - 4 Wall |
