333-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K

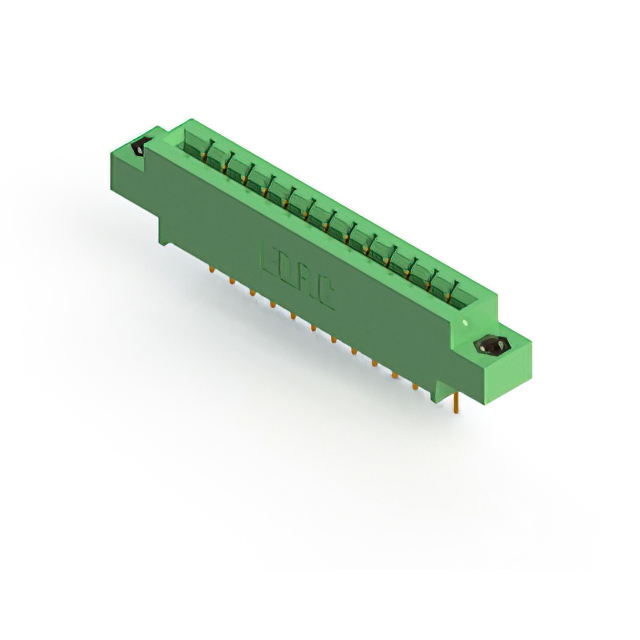

CONN EDGE SGL FMALE 13POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Type | Termination | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Material | Card Type | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Wire Wrap | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Wire Wrap | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Wire Wrap | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Wire Wrap | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Polyester Thermoplastic | 13 | Green | -40 C | 105 ░C | Female | Cantilever | Solder | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Copper Alloy | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | Single | Through Hole | 0.25 Ám | 10 Áin | 13 | Floating Bobbin Flush Mount |
