DM3CQ Series

Catalog

SWITCH LIMIT SPDT 3A 125V

Part	Operating Position	Operating Position	Switch Function	Current Rating (Amps)	Operating Force	Electrical Life	Termination Style	Voltage Rating - DC	Pretravel	Pretravel	Voltage Rating - AC	Actuator Type	Circuit	Mechanical Life	Release Force	Overtravel [custom]	Overtravel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Mounting Type

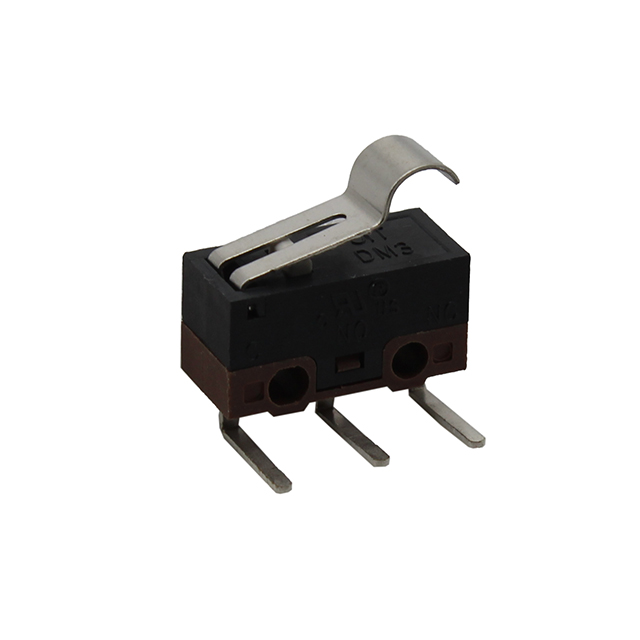

CIT Relay and Switch DM3CQF1005L04	0.354 in 0.355 in	9 mm	On-Mom	3 A	40 gf	10000 Cycles	PC Pin	30 V	0.071 "	1.8 mm	125 V	Lever Simulated Roller	SPDT	100000 Cycles	15 gf	0.035 "	0.9 mm	85 °C	-40 C	0.025 in	0.6 mm	Right Angle Through Hole

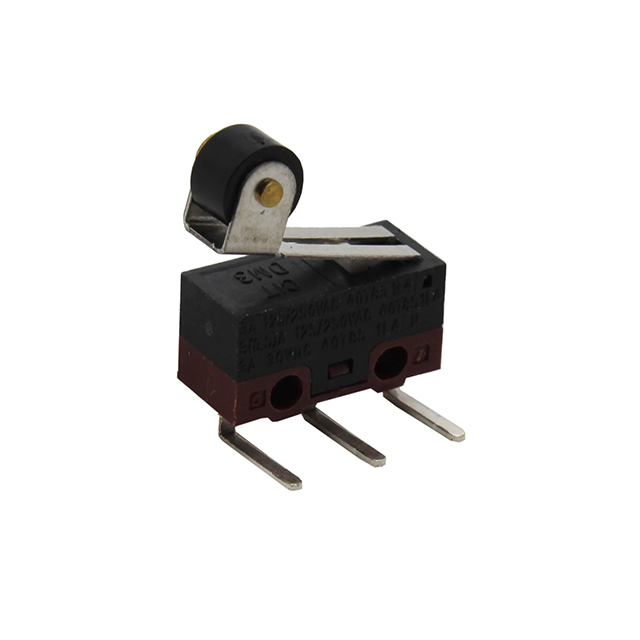

CIT Relay and Switch DM3CQF1004L03	0.508 in	12.9 mm	On-Mom	3 A	40 gf	10000 Cycles	PC Pin	30 V	0.071 "	1.8 mm	125 V	Lever Roller	SPDT	100000 Cycles	15 gf	0.031 "	0.8 mm	85 °C	-40 C	0.025 in	0.6 mm	Right Angle Through Hole

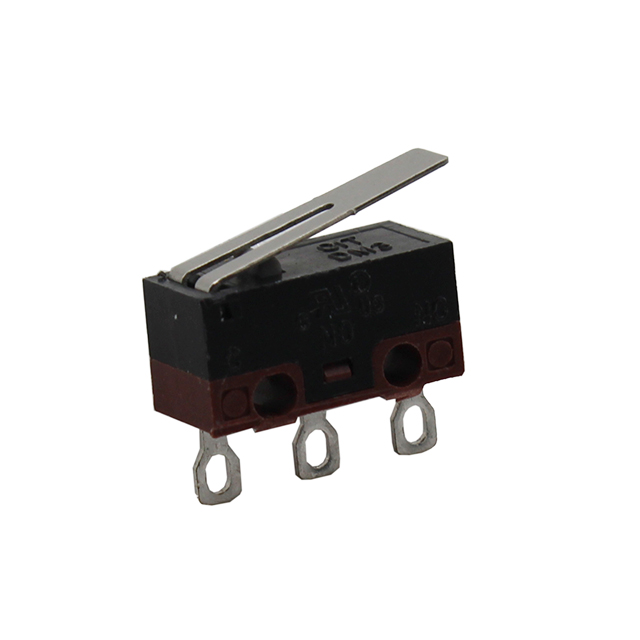

CIT Relay and Switch DM3CQF1002L01	0.281 in	7.15 mm	On-Mom	3 A	35 gf	10000 Cycles	Solder Lug	30 V	0.087 in	2.2 mm	125 V	Lever Straight	SPDT	100000 Cycles	15 gf	0.035 "	0.9 mm	85 °C	-40 C	0.027 in	0.7 mm	Chassis Mount

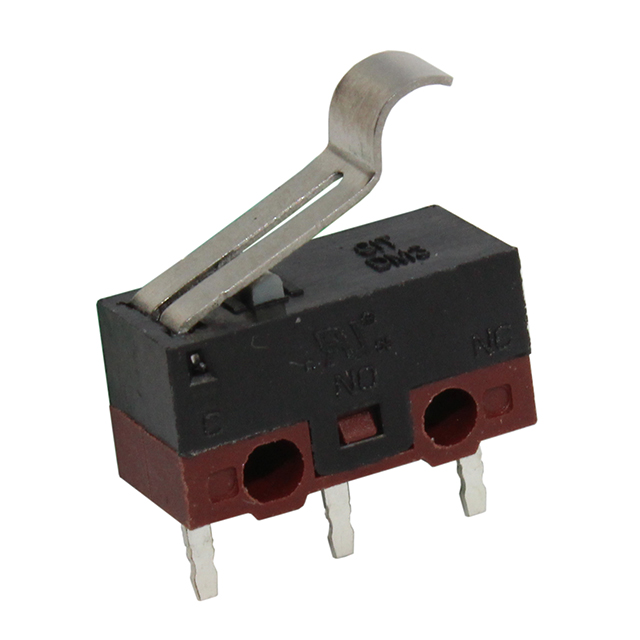

CIT Relay and Switch DM3CQF1003L04	0.354 in 0.355 in	9 mm	On-Mom	3 A	40 gf	10000 Cycles	PC Pin	30 V	0.071 "	1.8 mm	125 V	Lever Simulated Roller	SPDT	100000 Cycles	15 gf	0.035 "	0.9 mm	85 °C	-40 C	0.025 in	0.6 mm	Through Hole
