C380 Series

Catalog

SCR 600V 450A PRESS-PAK

Part	Voltage - Gate Trigger (Vgt) (Max)	Current - Off State (Max)	Current - Gate Trigger (Igt) (Max)	Voltage - Off State	Mounting Type	Voltage - On State (Vtm) (Max)	SCR Type	Current - On State (It (RMS)) (Max)	Current - On State (Max)	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge Type	Current - Non Rep. Surge (Itsm)	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Package Name
Powerex Inc. C380MX555	3 V	20 mA	150 mA	600 V	Clamp On	2.85 V	Standard Recovery	450 A	300 A	50Hz 60Hz	Itsm	2900 A 3200 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380C	3 V	20 mA	150 mA	300 V	Clamp On	2.85 V	Standard Recovery	400 A	250 A	50Hz 60Hz	Itsm	3200 A 3500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)

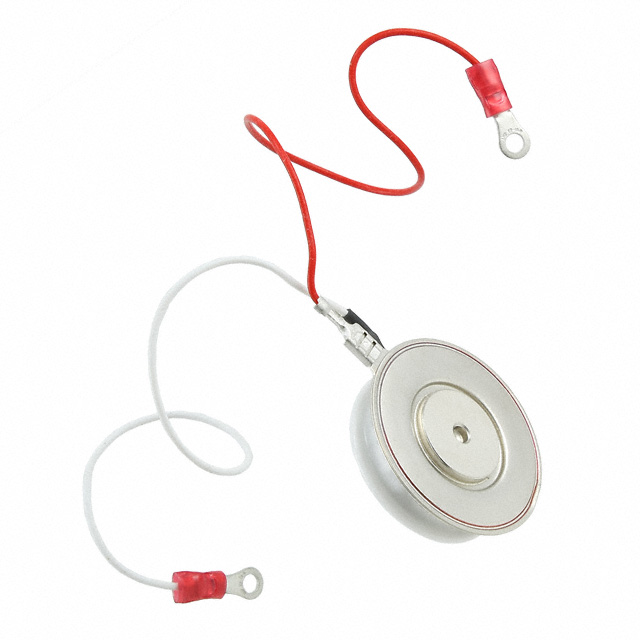

Powerex Inc. C380PB	3 V	20 mA	150 mA	1200 kV	Clamp On	2.85 V	Standard Recovery	400 A	250 A	50Hz 60Hz	Itsm	3200 A 3500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380MX500	3 V	20 mA	150 mA	600 V	Clamp On	2.85 V	Standard Recovery	500 A	310 A	50Hz 60Hz	Itsm	5000 A 5500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380E	3 V	20 mA	150 mA	500 V	Clamp On	2.85 V	Standard Recovery	400 A	250 A	50Hz 60Hz	Itsm	3200 A 3500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380P	3 V	20 mA	150 mA	1 kV	Clamp On	2.85 V	Standard Recovery	400 A	250 A	50Hz 60Hz	Itsm	3200 A 3500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380N	3 V	20 mA	150 mA	800 V	Clamp On	2.85 V	Standard Recovery	400 A	250 A	50Hz 60Hz	Itsm	3200 A 3500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380PBX555	3 V	20 mA	150 mA	1200 kV	Clamp On	2.85 V	Standard Recovery	450 A	300 A	50Hz 60Hz	Itsm	2900 A 3200 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
Powerex Inc. C380BX500	3 V	20 mA	150 mA	200 V	Clamp On	2.85 V	Standard Recovery	500 A	310 A	50Hz 60Hz	Itsm	5000 A 5500 A	A-PUK TO-200AB	125 °C	-40 °C	Press-Pak (Pow-R-Disc)
