LAH9GP Series

Catalog

LED OSLON AMBER 617NM 3SMD

Part	Temperature - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Wavelength	Wavelength [Max]	Wavelength [Min]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Luminous Flux @ Current/Temperature	Package / Case	Color	Lumens/Watt @ Current - Test	Thermal Resistance of Package	Package / Case

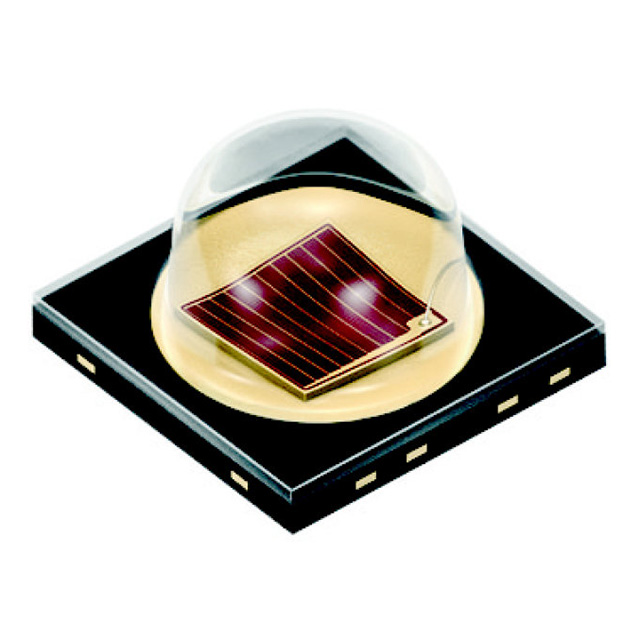

ams-OSRAM USA INC. LA H9GP-JYKZ-24-H29C-350-R18-Z	25 °C	2.41 mm	0.095 in	90 °	3-SMD	2.2 V	1 A	617 nm	624 nm	612 nm	350 mA	0.148 in	0.148 in	3.75 mm	3.75 mm	Surface Mount	82 lm	3-SMD No Lead	Amber	106 lm/W
ams-OSRAM USA INC. LA H9GP-JYKY-24-1-350-R18-Z	25 °C	2.41 mm	0.095 in	90 °	SMD	2.2 V	1 A	618 nm	624 nm	612 nm	350 mA	0.148 in	0.148 in	3.75 mm	3.75 mm	Surface Mount	75 lm	1515	Amber	97 lm/W	6.5 °C/W	3838 Metric
