846-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

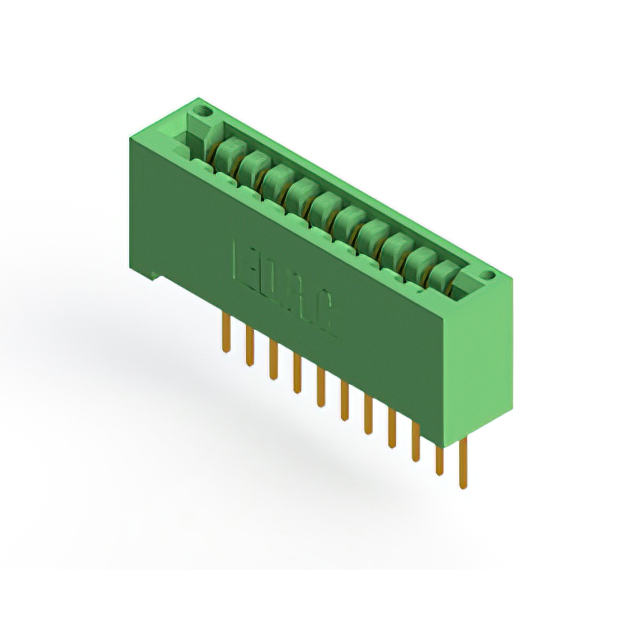

CONN EDGE SGL FMALE 11POS 0.125
| Part | Termination Rows | Material - Insulation | Read Out | Number of Positions/Bay/Row | Card Type | Number of Positions | Contact Type | Termination | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Material | Gender | Contact Finish | Mounting Type | Color | Card Thickness [Max] | Card Thickness [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Wire Wrap | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Solder | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Solder | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Solder | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Right Angle Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Solder | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Wire Wrap | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 " | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Solder | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2.95 mm | 0.116 " | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Right Angle Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Wire Wrap | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Solder | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Right Angle Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | 11 | Non Specified - Single Edge | 11 | Cantilever | Wire Wrap | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 125 °C | -40 C | 1 | Copper Alloy | Female | Gold | Through Hole | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening |
