TFLB Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 30A 32VAC 32VDC
| Part | Voltage Rating - AC | Voltage Rating - DC | Current Rating (Amps) | Fuse Type | Response Time | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Color | Approval Agency | Breaking Capacity @ Rated Voltage | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

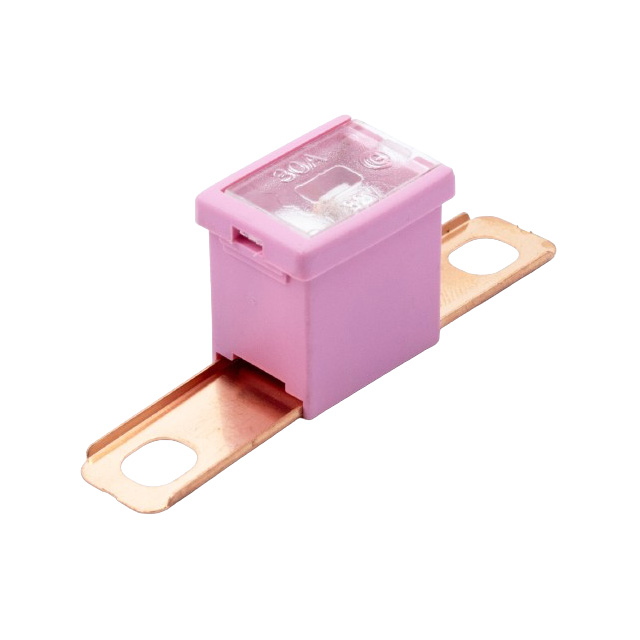

 OptiFuse | 32 V | 32 V | 30 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | Pink | ISO SAE | 1 kA | Auto Link | Bolt Mount |

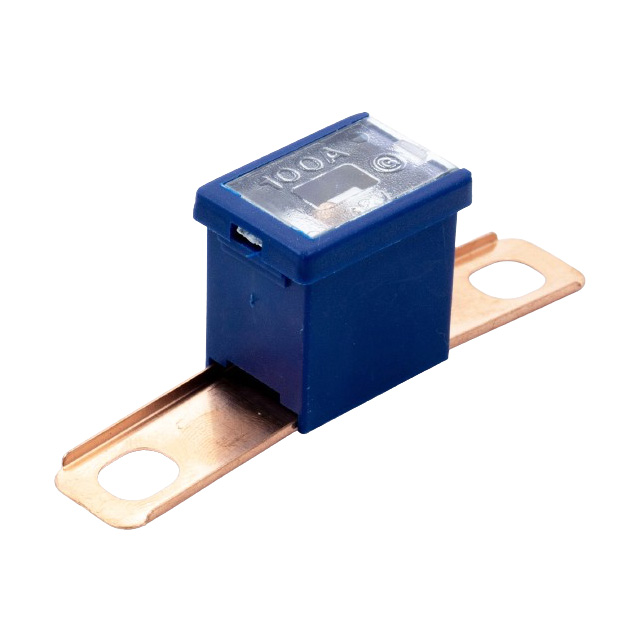

 OptiFuse | 32 V | 32 V | 100 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | Blue | ISO SAE | 1 kA | Auto Link | Bolt Mount |

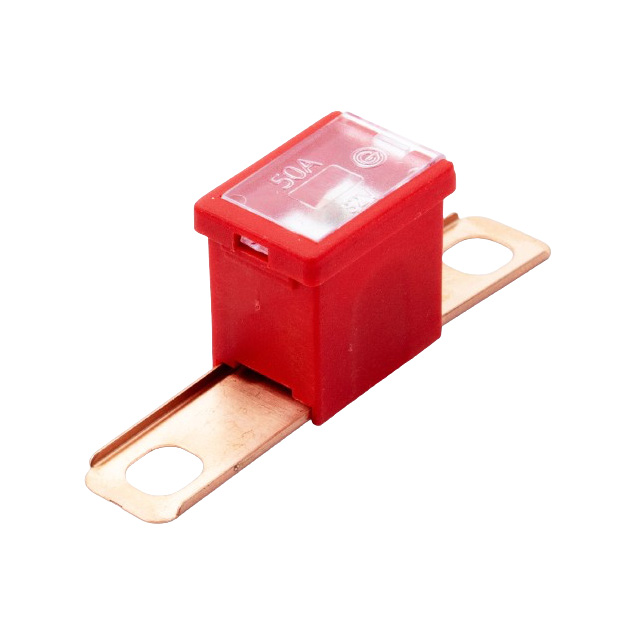

 OptiFuse | 32 V | 32 V | 50 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | Red | ISO SAE | 1 kA | Auto Link | Bolt Mount |

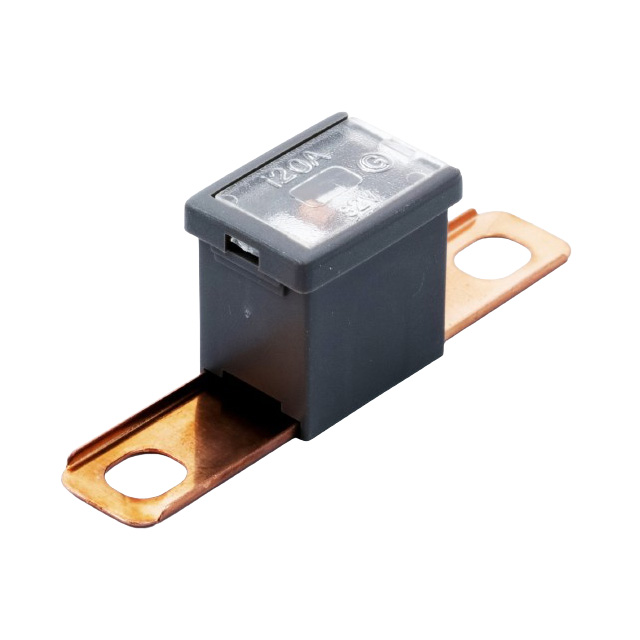

 OptiFuse | 32 V | 32 V | 120 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | White | ISO SAE | 1 kA | Auto Link | Bolt Mount |

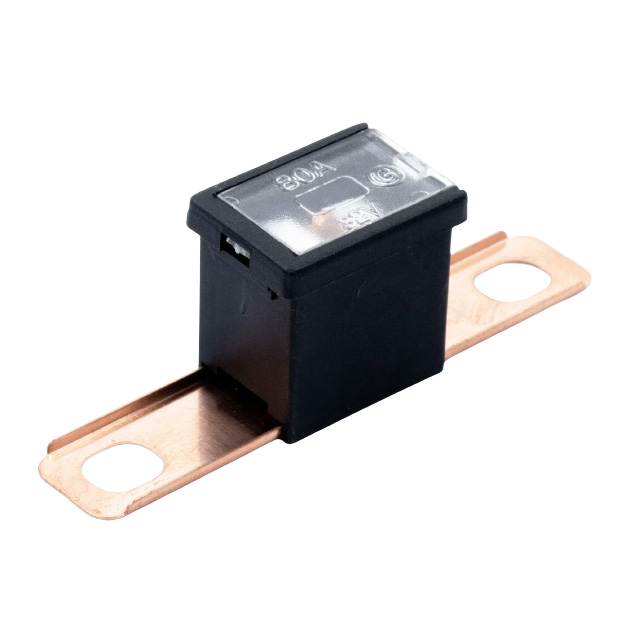

 OptiFuse | 32 V | 32 V | 80 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | Black | ISO SAE | 1 kA | Auto Link | Bolt Mount |

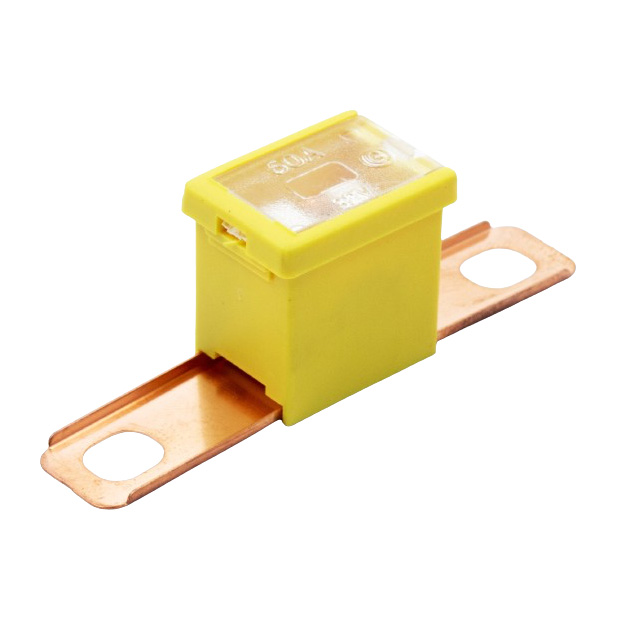

 OptiFuse | 32 V | 32 V | 60 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | Yellow | ISO SAE | 1 kA | Auto Link | Bolt Mount |

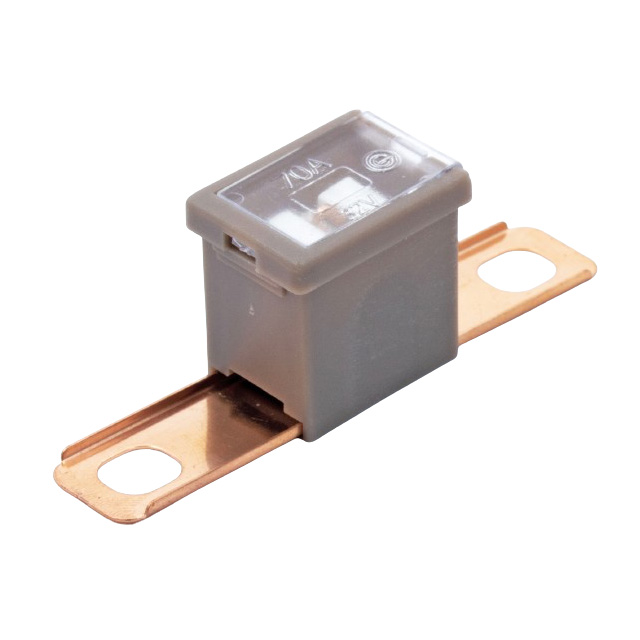

 OptiFuse | 32 V | 32 V | 70 A | Automotive | Fast Blow | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | Brown | ISO SAE | 1 kA | Auto Link | Bolt Mount |
