HLMP-6400 Series

Catalog

LED YELLOW DIFFUSED AXIAL T/H

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lens Transparency	Mounting Type	Wavelength - Peak	Wavelength - Dominant	Viewing Angle	Lens Style	Millicandela Rating	Color	Current - Test	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Lens Size [diameter]	Configuration	Lens Color	Lens Type	Voltage Rating	Current
Broadcom Limited HLMP-6400-JL000	Axial	2 V	Diffused	Through Hole	583 nm	585 nm	28 °	Round with Domed Top	4 mcd	Yellow	10 mA	2.92 mm	2.09 mm	2.21 mm	Axial Flat Leads	1.91 mm Dia

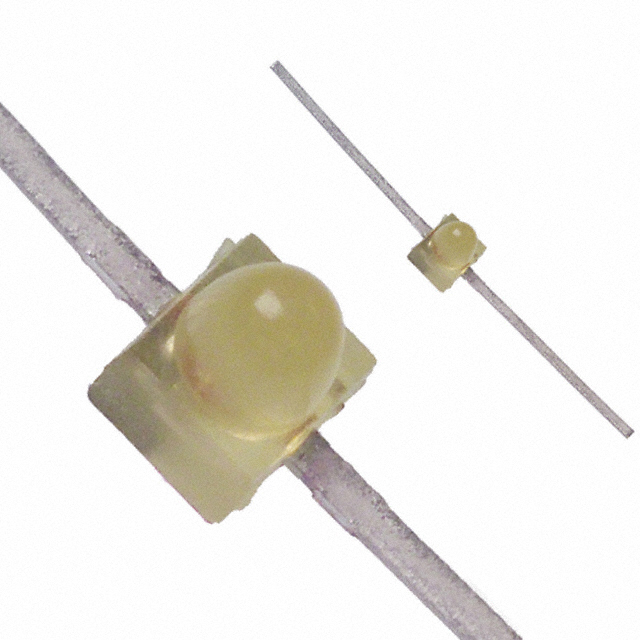

Broadcom Limited HLMP-6400	Axial	2 V	Diffused	Axial Through Hole	583 nm	585 nm	90 °	Round with Domed Top	9 mcd	Yellow	10 mA	2.92 mm	2.21 mm	2.08 mm	Axial Flat Leads	1.91 mm Dia	Standard	Yellow
Broadcom Limited HLMP-6400-F0031	Z-Bend	2 V	Diffused	Surface Mount	583 nm	585 nm	90 °	Round with Domed Top	9 mcd	Yellow	10 mA	2.92 mm	2.21 mm	2.08 mm	2-SMD Z-Bend	1.78 mm	Standard	Yellow
Broadcom Limited HLMP-6400-JK000	Axial	2 V	Diffused	Axial Through Hole	583 nm	585 nm	90 °	Round with Domed Top	8.25 mcd	Yellow	10 mA	2.92 mm	2.21 mm	2.08 mm	Axial Flat Leads	1.78 mm	Standard	Yellow

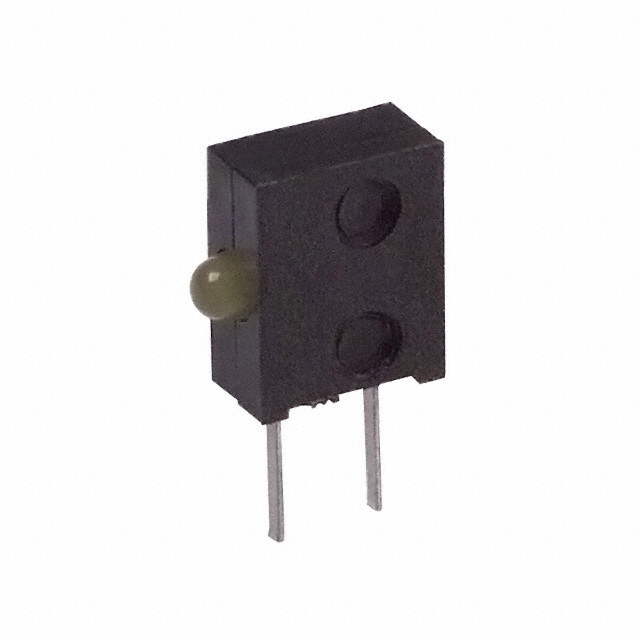

Broadcom Limited HLMP-6400-F0010				Right Angle Through Hole	583 nm		90 °	Round with Domed Top	9 mcd	Yellow						1.91 mm Dia	Single		Diffused Tinted	2 V	10 mA
Broadcom Limited HLMP-6400-F0021	Yoke Lead	2 V	Diffused	Surface Mount	583 nm	585 nm	90 °	Round with Domed Top	9 mcd	Yellow	10 mA	2.92 mm	2.21 mm	2.08 mm	2-SMD Yoke Bend	1.78 mm	Standard	Yellow
