46114 Series

1.27mm, 12.00mm Pitch, EXTreme LPHPower Receptacle Header, Vertical, 4 Power Contacts, 24 Signal Contacts, Select Gold (Au) Plating, with BMI Guides

Manufacturer: Molex

Catalog

1.27mm, 12.00mm Pitch, EXTreme LPHPower Receptacle Header, Vertical, 4 Power Contacts, 24 Signal Contacts, Select Gold (Au) Plating, with BMI Guides

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating	Connector Style	Voltage Rating	Color	Connector Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish	Mounting Type	Number of Rows	Termination	Number of Positions	Features
Molex 461142361	0.76 Ám	30 Áin	-40 °C	105 ░C	All	UL94 V-0	LPHPower	250 VDC	Black	Receptacle Outer Shroud Contacts	2	36	Gold	Through Hole	2	Press-Fit	38
Molex 461142200	0.76 Ám	30 Áin	-40 °C	105 ░C	All	UL94 V-0	LPHPower	250 VDC	Black	Receptacle Outer Shroud Contacts	2	20	Gold	Through Hole	2	Press-Fit	22 positions	Guide Pin
Molex 461148361	0.76 Ám	30 Áin	-40 °C	105 ░C	All	UL94 V-0	LPHPower	250 VDC	Black	Receptacle Outer Shroud Contacts	8	36	Gold	Through Hole	2	Press-Fit	44
Molex 461146360	0.76 Ám	30 Áin	-40 °C	105 ░C	All	UL94 V-0	LPHPower	250 VDC	Black	Receptacle Outer Shroud Contacts	6	36	Gold	Through Hole	2	Press-Fit	42	Guide Pin
Molex 461142401	0.76 Ám	30 Áin	-40 °C	105 ░C	All	UL94 V-0	LPHPower	250 VDC	Black	Receptacle Outer Shroud Contacts	2	40	Gold	Through Hole	2	Press-Fit	42
Molex 461146320	0.76 Ám	30 Áin	-40 °C	105 ░C	All	UL94 V-0	LPHPower	250 VDC	Black	Receptacle Outer Shroud Contacts	6	32	Gold	Through Hole	2	Press-Fit	38	Guide Pin
Molex 461144280

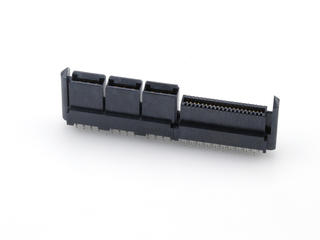

Molex 461146400

1.27mm, 12.00mm Pitch, EXTreme LPHPower Receptacle Header, Vertical, 4 Power Contacts, 24 Signal Contacts, Select Gold (Au) Plating, with BMI Guides
