5650-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .022-.034" .295"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Hole Diameter	Mounting Hole Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Accepts Square Pin Size	Accepts Square Pin Size	Socket Depth	Socket Depth	Termination	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 5650-0-19-01-16-27-10-0	-55 C	125 °C	Gold	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	7.49 mm	0.295 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	30 Áin	0.76 Ám	2.16 mm	0.085 "
Mill-Max Manufacturing Corp. 5650-0-19-15-16-14-10-0	-55 C	125 °C	Gold	0.067 in	1.7 mm	0.031 in	0.79 mm	Beryllium Copper	0.025 in	0.64 mm	3.18 mm	0.125 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	10 Áin	0.25 Ám	2.16 mm	0.085 "
Mill-Max Manufacturing Corp. 5650-0-19-01-16-14-10-0	-55 C	125 °C	Gold	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	7.49 mm	0.295 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	10 Áin	0.25 Ám	2.16 mm	0.085 "
Mill-Max Manufacturing Corp. 5650-0-19-80-16-14-10-0	-55 C	125 °C	Gold	0.067 in	1.7 mm	0.031 in	0.79 mm	Beryllium Copper	0.025 in	0.64 mm	3.18 mm	0.125 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	10 Áin	0.25 Ám	2.16 mm	0.085 "

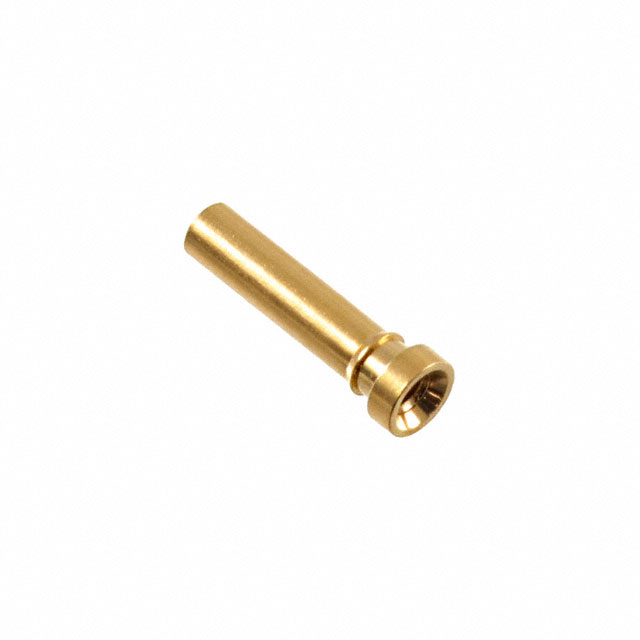

Mill-Max Manufacturing Corp. 5650-0-19-15-16-27-10-0	-55 C	125 °C	Gold	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	7.49 mm	0.295 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	30 Áin	0.76 Ám	2.16 mm	0.085 "
Mill-Max Manufacturing Corp. 5650-0-19-80-16-80-10-0	-55 C	125 °C	Tin	0.067 in	1.7 mm	0.031 in	0.79 mm	Beryllium Copper	0.025 in	0.64 mm	3.18 mm	0.125 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	200 Áin	5.08 Ám	2.16 mm	0.085 "
Mill-Max Manufacturing Corp. 5650-0-19-01-16-01-10-0	-55 C	125 °C	Tin-Lead	0.067 in	1.7 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	7.49 mm	0.295 in	Press-Fit	0.86 mm	0.034 "	0.022 "	0.56 mm	No Tail	0.295 in	7.49 mm	200 Áin	5.08 Ám	2.16 mm	0.085 "
