ESR Series

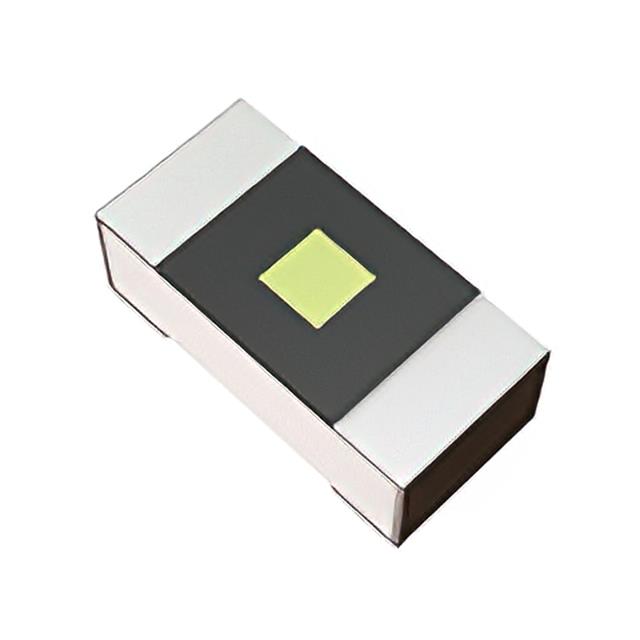

2012(0805)Size, Anti-surge Chip Resistors (AEC-Q200 Qualified)

Catalog

2012(0805)Size, Anti-surge Chip Resistors (AEC-Q200 Qualified)

...

Part	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Resistance	Power (Watts)	Power (Watts)	Features	Composition	Power (Watts) [Min]	Power (Watts) [Max]	Size / Dimension [y]	Package / Case	Height - Seated (Max)	Power (Watts)
Rohm Semiconductor ESR10EZPF24R0	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	100 ppm/°C	0805	0.026 in	0.65 mm	1 %	2	155 C	-55 C	0805	24 Ohms	0.5 W	0.5 W	Automotive AEC-Q200 Pulse Withstanding	Thick Film
Rohm Semiconductor ESR10EZPJ362	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	200 ppm/°C	0805	0.026 in	0.65 mm	5 %	2	155 C	-55 C	0805	3.6 kOhms	0.4 W		Automotive AEC-Q200 Pulse Withstanding	Thick Film	2 W	5 W
Rohm Semiconductor ESR10EZPJ185	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	200 ppm/°C	0805	0.026 in	0.65 mm	5 %	2	155 C	-55 C	0805	1.8 MOhms	0.4 W		Automotive AEC-Q200 Pulse Withstanding	Thick Film	2 W	5 W
Rohm Semiconductor ESR10EZPF4702	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	100 ppm/°C	0805	0.026 in	0.65 mm	1 %	2	155 C	-55 C	0805	47000 Ohms	0.4 W		Automotive AEC-Q200 Pulse Withstanding	Thick Film	2 W	5 W
Rohm Semiconductor ESR03EZPJ474	AEC-Q200	1.6 mm		0.031 in	0.063 "	200 ppm/°C	0603	0.022 in	0.55 mm	5 %	2	155 C	-55 C		470 kOhms	0.25 W	0.25 W	Automotive AEC-Q200 Pulse Withstanding	Thick Film			0.8 mm	1608 Metric
Rohm Semiconductor ESR01MZPJ390	AEC-Q200	1 mm	0.5 mm	0.02 in	0.039 "	200 ppm/°C	0402 (1005 Metric)	0.016 in		5 %	2	155 C	-55 C	0402	39 Ohms	0.2 W	0.2 W	Automotive AEC-Q200 Pulse Withstanding	Thick Film					0.4 mm
Rohm Semiconductor ESR18EZPF1R20	AEC-Q200	3.2 mm	1.6 mm	0.063 "	0.126 "	100 ppm/°C	1206 (3216 Metric)	0.026 in	0.65 mm	1 %	2	155 C	-55 C	1206	1.2 Ohms	0.75 W		Automotive AEC-Q200 Pulse Withstanding	Thick Film						3/4W
Rohm Semiconductor ESR10EZPF2942	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	100 ppm/°C	0805	0.026 in	0.65 mm	1 %	2	155 C	-55 C	0805	29.4 kOhms	0.4 W		Automotive AEC-Q200 Pulse Withstanding	Thick Film	2 W	5 W
Rohm Semiconductor ESR18EZPF3322	AEC-Q200	3.2 mm	1.6 mm	0.063 "	0.126 "	100 ppm/°C	1206 (3216 Metric)	0.026 in	0.65 mm	1 %	2	155 C	-55 C	1206	33.2 kOhms	0.5 W	0.5 W	Automotive AEC-Q200 Pulse Withstanding	Thick Film
Rohm Semiconductor ESR10EZPF9763	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	100 ppm/°C	0805	0.026 in	0.65 mm	1 %	2	155 C	-55 C	0805	976 kOhms	0.4 W		Automotive AEC-Q200 Pulse Withstanding	Thick Film	2 W	5 W

Description

ROHM's anti-surge chip resistors have greatly improved anti-surge characteristics with their unique resistive element structure. The 1005 size guarantees a withstand voltage of 2kV, the 1608/2012 size guarantees a 3kV withstand voltage, and the 3225 size guarantees a 5kV withstand voltage. They are ideal for circuits that require even higher reliability.
