WD2F144W Series

Catalog

CONN RCPT 144POS SMD GOLD

Part	Pitch	Pitch	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Mounting Type	Features	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]
JAE Electronics WD2F144WB3R300	0.02 "	0.5 mm	4	144	Gold	10.39 mm	0.409 in	0.3 Ám	11.8 Áin	Receptacle Center Strip Contacts	16.7 mm	Surface Mount	Board Guide	2
JAE Electronics WD2F144WB2R250	0.02 "	0.5 mm	4	144	Gold			0.3 Ám	11.8 Áin	Receptacle Center Strip Contacts	20.2 mm	Surface Mount	Board Guide	2	13.89 mm	0.547 in

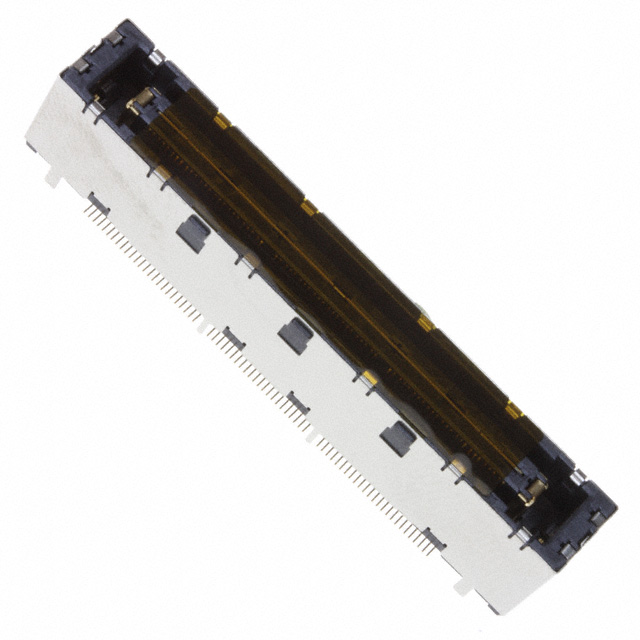

JAE Electronics WD2F144WB1R300	0.02 "	0.5 mm	4	144	Gold	11.6 mm	0.457 in	0.3 Ám	11.8 Áin	Receptacle Center Strip Contacts	17.9 mm	Surface Mount	Board Guide	2

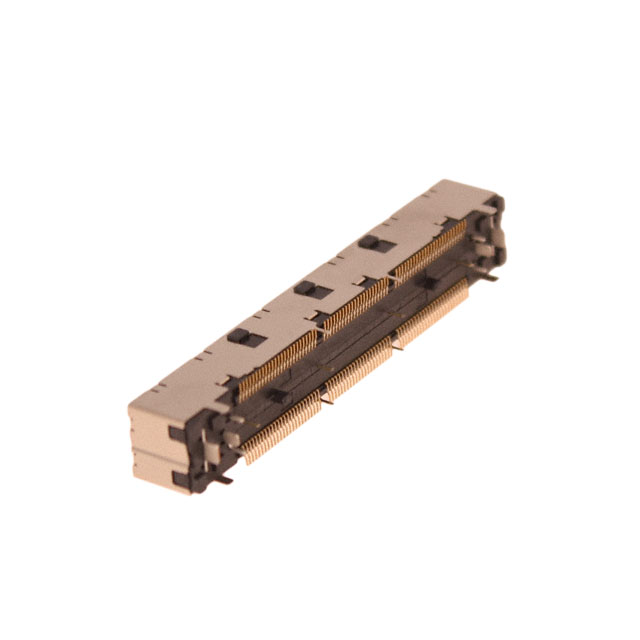

JAE Electronics WD2F144WB4R400	0.02 "	0.5 mm	4	144	Gold			0.3 Ám	11.8 Áin	Receptacle Center Strip Contacts	14 mm	Surface Mount	Board Guide	2	7.7 mm	0.303 in
