627-11W Series
Manufacturer: EDAC Inc.
Beta
⌘K

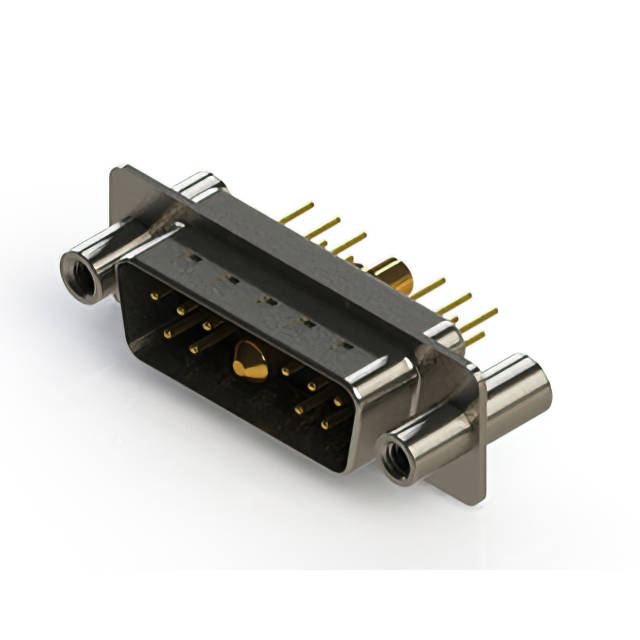

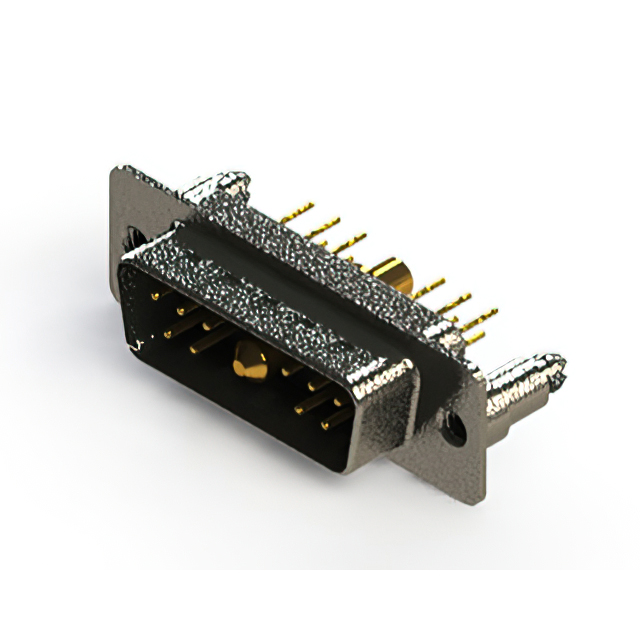

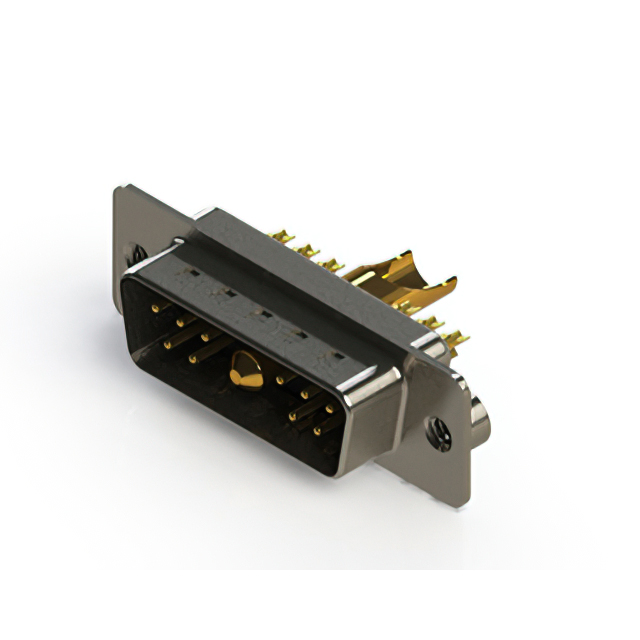

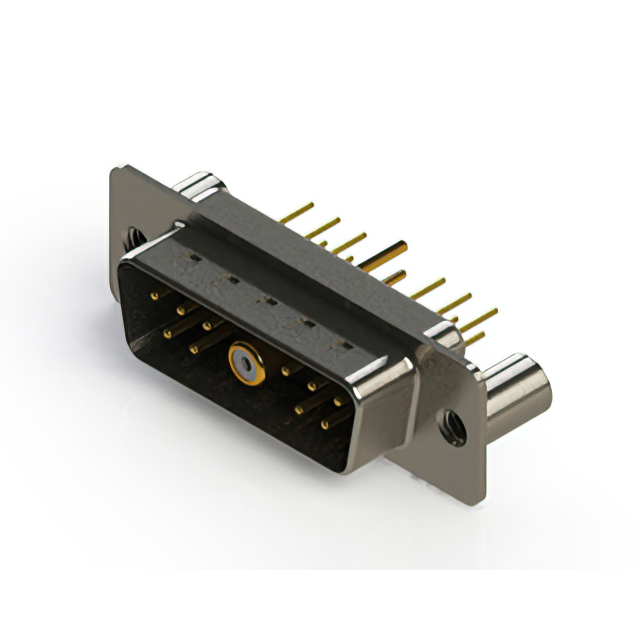

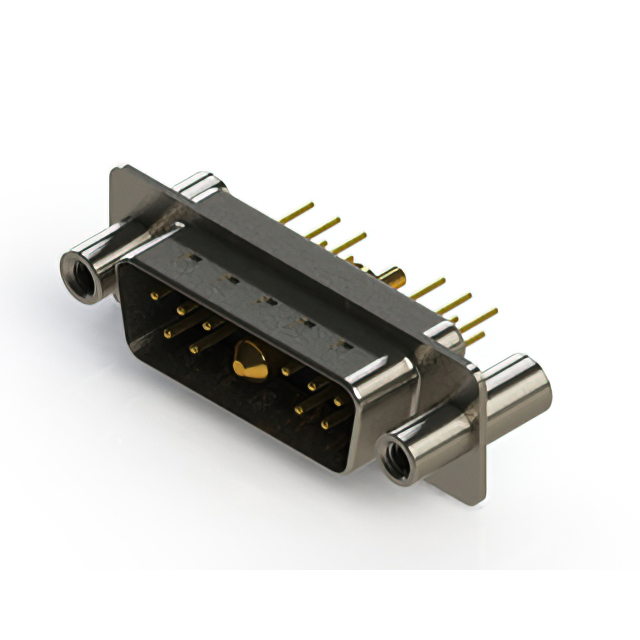

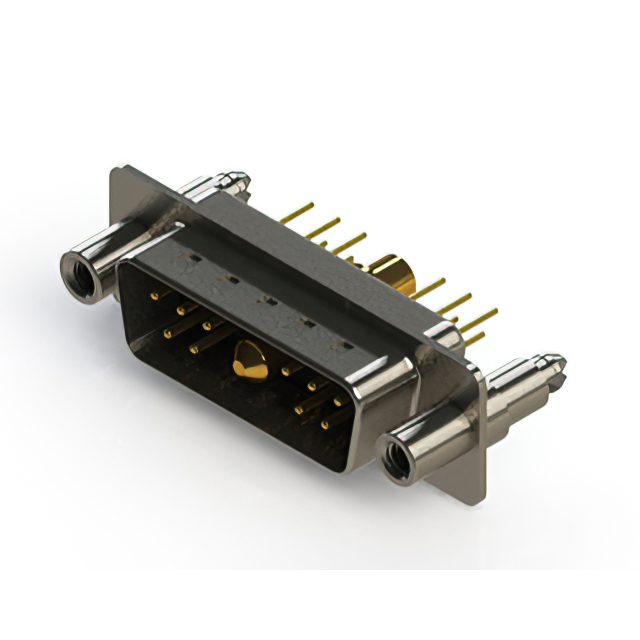

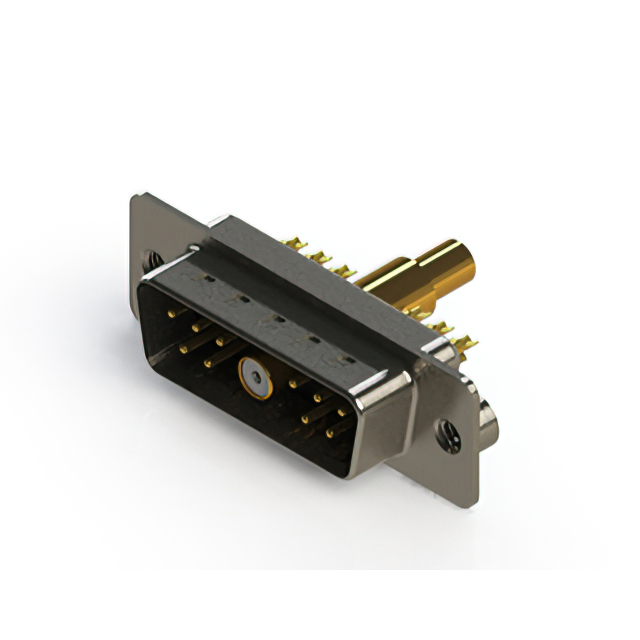

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-11W1, PLUG, 11 CONTACTS, 10 SIGNAL, 1 POWER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Dielectric Material | Color | Contact Type | Connector Style | Termination | Material Flammability Rating | Mounting Type | Features | Number of Rows [custom] | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shell Size, Connector Layout | Current Rating (Amps) | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | 5 A 30 A | M3 | |||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | UL94 V-0 | Panel Mount | Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | Gold | 2 (DA A) - 11C1 11W1 | 5 A 40 A | Board Side (M3) | Nickel Plated Steel | Flash | ||||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | Solder | UL94 V-0 | Through Hole | Board Lock Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | 5 A 30 A | Board Side (4-40) | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | 5 A 40 A | Board Side (M3) | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Coax Signal | Combo D-Sub | UL94 V-0 | Panel Mount | Grounding Indents Shielded | 2 | Plug Male Pins | Gold | 2 (DA A) - 11C1 11W1 | Board Side (M3) | Nickel Plated Steel | Flash | 1 | 10 | |||||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | M3 | 10A 5A | |||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Board Lock Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | 5 A 40 A | M3 | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Coax Signal | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Grounding Indents Shielded | 2 | Plug Male Pins | Gold | 2 (DA A) - 11C1 11W1 | Board Side (4-40) | Nickel Plated Steel | Flash | 1 | 10 | ||||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Coax Signal | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Grounding Indents Shielded | 2 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | Board Side (M3) | Nickel Plated Steel | 1 | 10 | |||||
 EDAC Inc. | -55 C | 125 °C | 125 VDC | Copper Alloy | Polyester Thermoplastic | Black | Signal and Power | Combo D-Sub | Solder | UL94 V-0 | Panel Mount Through Hole | Grounding Indents Shielded | 2 | 10 | 1 | Plug Male Pins | 30 Áin | 0.76 Ám | Gold | 2 (DA A) - 11C1 11W1 | 5 A 40 A | Board Side (M3) | Nickel Plated Steel |
